NEC PA653UL Projector
NEC PA653UL Key Features
- LCD Display Technology
- 6500 Lumens Colour Light Output
- 0 Optional Lenses (Click Here)
- WUXGA 1920*1200 Native Resolution
- 20,000 hour lamp life (typical)
- 2,500,000:1 Contrast Ratio
- 18.2kg (40.1lb.)
- Native Widescreen
- Lens Shift
- Seamless Switching
- Horizontal & Vertical Keystone Correction
- Direct Power Off
- Mouse Emulation Remote
- Portrait Mode
- HDBaseT
- Picture-In-Picture
- Picture-and-Picture
- Interchangeable Lens System
- Lens-centred Design
- Logo capture and display
- PIN Code Security
- Edge Blending
- DICOM Simulation Mode
- 3D Projection Ready
- Stacking Function
- Monitor Out
- Network Control
- CAD, engineering and precision presentations
- Church Projectors
- Conference rooms (50 - 150 people)
- Exhibitions and large venues
- Film Societies and Community Cinema
- Lecture Theatres
- LED/Laser
- Medical Imaging
- Museums
- Portrait Mode Applications
- School Halls
NEC PA653UL Specifications
Categories | HDBaseT Interchangeable Lens Lens Shift Installation HD LED/Laser HD |
Manufacturer | NEC (Click for rest of range) |
NEC PA653UL Optical Features |
|
System | 3 * LCD |
Resolution | WUXGA (1920*1200) |
Aspect Ratio | 16:10 |
Lumens | 6,500 |
ECO Mode Lumens | 5,200 |
Colour Light Output | 6500 Lumens |
Eco Mode CLO | 5200 Lumens |
Contrast | 2,500,000:1 |
Lamp | Laser light source |
Lamp Life | 20,000hrs. (20,000hrs. ECO mode) |
Interchangeable | Yes |
Image Size | 30"-500" diagonal |
Lens Shift | Vertical: +10/-50% Horizontal: 10% |
Keystone |
±40° (Vertical) |
±40° (Horizontal) | |
NEC PA653UL Compatibility |
|
Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA, 4k |
Video Resolutions | PAL, SECAM, NTSC, 4k, 1080p, 1080i, 720p |
Horizontal Freq. | 15-100kHz |
Vertical Freq. | 15-153Hz |

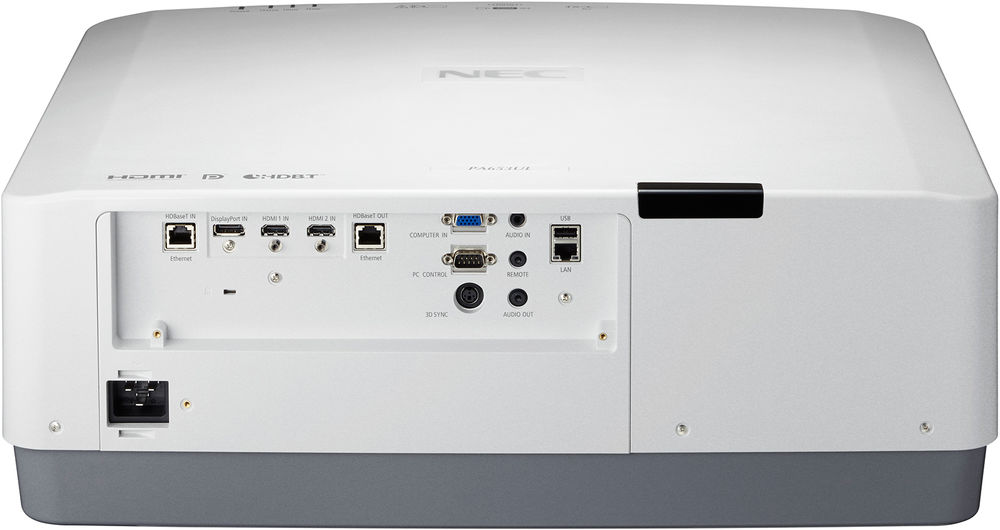

NEC PA653UL Terminals |
|
HDMI | 2 |
DisplayPort | 1 |
RGBHV (15-pin HD) | 1 |
Monitor Out | Yes |
Audio In | 2 |
Audio Out | 1 |
USB | 1 |
RS-232 | 1 |
HDBaseT | 1 |
Network Ready | Yes |
NEC PA653UL General |
|
Speakers | No |
Remote Control | NEC PA653UL + Mouse Emulation |
Noise | 39db (33db ECO mode) |
Dimensions | 580*208*494mm (W*H*D) |
Weight | 18.20kg |
Power Supply | 100-240 V AC; 50 - 60 Hz |
Power Consumption | 613Watts |
Manufacturers Warranty | 3 year loan support |
Light Source Warranty | 3 year loan support |
NEC PA653UL Package Contents |
|
Accessories | IR Remote Control (RD - 466E); Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM |
Ivojo Multimedia are approved NEC dealers and supply only UK products with full UK warranties.
NEC PA653UL Optional Lenses
Description | Price | Inc. VAT |
NEC NP40ZL Motorized Ultra Short Throw Zoom Lens | £1473 | £1767.60 |
NEC NP41ZL Motorized Mid to Semi Long Throw Lens | £784 | £940.80 |
NEC NP42ZL Mid to Long Throw Zoom Lens | Discontinued |
NEC PA653UL Alternatives
Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
Epson EB-PU1006W | LCD | 6000 | 15.4 | £3663 | £4395.60 |
Epson EB-PU1007B | LCD | 7000 | 15.4 | £4464 | £5356.80 |
Epson EB-PU1007W | LCD | 7000 | 15.4 | £4463 | £5355.60 |
Barco G60-W7 | DLP | 6300 | 16.9 | £6253 | £7503.60 |
Barco G60-W7-WH | DLP | 6300 | 16.9 | £5211 | £6253.20 |
Christie DWU630-GS-BK | DLP | 6750 | 15.85 | £4263 | £5115.60 |
Christie DWU630-GS-WH | DLP | 6750 | 15.85 | £4263 | £5115.60 |
Fujifilm FP-Z6000-B | DLP | 6000 | 17.5 | £13990 | £16788.00 |
Panasonic PT-FRZ60BEJ | DLP | 6000 | 16 | £4289 | £5146.80 |
Panasonic PT-FRZ60WEJ | DLP | 6000 | 16 | £4289 | £5146.80 |
