NEC P603X Projector

No Longer Available

Click for Current NEC range

NEC P603X Key Features

  • LCD Display Technology
  • 6000 Lumens Colour Light Output
  • XGA 1024*768 Native Resolution
  • 4,000 hour lamp life (typical)
  • 20,000:1 Contrast Ratio
  • 4.7kg (10.4lb.)
  • Wide zoom range for flexible placement
  • Lens Shift
  • Horizontal & Vertical Keystone Correction
  • Direct Power Off
  • Mouse Emulation Remote
  • Logo capture and display
  • PIN Code Security
  • DICOM Simulation Mode
  • Monitor Out
  • Network Control

NEC P603X Downloads


NEC P603X Specifications

Categories Lens Shift
Office / Desktop
Short Throw Zoom
Manufacturer NEC (Click for rest of range)

NEC P603X Optical Features

System 3 * LCD
Resolution XGA (1024*768)
Aspect Ratio 4:3
Lumens 6,000
ECO Mode Lumens 3,600
Colour Light Output 6000 Lumens
Eco Mode CLO 3600 Lumens
Contrast 20,000:1
Lamp 330W UHP AC
Lamp Life 4,000hrs. (8,000hrs. ECO mode)
Interchangeable No
Zoom Range 1.7x
Throw Ratio 1.3 - 2.2:1
Image Size 30"-300" diagonal
Throw Distance 0.80-2.20m
Throw distance for 100" image 2.64 - 4.47m
Lens Shift Vertical: +50%
Horizontal: 15%
KeystoneCorrection ±30° (Vertical)
±20° (Horizontal)

NEC P603X Compatibility

Computer Resolutions VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA
Video Resolutions PAL, SECAM, NTSC, 1080p, 1080i, 720p
Horizontal Freq. 15-100kHz
Vertical Freq. 50-120Hz

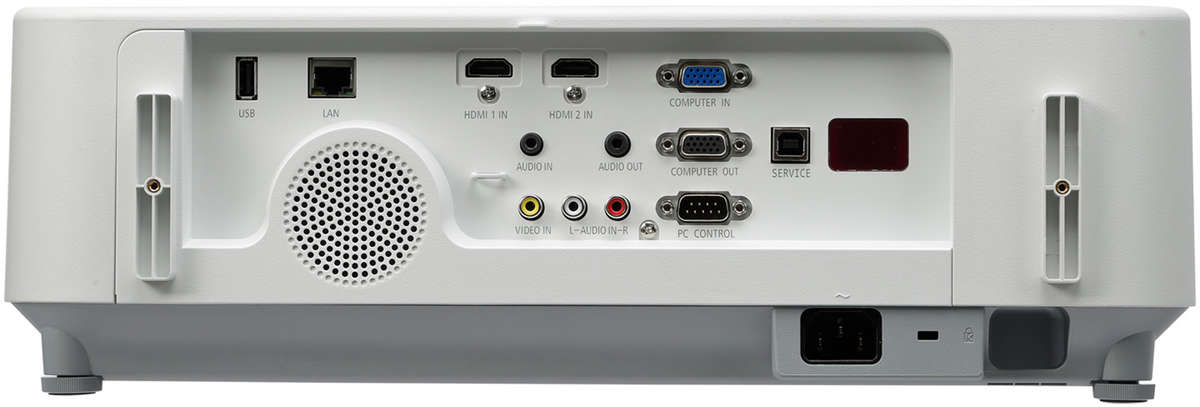

NEC P603X Terminals

HDMI 2
RGBHV (15-pin HD) 1
Composite 1
Monitor Out Yes
Audio In 2
Audio Out 1
USB 2
RS-232 1
Network Ready Yes

NEC P603X General

Speakers No
Remote Control NEC P603X + Mouse Emulation
Noise 37db (34db ECO mode)
Dimensions 420*133*322mm (W*H*D)
Weight 4.70kg
Power Supply 100-240V AC; 50-60Hz
Power Consumption 414Watts
Manufacturers Warranty 3 years pan-European loan support
Light Source Warranty 6 months/1000 hours (whichever first)

NEC P603X Package Contents

Accessories IR Remote Control (RD-448E)
Mini D-SUB Signal Cable (1.8 m)
Power Cord (1.8 m)
Projector; Quick Setup Guide
Users Manual
Utility software
