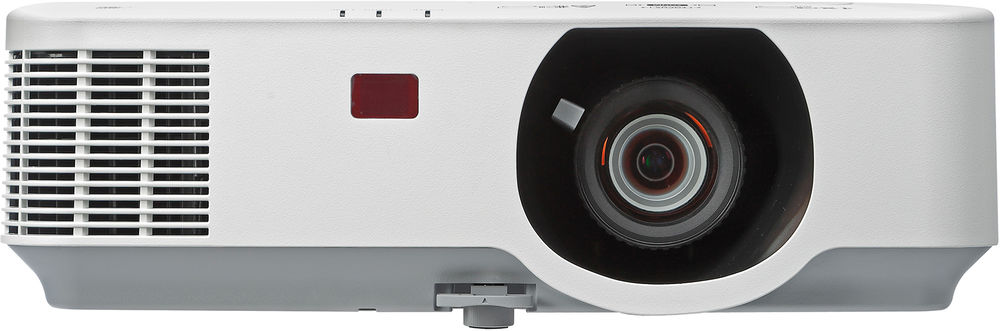

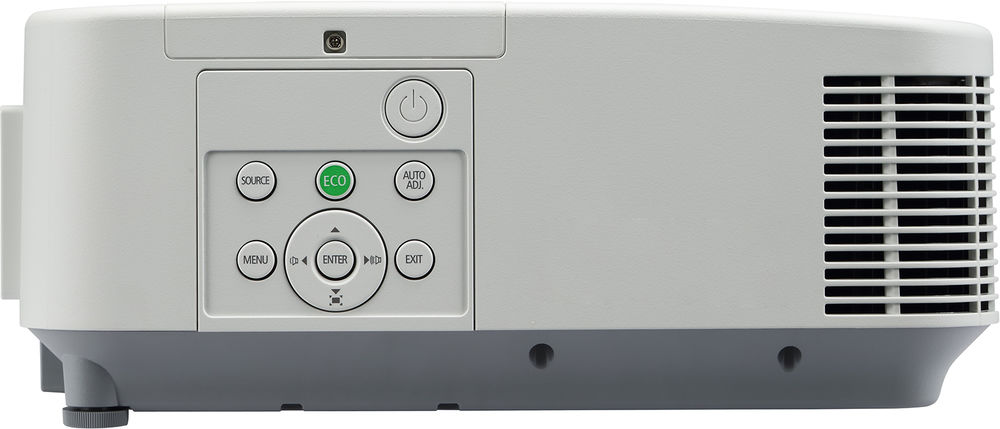

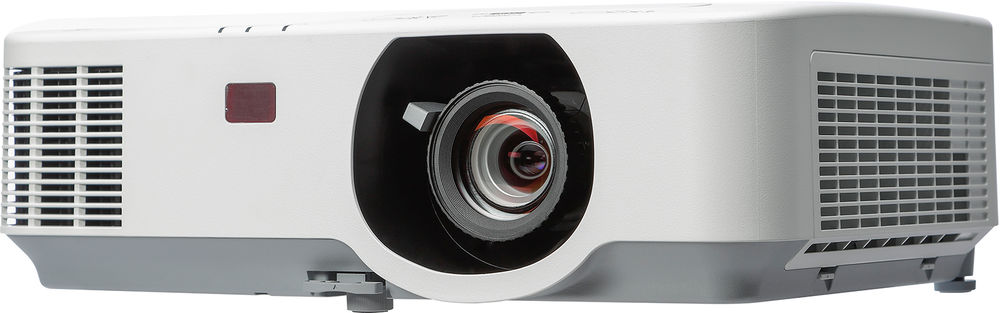

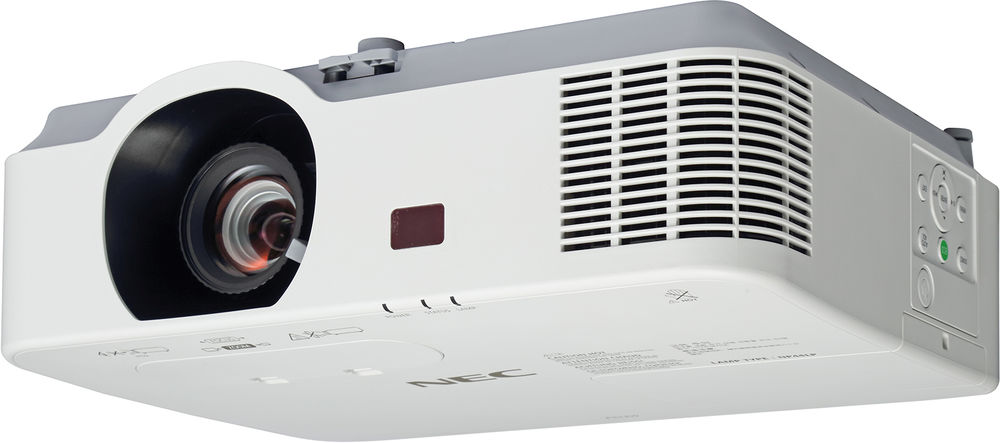

NEC P554W Projector
NEC P554W Key Features
- LCD Display Technology
- 5500 Lumens Colour Light Output
- Wide XGA Resolution
- 4,000 hour lamp life (typical)
- 20,000:1 Contrast Ratio
- 4.8kg (10.6lb.)
- Wide zoom range for flexible placement
- Native Widescreen
- Lens Shift
- Horizontal & Vertical Keystone Correction
- Direct Power Off
- Mouse Emulation Remote
- HDBaseT
- Logo capture and display
- PIN Code Security
- DICOM Simulation Mode
- Monitor Out
- Network Control
NEC P554W Downloads
NEC P554W Specifications
| Categories | HDBaseT Lens Shift Office / Desktop Short Throw Zoom |
| Manufacturer | NEC (Click for rest of range) |
NEC P554W Optical Features |
|
| System | 3 * LCD |
| Resolution | WXGA (1280*800) |
| Aspect Ratio | 16:10 |
| Lumens | 5,500 |
| ECO Mode Lumens | 3,300 |
| Colour Light Output | 5500 Lumens |
| Eco Mode CLO | 3300 Lumens |
| Contrast | 20,000:1 |
| Lamp | 330W UHP AC |
| Lamp Life | 4,000hrs. (8,000hrs. ECO mode) |
| Interchangeable | No |
| Zoom Range | 1.8x |
| Throw Ratio | 1.2 - 2.1:1 |
| Image Size | 30"-300" diagonal |
| Throw Distance | 0.80-13.50m |
| Throw distance for 100" image | 2.58 - 4.52m |
| Lens Shift | Vertical: 0-55% Horizontal: 15% |
| Keystone |
±30° (Vertical) |
| ±15° (Horizontal) | |
NEC P554W Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA |
| Video Resolutions | PAL, SECAM, NTSC, 1080p, 1080i, 720p |
| Horizontal Freq. | 15-100kHz |
| Vertical Freq. | 50-120Hz |

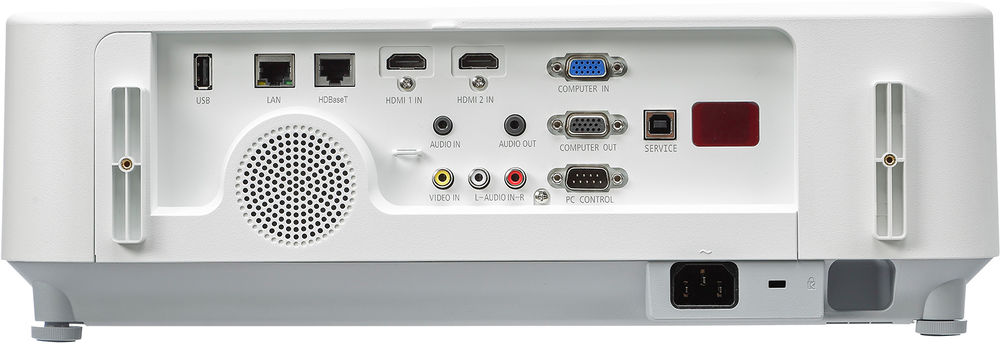

NEC P554W Terminals |
|
| HDMI | 2 |
| RGBHV (15-pin HD) | 1 |
| Composite | 1 |
| Monitor Out | Yes |
| Audio In | 2 |
| Audio Out | 1 |
| USB | 2 |
| RS-232 | 1 |
| HDBaseT | 1 |
| Network Ready | Yes |
NEC P554W General |
|
| Speakers | 20W mono |
| Remote Control | NEC P554W + Mouse Emulation |
| Noise | 37db (34db ECO mode) |
| Dimensions | 420*133*322mm (W*H*D) |
| Weight | 4.80kg |
| Power Supply | 100-240V AC; 50-60Hz |
| Power Consumption | 431Watts |
| Manufacturers Warranty | 3 years pan-European loan support |
| Light Source Warranty | 6 months/1000 hours (whichever first) |
NEC P554W Package Contents |
|
| Accessories | IR Remote Control (RD-448E); Mini D-SUB Signal Cable (1.8 m); Power Cord (1.8 m); Projector; Quick Setup Guide; Users Manual; Utility software |
Ivojo Multimedia are approved NEC dealers and supply only UK products with full UK warranties.
NEC P554W Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case 05 Hard case for projectors weighing 3-5kg | £133.00 | £159.60 |
NEC P554W Alternatives
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| Eiki EK-309W | LCD | 6000 | 4.5 | £1462 | £1754.40 |
