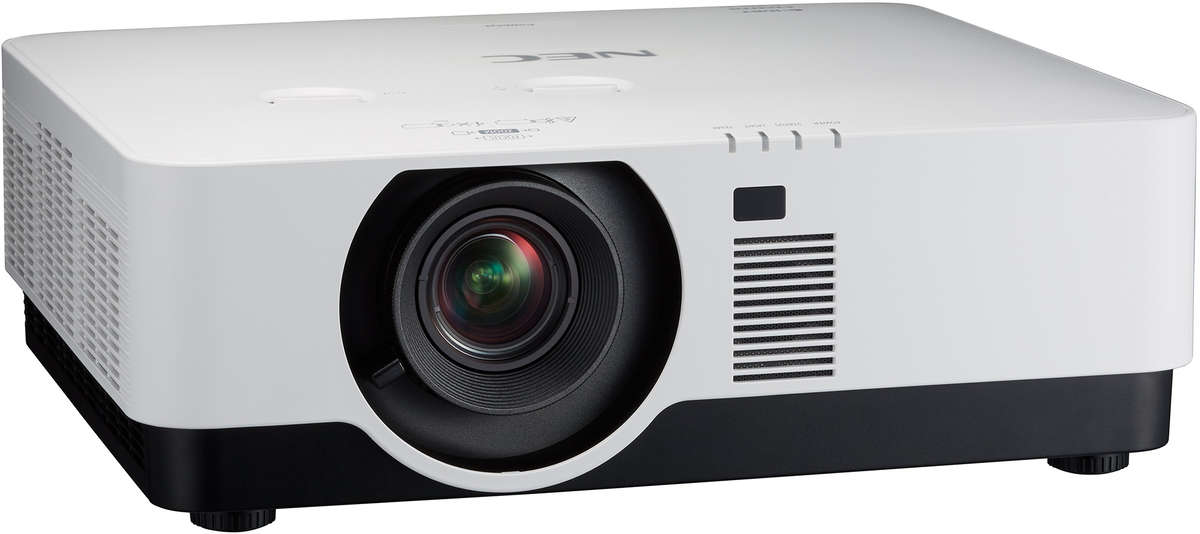

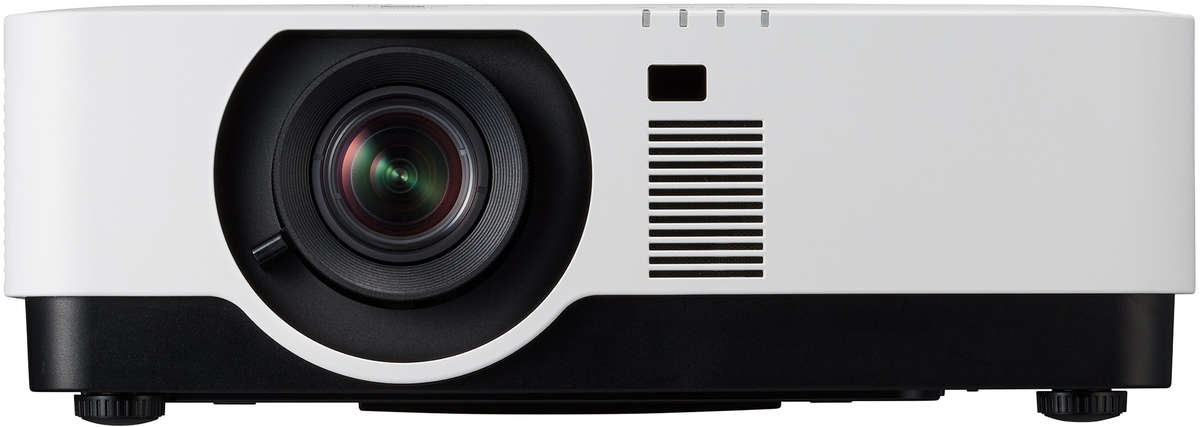

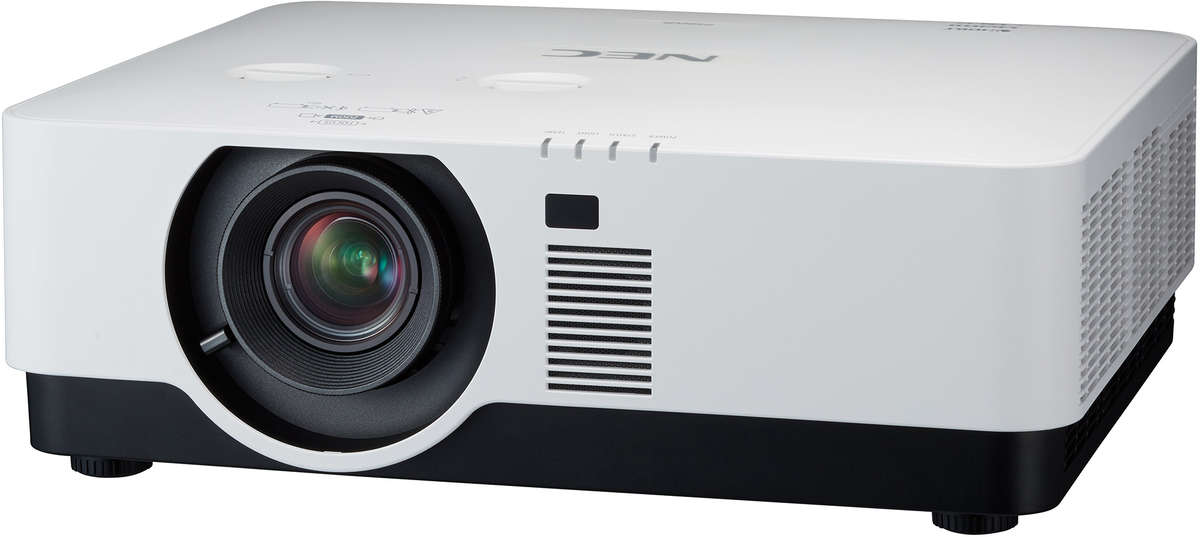

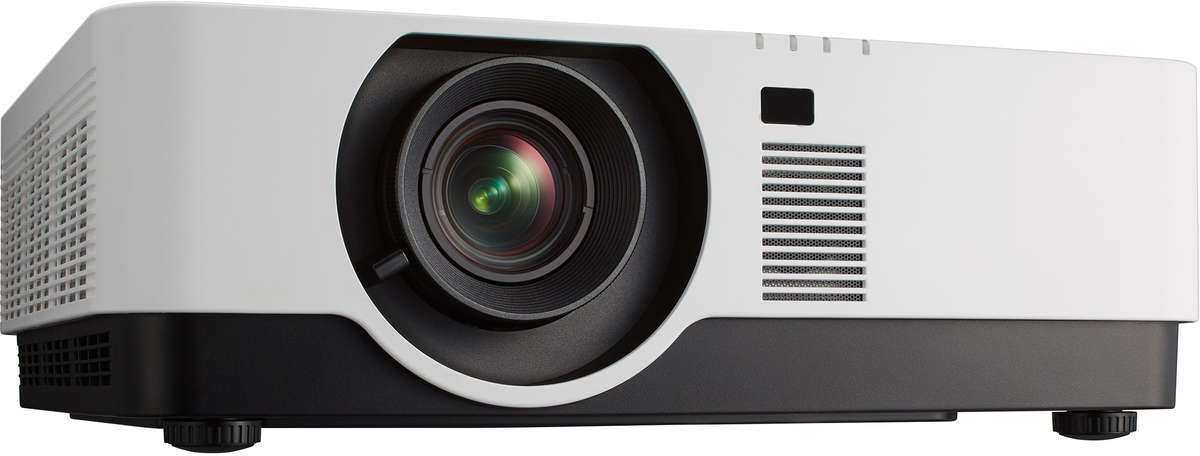

NEC P506QL Projector
NEC P506QL Key Features
- DLP Display Technology
- 5,000 Lumens
- UHD 3840*2160 Native Resolution
- 20,000 hour lamp life (typical)
- 500,000:1 Contrast Ratio
- 11.5kg (25.4lb.)
- Wide zoom range for flexible placement
- Native Widescreen
- Lens Shift
- Mouse Emulation Remote
- Portrait Mode
- HDBaseT
- Can Be Installed Vertically
- PIN Code Security
- DICOM Simulation Mode
- 3D Projection Ready
- Network Control
NEC P506QL Downloads
- Boardroom Projectors
- CAD, engineering and precision presentations
- Conference rooms (20 - 50 people)
- Home cinema and business dual use
- Horizontal Surface Projection
- LED/Laser
- Medical Imaging
- Museums
- Portrait Mode Applications
NEC P506QL Specifications
| Categories | HDBaseT Lens Shift Short Throw Zoom Installation HD LED/Laser HD |
| Manufacturer | NEC (Click for rest of range) |
NEC P506QL Optical Features |
|
| System | 1 * DMD |
| Resolution | UHD (3840*2160) |
| Aspect Ratio | 16:9 |
| Lumens | 5,000 |
| Contrast | 500,000:1 |
| Lamp | Laser Light Source |
| Lamp Life | 20,000hrs. |
| Interchangeable | No |
| Zoom Range | 1.5x |
| Throw Ratio | 1.13 - 1.7:1 |
| Image Size | 50"-310" diagonal |
| Throw Distance | 1.60-8.00m |
| Throw distance for 100" image | 2.50 - 3.76m |
| Lens Shift | Horizontal: ±20, Vert. +60, -60 |
| Keystone |
±30° (Vertical) |
NEC P506QL Compatibility |
|
| Computer Resolutions | UHD, FHD, WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
| Video Resolutions | 4K, UHD, HD, 720p, PAL, SECAM, NTSC |

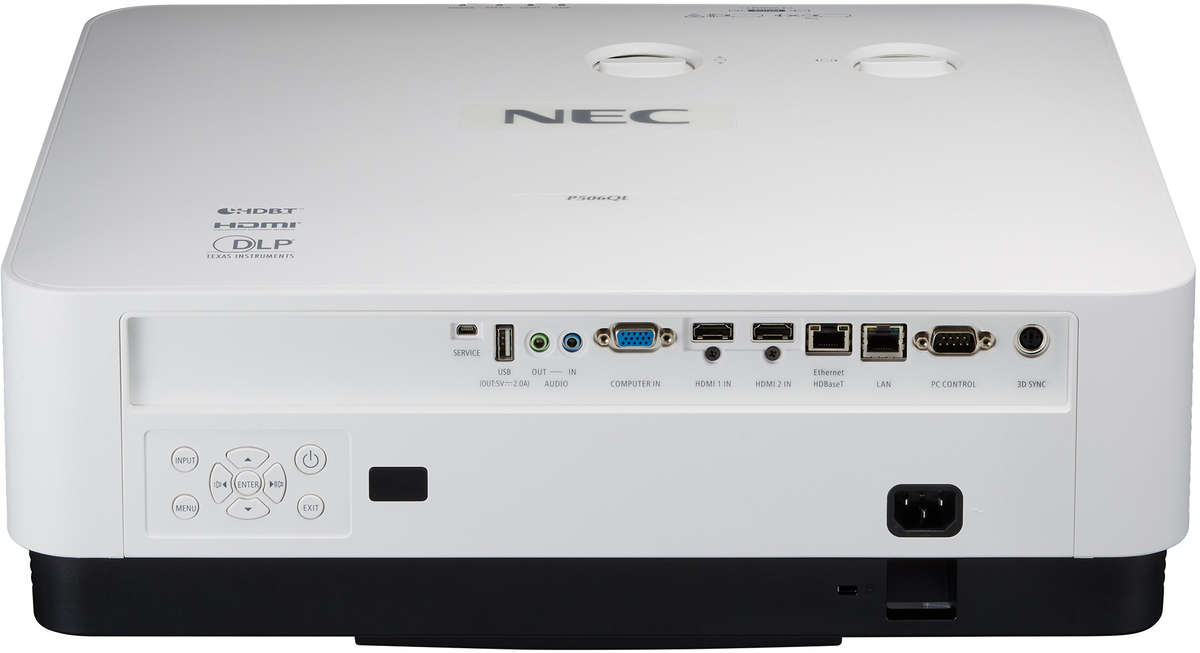

NEC P506QL Terminals |
|
| HDMI | 2 |
| RGBHV (15-pin HD) | 1 |
| Audio In | 2 |
| USB | 2 |
| RS-232 | 1 |
| HDBaseT | 1 |
| Network Ready | Yes |
NEC P506QL General |
|
| Speakers | 10W Mono |
| Remote Control | NEC P506QL + Mouse Emulation |
| Noise | 35db (32db ECO mode) |
| Dimensions | 480*158*400mm (W*H*D) |
| Weight | 11.50kg |
| Power Supply | 100-240 V AC; 50 - 60 Hz |
| Power Consumption | 580Watts |
| Manufacturers Warranty | 3 year loan support |
| Light Source Warranty | 3 years/10000 hours (whichever first) |
NEC P506QL Package Contents |
|
| Accessories | 2x AAA Batteries; IR Remote Control (477E); Mini D-SUB Signal Cable (1.8 m); Power Cord (1.8 m); Projector; Quick Setup Guide; Security Sticker; Users Manual; Utility software |
Ivojo Multimedia are approved NEC dealers and supply only UK products with full UK warranties.
NEC P506QL Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case 25 Hard case for projectors weighing 10-25kg | £167.00 | £200.40 |
