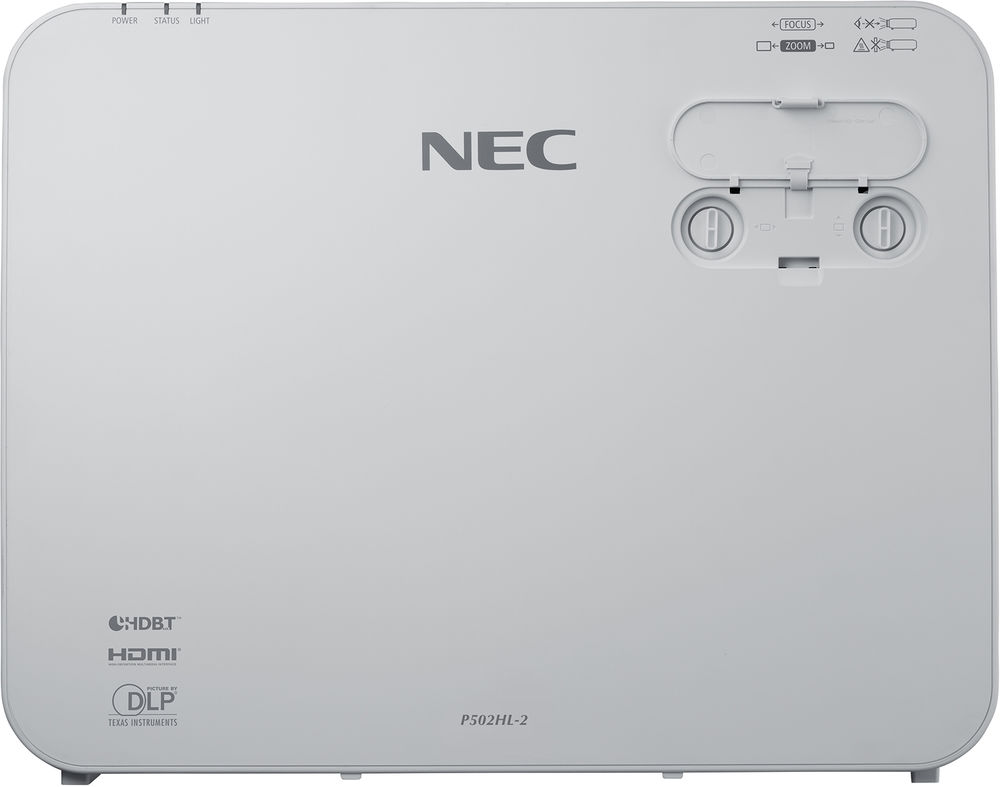

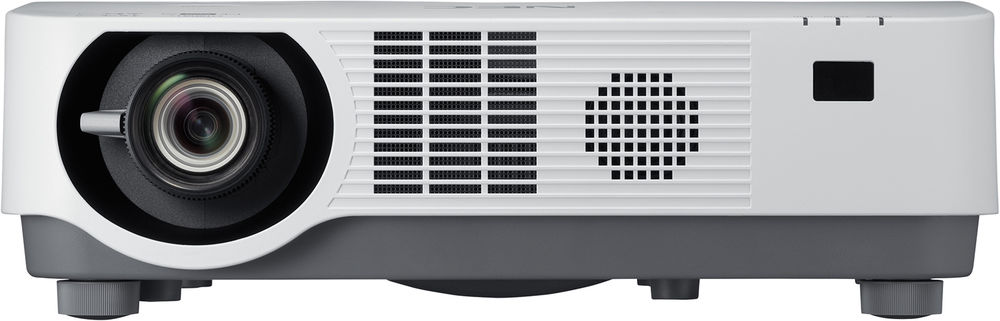

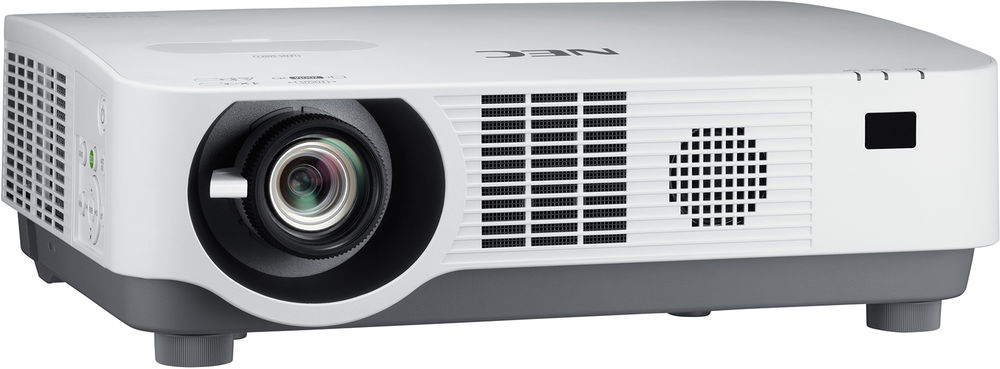

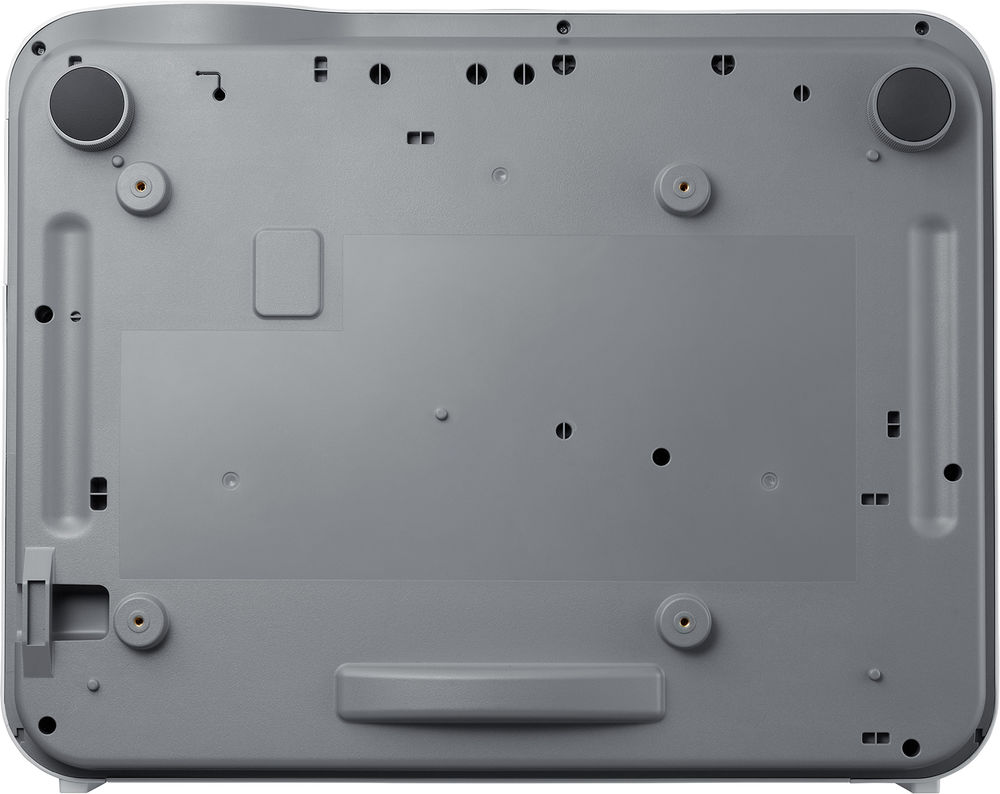

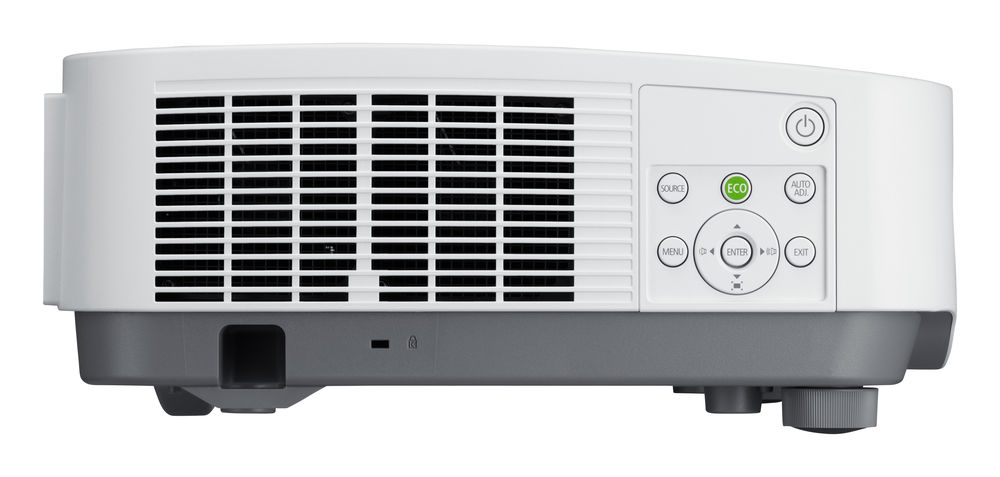

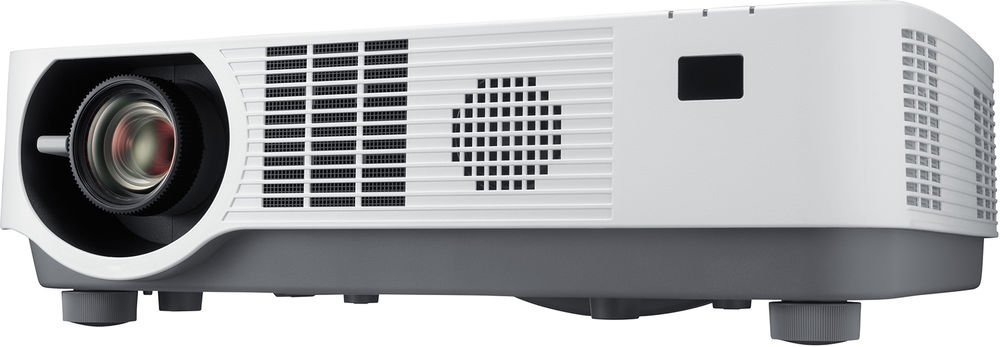

NEC P502HL-2 Projector
NEC P502HL-2 Key Features
- DLP Display Technology
- 5,000 Lumens
- 1080P 1920*1080 Native Resolution
- 20,000 hour lamp life (typical)
- 15,000:1 Contrast Ratio
- 8.8kg (19.4lb.)
- Wide zoom range for flexible placement
- Native Widescreen
- Lens Shift
- PC Free Presentations
- Horizontal & Vertical Keystone Correction
- Direct Power Off
- Display Via USB to PC Connection
- Mouse Emulation Remote
- Portrait Mode
- HDBaseT
- Can Be Installed Vertically
- Logo capture and display
- PIN Code Security
- Quick Power On
- DICOM Simulation Mode
- 3D Projection Ready
- sRGB Colour Mode
- Monitor Out
- Network Control
NEC P502HL-2 Downloads
- Boardroom Projectors
- Church Projectors
- Conference rooms (20 - 50 people)
- Home cinema and business dual use
- Horizontal Surface Projection
- LED/Laser
- Medical Imaging
- Museums
- PC Free Presentations
- Portrait Mode Applications
NEC P502HL-2 Specifications
| Categories | HDBaseT PC Free Short Throw Zoom Installation HD LED/Laser HD |
| Manufacturer | NEC (Click for rest of range) |
NEC P502HL-2 Optical Features |
|
| System | 1 * 0.65" DMD |
| Resolution | 1080P (1920*1080) |
| Aspect Ratio | 16:9 |
| Lumens | 5,000 |
| Contrast | 15,000:1 |
| Lamp | Laser Light Source |
| Lamp Life | 20,000hrs. (20,000hrs. ECO mode) |
| Interchangeable | No |
| Zoom Range | 1.7x |
| Throw Ratio | 1.24 - 2.1:1 |
| Image Size | 30"-300" diagonal |
| Throw Distance | 0.80-14.20m |
| Throw distance for 100" image | 2.75 - 4.65m |
| Lens Shift | No |
| Keystone |
±30° (Vertical) |
| ±25° (Horizontal) | |
NEC P502HL-2 Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA |
| Video Resolutions | PAL, SECAM, NTSC, 1080p, 1080i, 720p |
| Horizontal Freq. | 15-100kHz |
| Vertical Freq. | 50-120Hz |

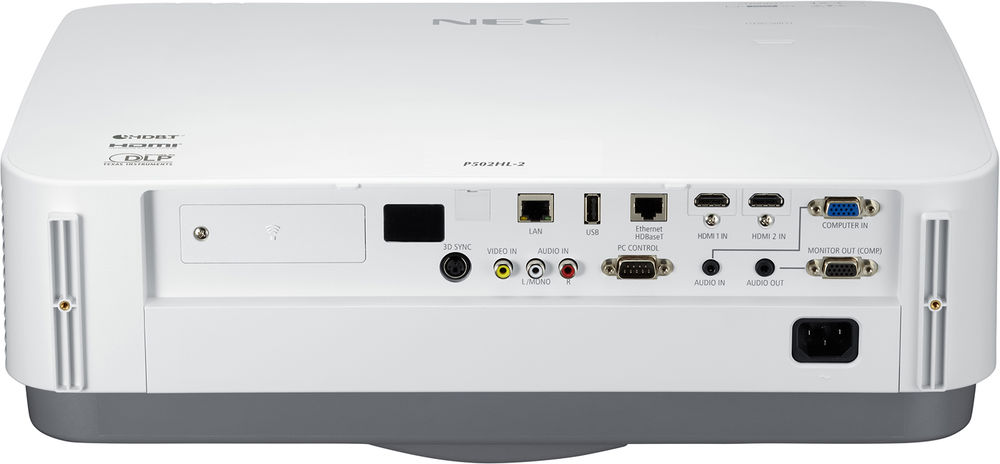

NEC P502HL-2 Terminals |
|
| HDMI | 2 |
| RGBHV (15-pin HD) | 1 |
| Composite | 1 |
| Monitor Out | Yes |
| Audio In | 2 |
| Audio Out | 1 |
| USB | 3 |
| RS-232 | 1 |
| HDBaseT | 1 |
| Network Ready | Yes |
NEC P502HL-2 General |
|
| Speakers | 20w Mono |
| Remote Control | NEC P502HL-2 + Mouse Emulation |
| Noise | 39db (31db ECO mode) |
| Dimensions | 469*137*365mm (W*H*D) |
| Weight | 8.80kg |
| Power Supply | 100-240V AC; 50-60Hz |
| Power Consumption | 442Watts |
| Manufacturers Warranty | 3 year pan-European loan support |
| Light Source Warranty | 3 years/10000 hours (whichever first) |
NEC P502HL-2 Package Contents |
|
| Accessories | IR Remote Control (RD-472E); Mini D-SUB Signal Cable (1.8 m); Power Cord (1.8 m); Projector; Quick Setup Guide; Security Sticker; Users Manual; Utility software |
Ivojo Multimedia are approved NEC dealers and supply only UK products with full UK warranties.
NEC P502HL-2 Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case 10 Hard case for projectors weighing 5-10kg | £153.00 | £183.60 |
NEC P502HL-2 Alternatives
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| Epson EB-1485Fi | LCD | 5000 | 9.3 | £2744 | £3292.80 |
| Epson EB-800F | LCD | 5000 | 9.4 | £2391 | £2869.20 |
| Epson EB-805F | LCD | 5000 | 9.4 | £2391 | £2869.20 |
