NEC ME383W

NEC ME383W Projector

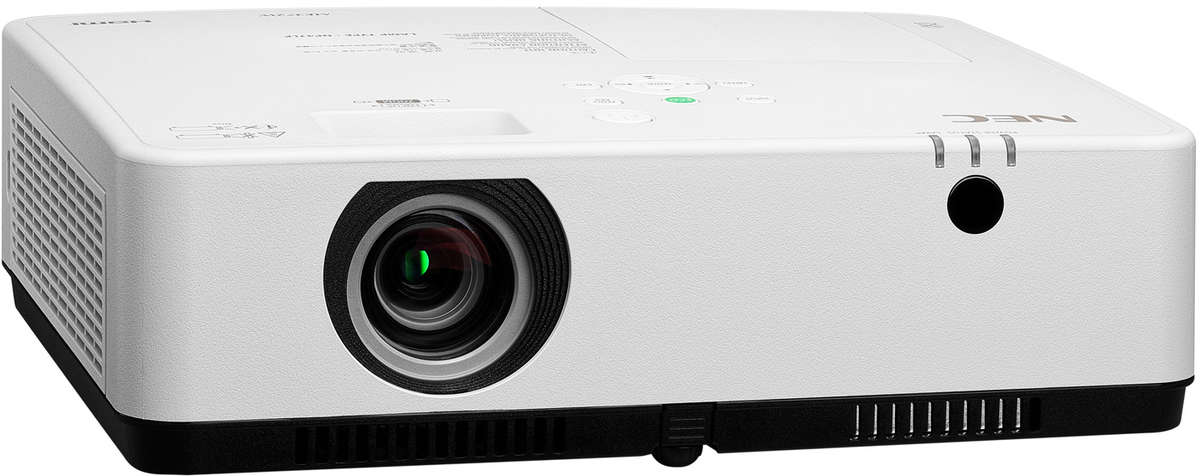

NEC ME383W 3800 Lumens WXGA projector product image. Click to enlarge.

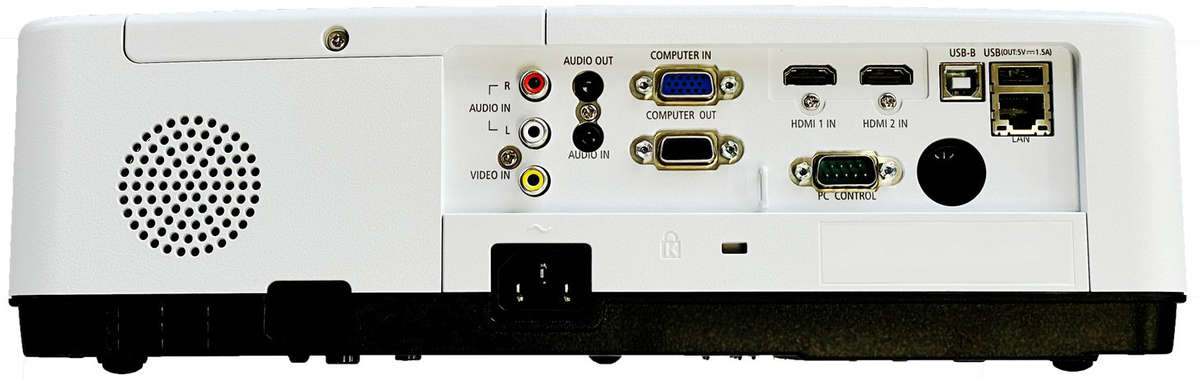

NEC ME383W 3800 Lumens WXGA projector connectivity (terminals) product image

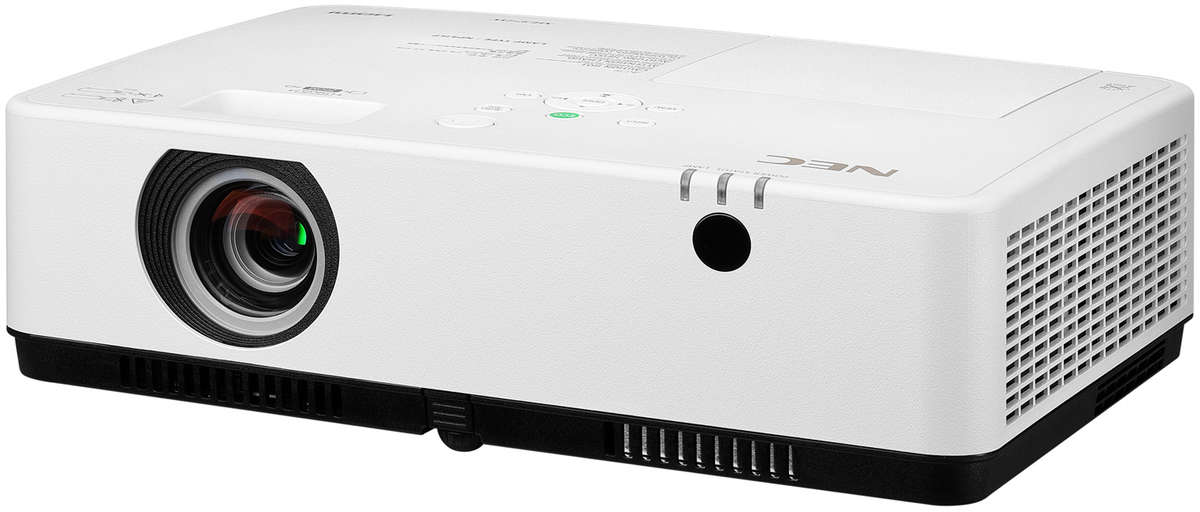

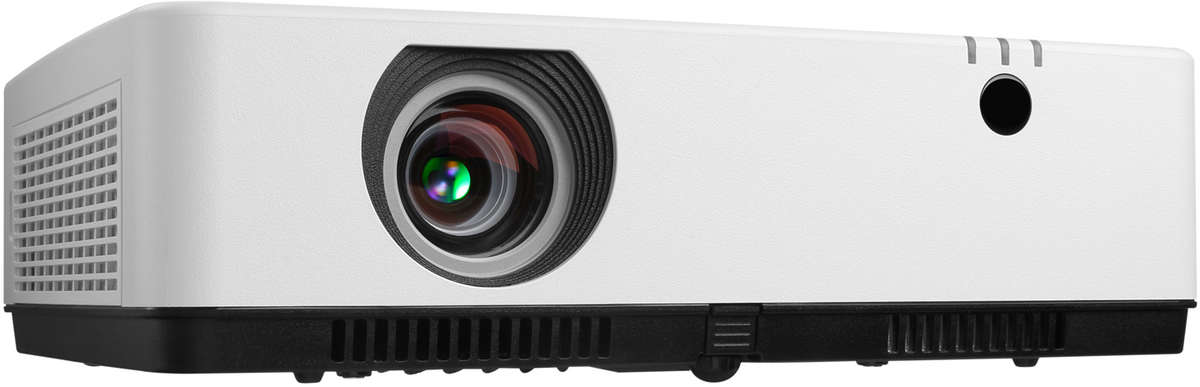

NEC ME383W 3800 Lumens WXGA projector product image

No Longer Available

Click for Current NEC range

NEC ME383W Key Features

LCD Display Technology
3800 Lumens Colour Light Output
Wide XGA Resolution
10,000 hour lamp life (typical)
16,000:1 Contrast Ratio
3.2kg (7.1lb.)
Wide zoom range for flexible placement
Native Widescreen
Direct Power On
Horizontal & Vertical Keystone Correction
Display Via USB to PC Connection
Logo capture and display
PIN Code Security
Quick Power On
Quick Power Off
DICOM Simulation Mode
Monitor Out
Network Control

NEC ME383W Specifications

Categories	Office / Desktop Portable Widescreen Short Throw Zoom
Manufacturer	NEC (Click for rest of range)
NEC ME383W Optical Features
System	3 * LCD
Resolution	*WXGA (1280800)**
Aspect Ratio	16:10
Lumens	3,800
Colour Light Output	3800 Lumens
Contrast	16,000:1
Lamp	225W AC
Lamp Life	10,000hrs. (20,000hrs. ECO mode)
Interchangeable	No
Zoom Range	1.8x
Throw Ratio	1.2 - 2.1:1
Image Size	30"-300" diagonal
Throw Distance	0.94-11.59m
Throw distance for 100" image	2.58 - 4.52m
Lens Shift	No
KeystoneCorrection	±30° (Vertical)
	±30° (Horizontal)
NEC ME383W Compatibility
Computer Resolutions	WXGA, HD, XGA, SVGA, VGA, Mac
Video Resolutions	720p, PAL, SECAM, NTSC
Horizontal Freq.	15-100kHz
Vertical Freq.	50-120Hz
NEC ME383W Terminals
HDMI	2
RGBHV (15-pin HD)	1
Composite	1
Monitor Out	Yes
Audio In	2
Audio Out	1
USB	2
RS-232	1
Network Ready	Yes
NEC ME383W General
Speakers	16W Mono
Remote Control	NEC ME383W only
Noise	37db (29db ECO mode)
Dimensions	345105261mm (WHD)
Weight	3.20kg
Power Supply	100-240V AC; 50-60Hz
Power Consumption	295Watts
Manufacturers Warranty	3 year pan European
Light Source Warranty	6 months/1000 hours (whichever first)
NEC ME383W Package Contents
Accessories	IR Remote Control (RD-469E); Mini D-SUB Signal Cable (1.8 m); Quick Setup Guide; Security Sticker; Users Manual on CD-ROM; Utility software
Additional
Special Characteristics	Auto Eco Mode; Auto Power ON/OFF; Carbon Savings Meter; Colour Management; Content Transmission via Network; Crestron RoomView; DICOM simulation; Direct Power-Off Function; High Altitude Mode; Kensington security slot; Keypad Lock; Keystone Correction (H=±30°, V=±30°); Lens Cover; Magnify; NaViSet Administrator 2; Off-Timer; Optional User Logo; Optional WLAN; OSD with 29 languages; Password Security System; Quick On/Off; RS-232 Control; Security Bar; USB Display; USB Viewer for JPEG; Virtual Remote for direct PC control; Wall Colour Correction
