Maxell MP-WU8801B Projector

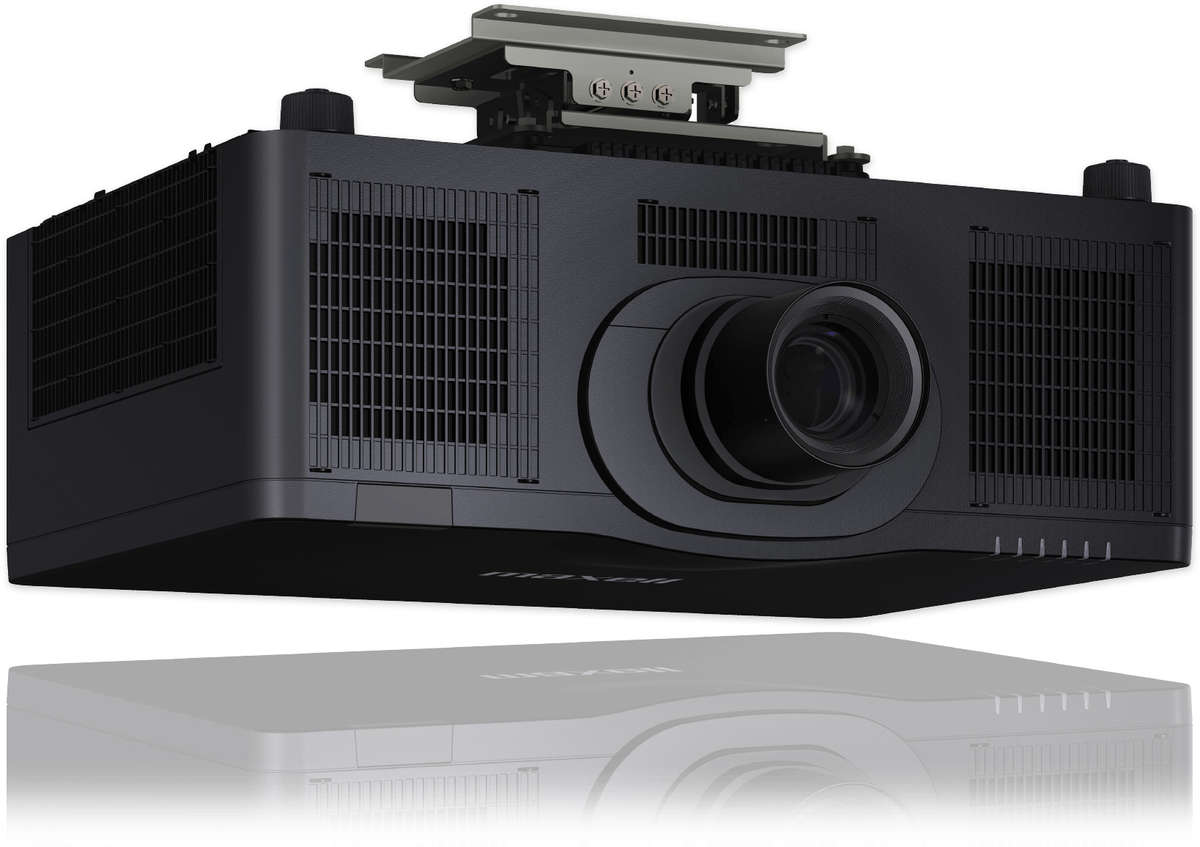

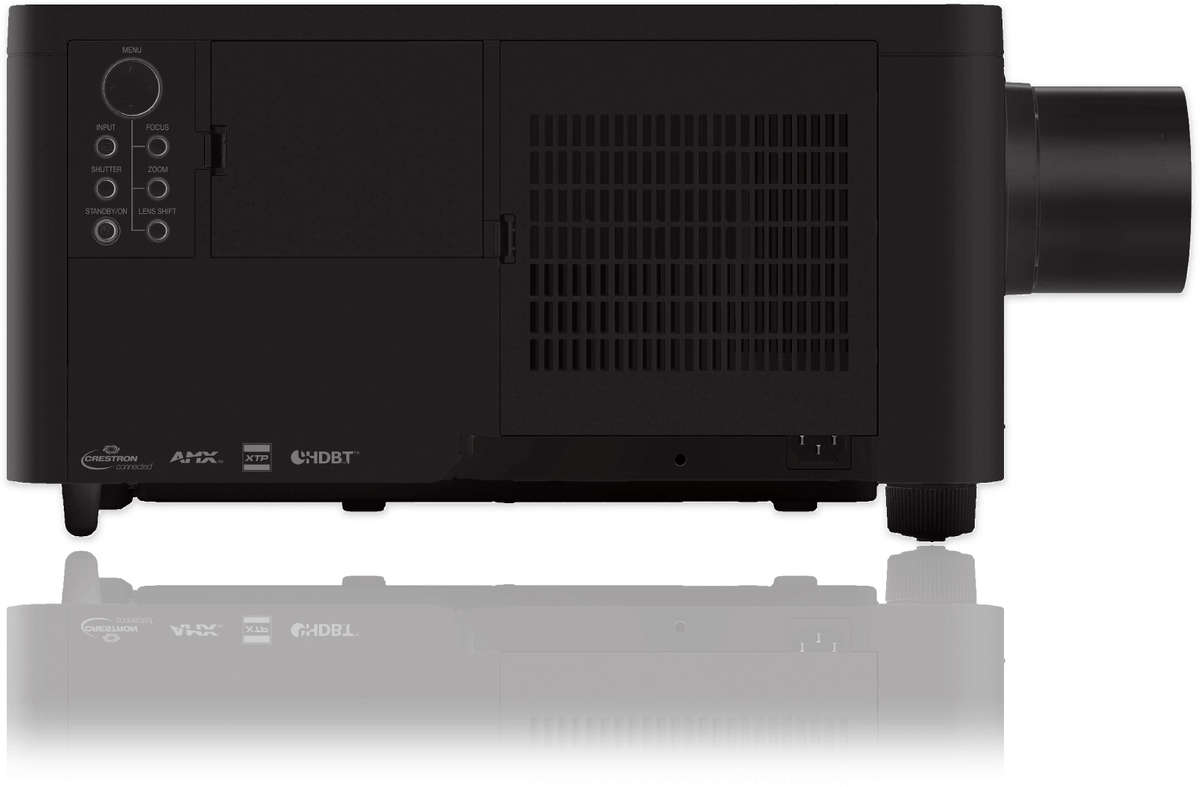

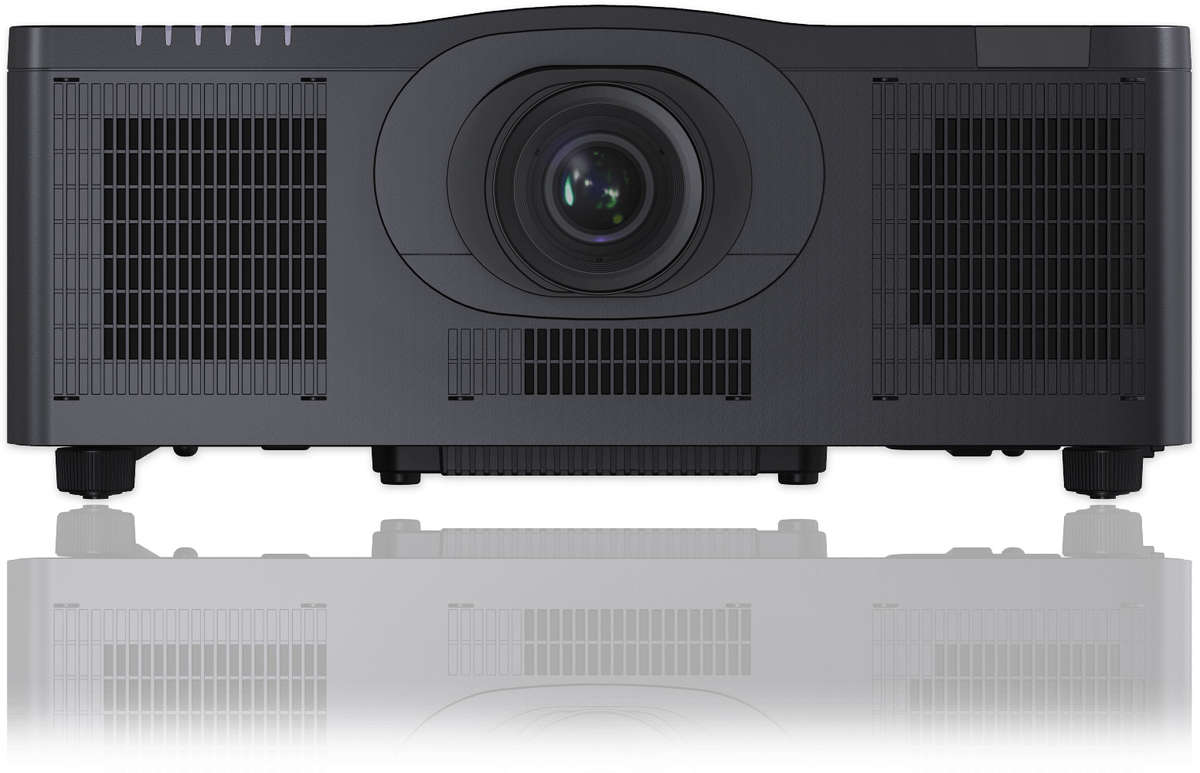

Maxell MP-WU8801B 8000 Lumens WUXGA projector product image. Click to enlarge.

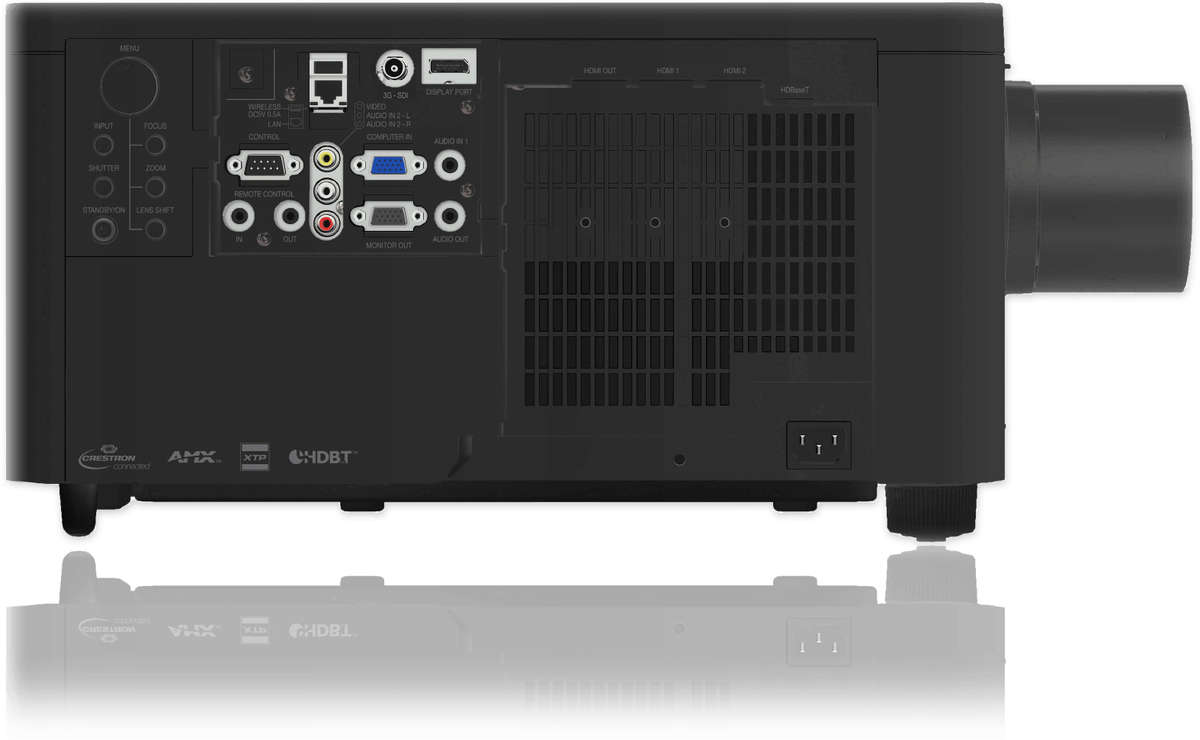

Maxell MP-WU8801B 8000 Lumens WUXGA projector product image Maxell MP-WU8801B 8000 Lumens WUXGA projector connectivity (terminals) product image Maxell MP-WU8801B 8000 Lumens WUXGA projector product image
No Longer Available

Click for Current Projector range

Maxell MP-WU8801B Key Features

  • LCD Display Technology
  • 8000 Lumens Colour Light Output
  • 0 Optional Lenses (Click Here)
  • WUXGA 1920*1200 Native Resolution
  • 20,000 hour lamp life (typical)
  • 2,500,000:1 Contrast Ratio
  • 18.2kg (40.1lb.)
  • Finished in Black
  • Native Widescreen
  • Lens Shift
  • Curved Surface Projection
  • Direct Power On
  • Horizontal & Vertical Keystone Correction
  • Portrait Mode
  • HDBaseT
  • Picture-In-Picture
  • Picture-and-Picture
  • Interchangeable Lens System
  • Can Be Installed Vertically
  • Lens-centred Design
  • Logo capture and display
  • DICOM Simulation Mode
  • Monitor Out
  • Network Control

Maxell MP-WU8801B Downloads


Maxell MP-WU8801B Specifications

Categories Conference / Large Venue
HDBaseT
Interchangeable Lens
Lens Shift
LED/Laser HD
Manufacturer Maxell (Click for rest of range)

Maxell MP-WU8801B Optical Features
System 3 * 0.76" Inorganic LCD
Resolution WUXGA (1920*1200)
Aspect Ratio 16:10
Lumens 8,000
Colour Light Output 8000 Lumens
Contrast 2,500,000:1
Lamp Laser Diode
Lamp Life 20,000hrs.
Interchangeable Yes
Image Size 30"-600" diagonal
Lens Shift Lens Dependent
KeystoneCorrection ±30° (Vertical)
±30° (Horizontal)

Maxell MP-WU8801B Compatibility
Computer Resolutions WUXGA, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
Video Resolutions 4K, 1080p, 1080i, 720p, PAL, SECAM, NTSC

Maxell MP-WU8801B Terminals
HDMI 2
DisplayPort 1
RGBHV (15-pin HD) 1
Composite 1
HD-SDI 1
Monitor Out Yes
Audio In 2
Audio Out 1
USB 1
RS-232 1
HDBaseT 1
Network Ready Yes

Maxell MP-WU8801B General
Speakers No
Remote Control Maxell MP-WU8801B only
Noise 34db (26db ECO mode)
Dimensions 582*215*431mm (W*H*D)
Weight 18.20kg
Power Supply 100-240V AC; 50-60Hz
Power Consumption 560Watts
Manufacturers Warranty 5 year/20,000 hours (whichever first) return to base
Light Source Warranty 5 year/20,000 hours (whichever first) return to base

Maxell MP-WU8801B Package Contents
Accessories Power Cable (1.8m)
Computer Cable (2m)
Remote Control Unit
Concise User Manual
Security Label
Lens Hole Cover
Cable Tie (large x1; medium x3)
AA Batteries x2
Terminal Cover x 2
Warranty card
QC Pass Label

Additional
Picture Modes Standard, Natural, Cinema, Dynamic, Board (Black), Board (Green), Whiteboard, Daytime, DICOM simulation, User-1, User-2, User-3
Security Password / Myscreen Password, Pin Lock, Key Lock
Network Features Wireless Capability(Option), Present via Live Viewer Software (Windows/Mac), Multi Projector, Moderator Control Mode, Projector Quick Connection (iOS / Android app), Projector Monitoring and Control from a Remote Location, E-mail Alerts

Ivojo Multimedia are approved Maxell dealers and supply only UK products with full UK warranties.

Maxell MP-WU8801B Optional Lenses

Projector lens
Description Price Inc. VAT
Maxell FL-720M Fixed Ultra Short Throw Lens Discontinued
Maxell FL-701 Fixed Short Throw Lens Discontinued
Maxell SL-712 Short Throw Zoom Lens Discontinued
Maxell ML-713 Mid Throw Zoom Lens Discontinued
Maxell LL-704 Long Throw Zoom Lens Discontinued
Maxell UL-705 Ultra Long Throw Zoom Lens Discontinued

Back To Top

Maxell MP-WU8801B Accessories

Description Price Inc. VAT
Seddon Flight Case 25 Hard case for projectors weighing 10-25kg £167.00 £200.40
Projector brackets and stands

Projector ceiling mounts and brackets

 Projection Screens

Projection Screens

 Twisted Pair extenders for LCD and LED large format displays

Twisted pair extenders, distribution and switching

 HDMI, DVI, DisplayPort and twisted pair cables for large format displays

HDMI, DVI, DisplayPort, SDI, Twisted Pair and analogue AV cables

 Scalers and video processors for large format displays

Scalers, EDID emulators, multi-windows processors and capture hardware

Maxell MP-WU8801B Alternatives

Product Type ANSI Lumens Weight Price Inc. VAT
Epson EB-PU1008B LCD 8500 15.4 £5512 £6614.40
Epson EB-PU1008W LCD 8500 15.4 £5487 £6584.40
Christie DWU880-GS-BK DLP 8000 19 £5482 £6578.40
Christie DWU880-GS-WH DLP 8000 19 £5482 £6578.40
Fujifilm FP-Z8000-B DLP 8000 18.4 £14154 £16984.80
Panasonic PT-RZ890WEJ DLP 8500 21.3 £11022 £13226.40
Vivitek DU7199Z-BK DLP 8600 20.6 £4447 £5336.40
Vivitek DU7199Z-WH DLP 8600 20.6 £4447 £5336.40
