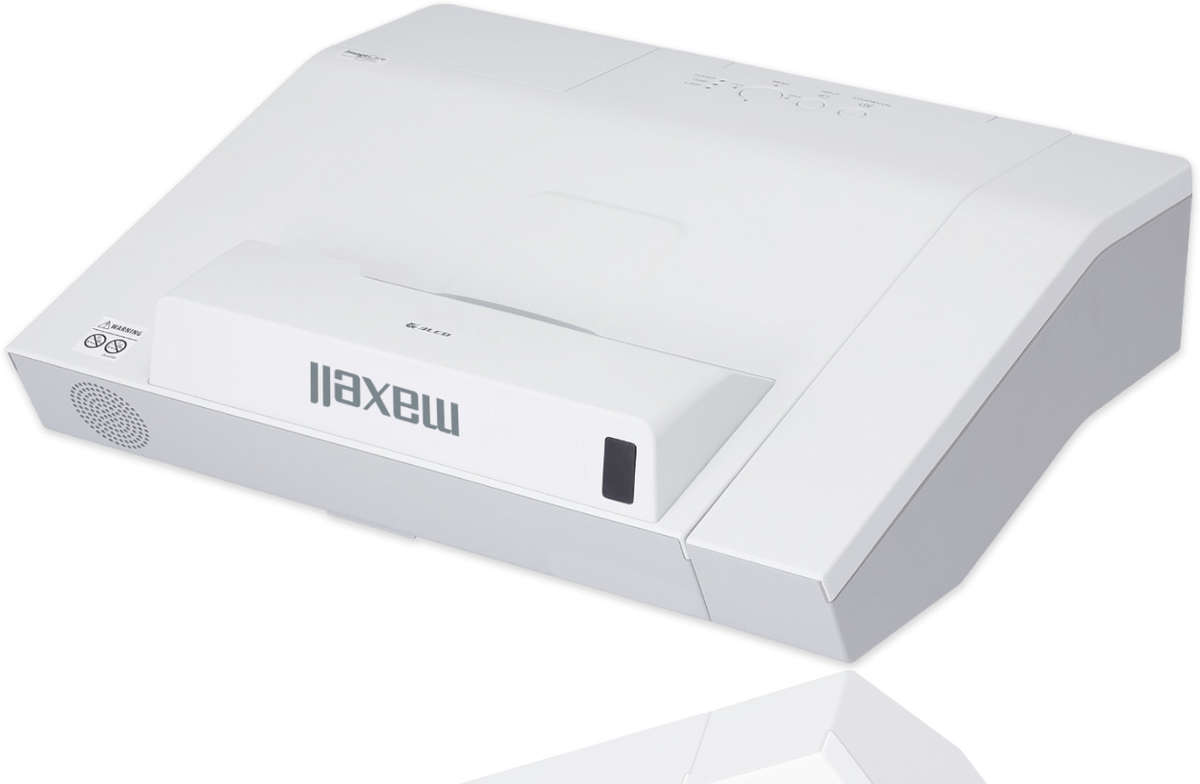

Maxell MC-TW3506 Projector


Maxell MC-TW3506 Key Features

  • LCD Display Technology
  • 3700 Lumens Colour Light Output
  • Wide XGA Resolution
  • 4000 hour lamp life (typical)
  • 16000:1 Contrast Ratio
  • 3 year loan support warranty
  • 4.4kg (9.7lb.)
  • Ultra Short Throw (0.3:1)
  • Native Widescreen
  • PC Free Presentations
  • Horizontal & Vertical Keystone Correction
  • Interactive (Pen)
  • Mouse Emulation Remote

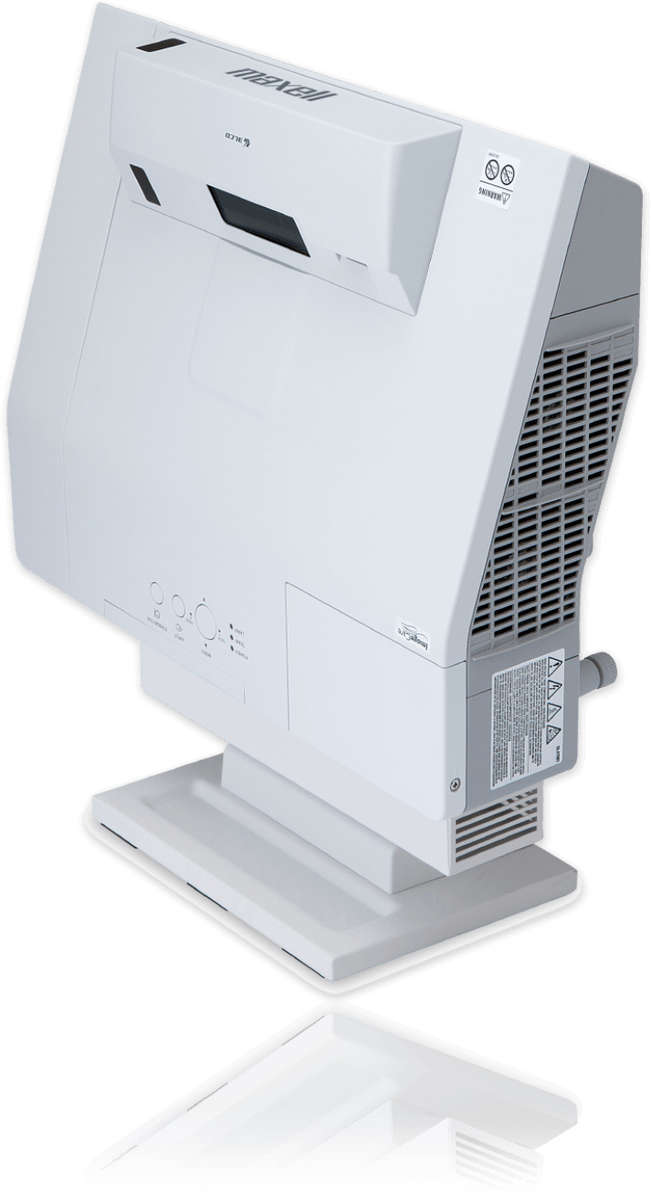

  • Can Be Installed Vertically
  • Logo capture and display
  • PIN Code Security
  • Digital (HDMI/DVI/DisplayPort) Input
  • DICOM Simulation Mode
  • Monitor Out
  • Network Control


Maxell MC-TW3506 Throw Chart (Click for details)

Maxell MC-TW3506 Specifications

Categories Interactive
PC Free
Portable Widescreen
Ultra Short Throw
Manufacturer Maxell (Click for rest of range)

Maxell MC-TW3506 Optical Features

System 3 * 0.59" LCD
Resolution WXGA (1280*800)
Aspect Ratio 16:10
ANSI Lumens 3700
Colour Light Output 3700 Lumens
Contrast 16000:1
Lamp 250W
Lamp Life 4000hrs. (6000hrs. ECO mode)
Lens Fixed ultra short throw (0.3:1)
Interchageable No
Zoom Range Fixed
Throw Ratio 0.3 - 0.3:1
Image Size 63"-107" diagonal
Throw Distance 0.41-0.69m
Throw distance for 100" image 0.65 - 0.65m
Lens Shift No
Keystone Correction ±5° (Vertical)
±5° (Horizontal)

Maxell MC-TW3506 Compatibility

Computer Resolutions VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA
Video Resolutions PAL, SECAM, NTSC, 1080p, 1080i, 720p
Horizontal Freq. kHz
Vertical Freq. Hz

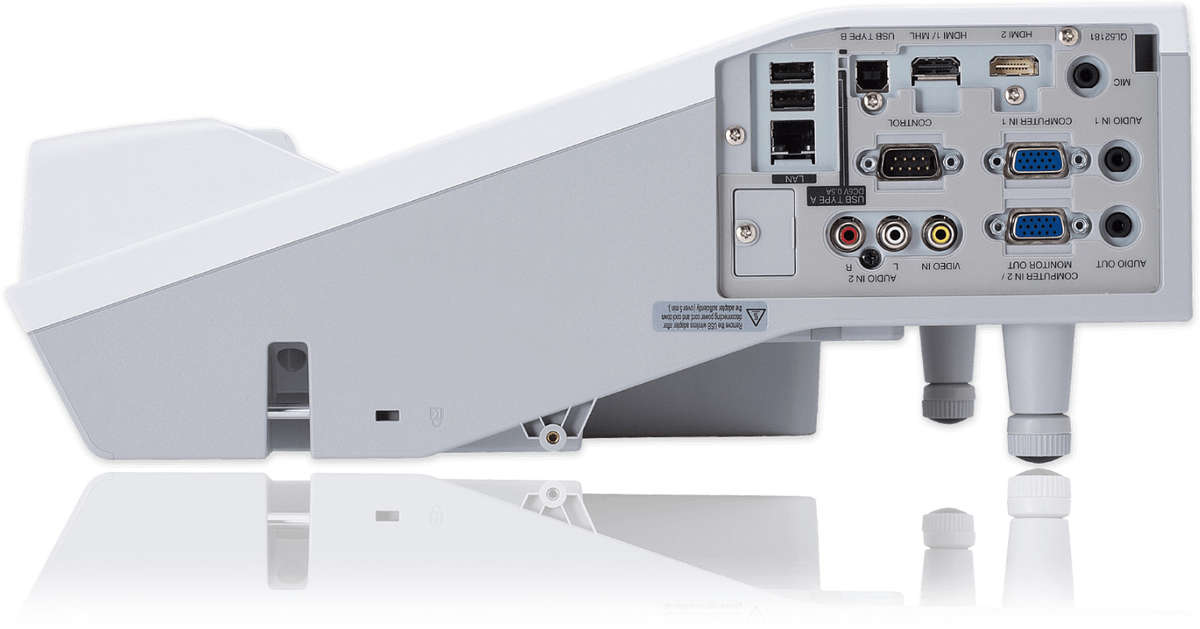

Maxell MC-TW3506 Terminals

HDMI 2
RGBHV (15-pin HD) 2
S-Video 1
Composite 1
Monitor Out Yes
Audio In 3
Audio Out 1
USB 3
RS-232 1
Network Ready Yes

Maxell MC-TW3506 General

Speakers 16w mono
Remote Control Maxell MC-TW3506 + Mouse Emulation
Noise 36db (29db ECO mode)
Dimensions 382*141*362mm (W*H*D)
Weight 4.40kg
Power Supply 100-240V AC; 50-60Hz
Power Consumption 360Watts
Manufacturers Warranty 3 year loan support
Light Source Warranty 3 years/1000 hours (whichever first)

Maxell MC-TW3506 Package Contents

Accessories Remote control
AAA batteries x 4
power cord (4.5m) x 1
computer cable
cable cover
adapter cover
user’s manuals and CD
application CD and DVD
USB cable
interactive pen x 2
pen tips x 4
AA batteries x 2
PIN code sticker

Ivojo Multimedia are approved Maxell dealers and supply only UK products with full UK warranties.



Maxell MC-TW3506 Accessories

Description Price Inc. VAT
Seddon Flight Case 05 Hard case for projectors weighing 3-5kg £113 £135.60
Maxell DT01411M Replacement lamp £167 £200.40
