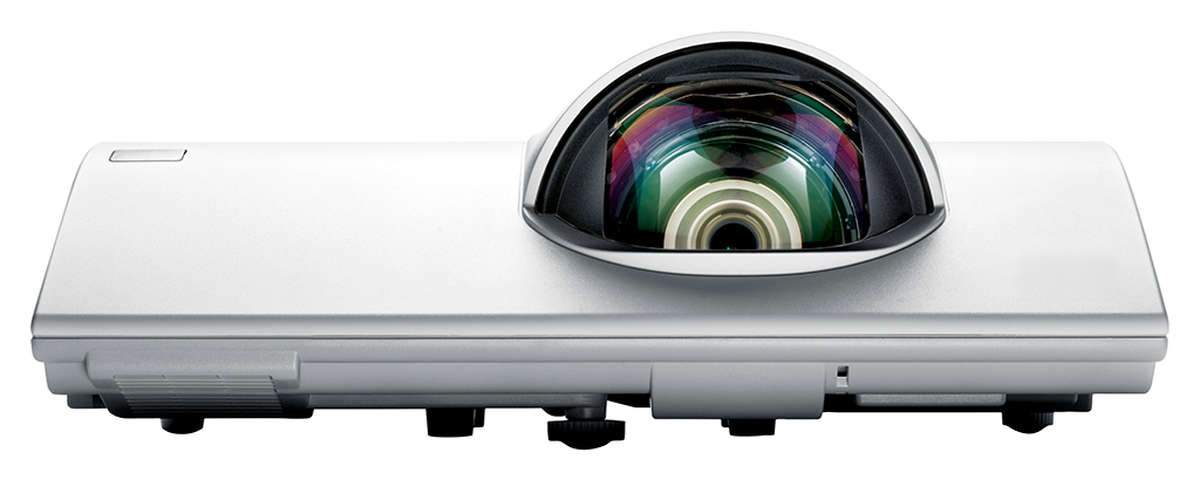

Maxell MC-CX301 Projector

No Longer Available

Click for Current Maxell range

Maxell MC-CX301 Key Features

• LCD Display Technology
• 3100 Lumens Colour Light Output
• XGA 1024*768 Native Resolution
• 5000 hour lamp life (typical)
• 10000:1 Contrast Ratio
• 3 year loan support warranty
• 3.6kg (7.9lb.)
• Ultra Short Throw (0.6:1)
• Direct Power On
• PC Free Presentations
• iOS App Compatible
• Logo capture and display
• PIN Code Security
• Digital (HDMI/DVI/DisplayPort) Input
• Monitor Out
• Network Control

• PC Free Presentations
• Ultra short throw

Maxell MC-CX301 Throw Chart (Click for details)

Maxell MC-CX301 Specifications

Categories	PC Free Portable Ultra Short Throw
Manufacturer	Maxell (Click for rest of range)
Maxell MC-CX301 Optical Features
System	3 * 0.63" P-Si TFT
Resolution	XGA (1024*768)
Aspect Ratio	4:3
ANSI Lumens	3100
ECO Mode Lumens	2077
Colour Light Output	3100 Lumens
Eco Mode CLO	2077 Lumens
Contrast	10000:1
Lamp	225W UHP
Lamp Life	5000hrs. (10000hrs. ECO mode)
Lens	Ultra short throw fixed
Interchangeable	No
Zoom Range	Fixed
Throw Ratio	0.6 - 0.6:1
Image Size	60"-150" diagonal
Throw Distance	0.69-1.84m
Throw distance for 100" image	1.22 - 1.22m
Lens Shift	No
Keystone Correction	5° (Vertical)
Maxell MC-CX301 Compatibility
Computer Resolutions	VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA
Video Resolutions	PAL, SECAM, NTSC, 1080p, 1080i, 720p

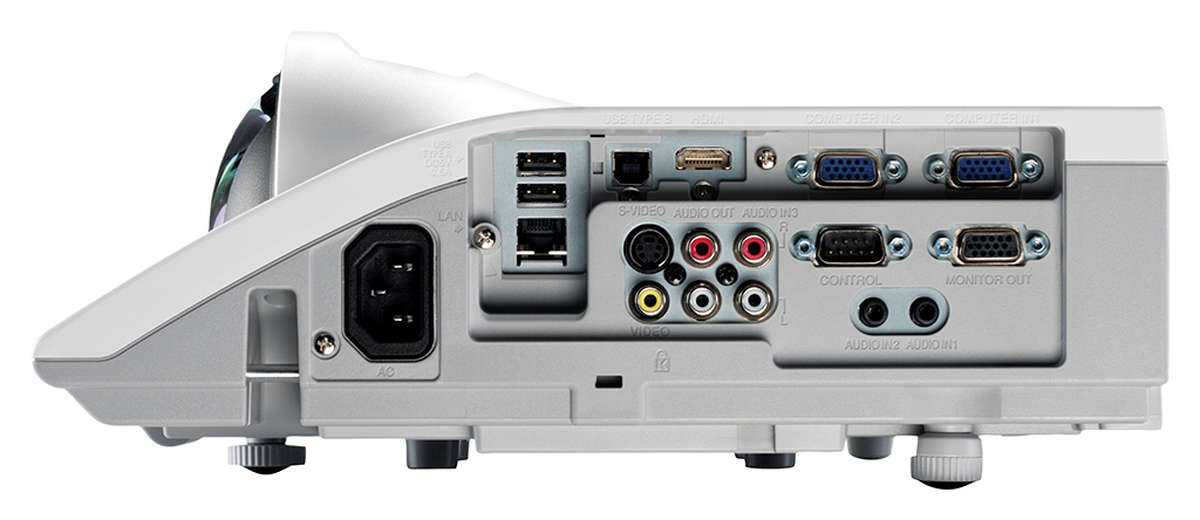

Maxell MC-CX301 Terminals
HDMI	1
RGBHV (15-pin HD)	2
S-Video	1
Composite	1
Monitor Out	Yes
Audio In	4
Audio Out	1
USB	3
RS-232	1
Network Ready	Yes
Maxell MC-CX301 General
Speakers	10w mono
Remote Control	Maxell MC-CX301 only
Noise	37db (30db ECO mode)
Dimensions	345*85*303mm (W*H*D)
Weight	3.60kg
Power Supply	100-240V AC; 50-60Hz
Power Consumption	300Watts
Manufacturers Warranty	3 year loan support
Light Source Warranty	3 years/3000 hours (whichever first)
Maxell MC-CX301 Package Contents
Accessories	Power cable computer cable remote control with batteries lens cover and cap adapter cover (for USB Wireless Adapter) Security label user's manual CD user's manual book application CD

Ivojo Multimedia are approved Maxell dealers and supply only UK products with full UK warranties.

Maxell MC-CX301 Accessories

Description	Price	Inc. VAT
Seddon Flight Case 05 Hard case for projectors weighing 3-5kg	£113	£135.60
