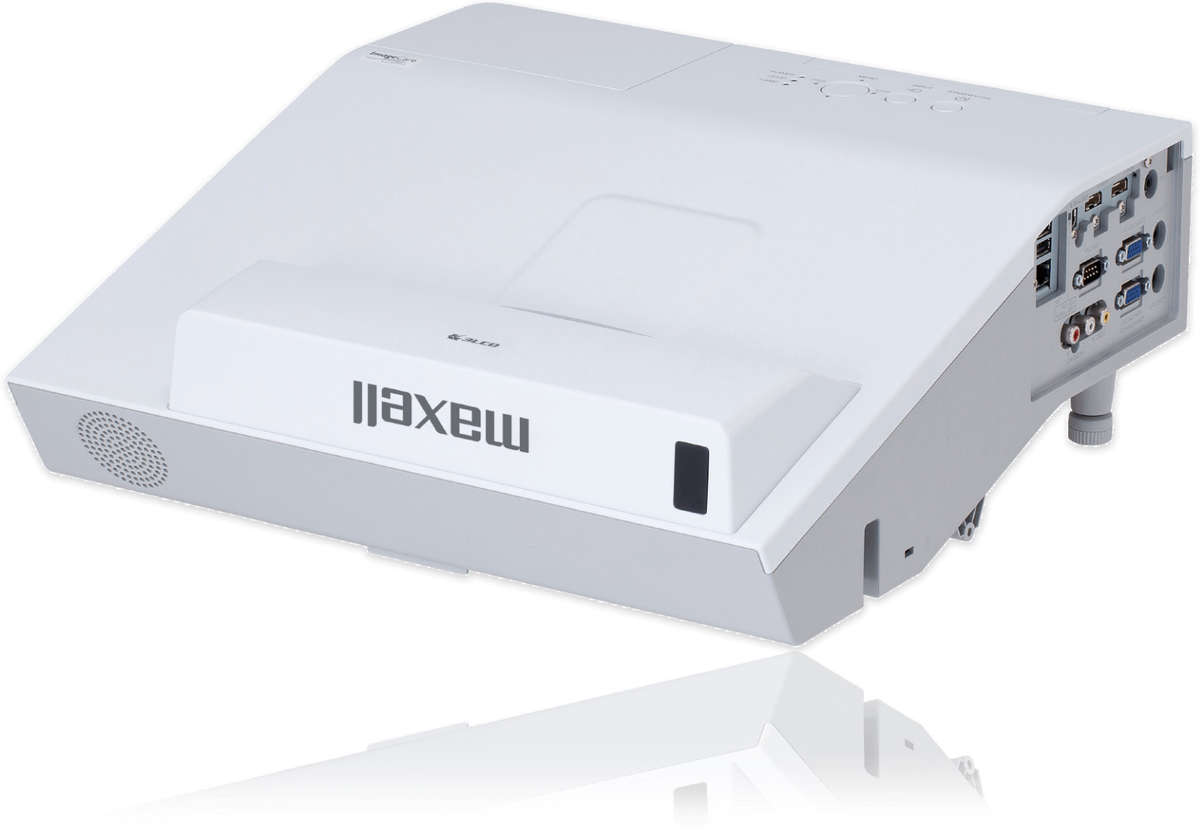

Maxell MC-AW3506 Projector

No Longer Available

Click for Current Projector range

Maxell MC-AW3506 Key Features

• LCD Display Technology
• 3700 Lumens Colour Light Output
• Wide XGA Resolution
• 4,000 hour lamp life (typical)
• 16,000:1 Contrast Ratio
• 4.4kg (9.7lb.)
• Ultra Short Throw (0.3:1)
• Native Widescreen
• PC Free Presentations
• Horizontal & Vertical Keystone Correction
• Mouse Emulation Remote
• Can Be Installed Vertically
• Logo capture and display
• PIN Code Security
• DICOM Simulation Mode
• Monitor Out
• Network Control

Maxell MC-AW3506 Downloads

Brochure

• Horizontal Surface Projection
• PC Free Presentations
• Ultra short throw

Maxell MC-AW3506 Specifications

Categories	PC Free Portable Widescreen Ultra Short Throw
Manufacturer	Maxell (Click for rest of range)
Maxell MC-AW3506 Optical Features
System	3 * 0.59" LCD
Resolution	WXGA (1280*800)
Aspect Ratio	16:10
Lumens	3,700
Colour Light Output	3700 Lumens
Contrast	16,000:1

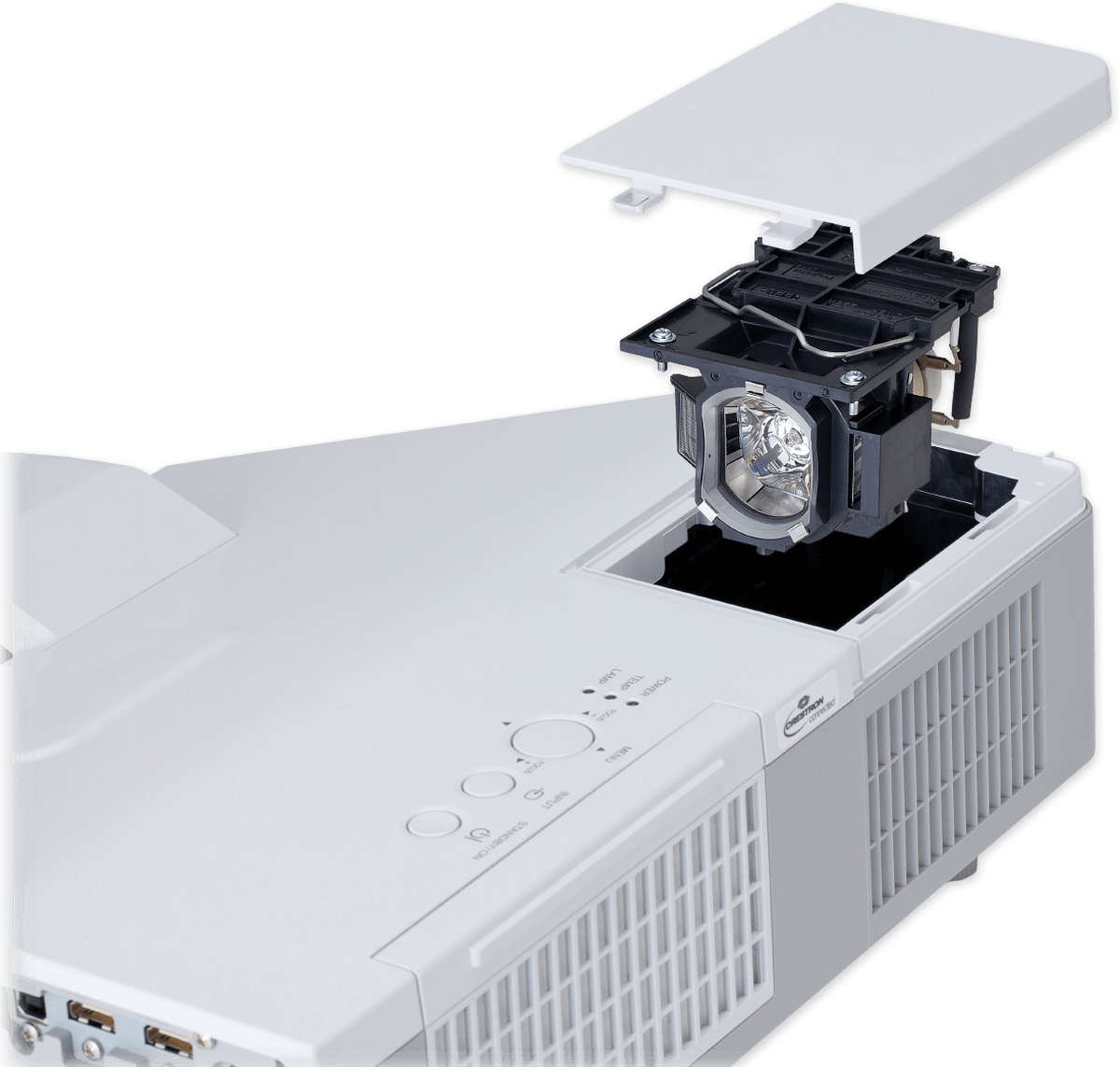

Lamp	250W
Lamp Life	4,000hrs. (6,000hrs. ECO mode)
Interchangeable	No
Zoom Range	Fixed
Throw Ratio	0.3 - 0.3:1
Image Size	63"-107" diagonal
Throw Distance	0.41-0.69m
Throw distance for 100" image	0.65 - 0.65m
Lens Shift	No
KeystoneCorrection	±5° (Vertical)
	±5° (Horizontal)
Maxell MC-AW3506 Compatibility
Computer Resolutions	VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA
Video Resolutions	PAL, SECAM, NTSC, 1080p, 1080i, 720p

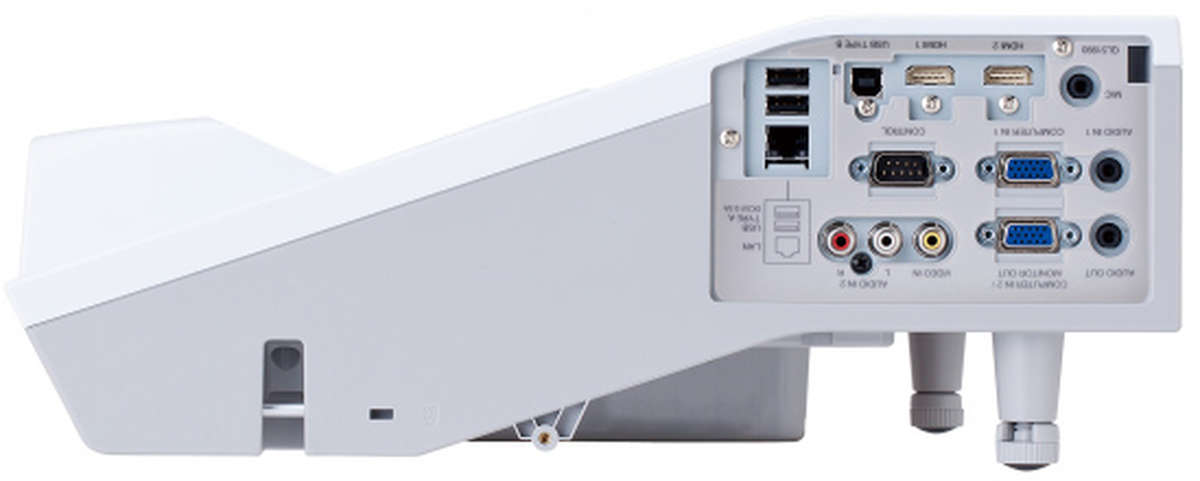

Maxell MC-AW3506 Terminals
HDMI	2
RGBHV (15-pin HD)	2
S-Video	1
Composite	1
Monitor Out	Yes
Audio In	3
Audio Out	1
USB	3
RS-232	1
Network Ready	Yes
Maxell MC-AW3506 General
Speakers	16w mono
Remote Control	Maxell MC-AW3506 + Mouse Emulation
Noise	36db (29db ECO mode)
Dimensions	382*141*362mm (W*H*D)
Weight	4.40kg
Power Supply	100-240V AC; 50-60Hz
Power Consumption	360Watts
Manufacturers Warranty	3 year loan support
Light Source Warranty	3 years/1000 hours (whichever first)
Maxell MC-AW3506 Package Contents
Accessories	Remote control AA batteries x 2 power cord (4.5m) x 1 computer cable cable cover adapter cover PIN code sticker user’s manuals and CD application CD

Ivojo Multimedia are approved Maxell dealers and supply only UK products with full UK warranties.

Maxell MC-AW3506 Accessories

Description	Price	Inc. VAT
Seddon Flight Case 05 Hard case for projectors weighing 3-5kg	£133.00	£159.60
