JVC DLA-RS2100E Projector
£9150 (£10980.00 inc. VAT)
Availability: 3-5 days
Availability: 3-5 days
JVC DLA-RS2100E Key Features
- FREE Delivery on this item
- D-ILA Display Technology
- 2200 Lumens Colour Light Output
- 4K 4096*2160 Native Resolution
- 20,000 hour lamp life (typical)
- 40,000:1 Contrast Ratio
- 22.5kg (49.6lb.)
- 8K/e-shift technology reproduces 8K image quality
- High brightness of 2,200 lm provides vibrant and dynamic images
- Native Contrast Ratio of 40,000:1 translates to a spectacular Dynamic Contrast Ratio of ∞ :1
- All glass 17-element, 15-group lens in full aluminium barrel
- 2x HDMI (48 Gbps, HDCP 2.3) inputs, supporting 8K60P and 4K120P input signals
- Frame Adapt HDR dynamically tone maps any HDR10 content frame-by-frame or scene-by-scene and automatically performs adjustment to achieve optimal images close to reality as seen by human eyes. As a part the Frame Adapt HDR, the projector offers improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation.Additional Frame Adapt HDR picture modes allows for optimum playback with the widest variety of lighting conditions or theater environments.
- Theater Optimizer function, which works in Frame Adapt HDR mode, offers optimum HDR images by analyzing usage environments using the screen size and gain information and intelligently adjusts tone mapping. HDR Quantizer with New Auto (Wide) level mode provides brighter/more dynamic HDR images.
- Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality
- For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received
- Eight settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect; stored installation modes for various environments can be called up.
- New FILMMAKER MODE™ that faithfully recreates the creator’s intentions.
- Clear Motion Drive supporting 4K60P (4:4:4) signal improves moving images more than ever
- ISF C3 (Certified Calibration Controls) mode to reproduce excellent picture quality optimized for specific environments
- Color Management System with 6-axis Matrix
- Auto-Calibration Function using an optical sensor.
- Wireless transmission options for 3D viewing
- Wide zoom range for flexible placement
- Home Cinema
- Native Widescreen
- Lens Shift
- 12v Trigger
- Lens-centred Design
- High Dynamic Range (HDR) Ready
- 3D Projection Ready
- Motorised Zoom and Focus
- Network Control
JVC DLA-RS2100E Downloads
JVC DLA-RS2100E Throw Chart (Click for details)
JVC DLA-RS2100E Specifications
| Categories | 3D Ready Home Cinema / Video Lens Shift Installation UHD/4K LED/Laser HD |
| Manufacturer | JVC (Click for rest of range) |
JVC DLA-RS2100E Optical Features |
|
| System | 3 × 0.69" 4K D-ILA |
| Resolution | 4K (4096*2160) |
| Aspect Ratio | Digital Cinema |
| Lumens | 2,200 |
| Colour Light Output | 2200 Lumens |
| Contrast | 40,000:1 |
| Lamp | BLU-Escent Laser |
| Lamp Life | 20,000hrs. |
| Lens | 2×Motorised Zoom, Shift and Focus;10 Memories |
| Interchangeable | No |
| Zoom Range | 2x |
| Throw Ratio | 1.43 - 2.92:1 |
| Image Size | 60"-200" diagonal |
| Throw Distance | 1.88-12.95m |
| Throw distance for 100" image | 3.21 - 6.56m |
| Lens Shift | Vertical: ±80% Horizontal: ±34% |
JVC DLA-RS2100E Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WSXGA+ |
| Video Resolutions | 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24 |

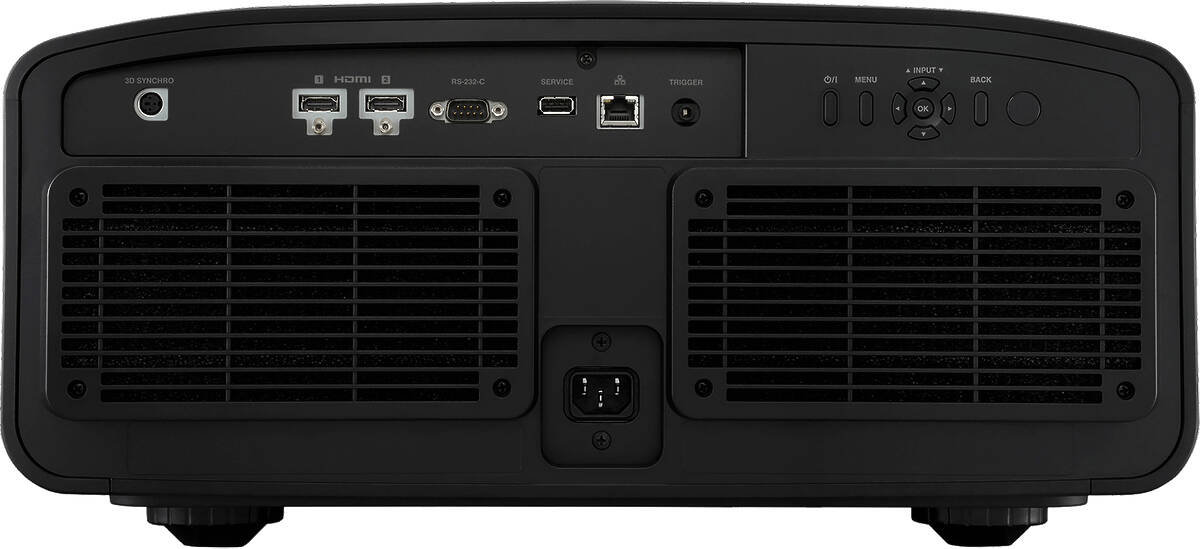

JVC DLA-RS2100E Terminals |
|
| HDMI | 2 |
| RGBHV (15-pin HD) | 1 |
| USB | 1 |
| RS-232 | 1 |
| 12v Trigger | Yes |
| Network Ready | Yes |
JVC DLA-RS2100E General |
|
| Speakers | No |
| Remote Control | JVC DLA-RS2100E only |
| Noise | 28db (24db ECO mode) |
| Dimensions | 500*234*505mm (W*H*D) |
| Weight | 22.50kg |
| Power Supply | 100-240V AC; 50-60Hz |
| Power Consumption | 420Watts |
| Manufacturers Warranty | 1 year professional use |
| Light Source Warranty | 1 year |
JVC DLA-RS2100E Package Contents |
|
| Accessories | Remote Control (RM-MH27) User Manual Power Cord 2 × AAA-size batteries |
Picture |
|
| Dynamic Contrast | ∞ : 1 |
| Dynamic Light Power | Mode 1 (gentle), Mode 2 (strong), Off |
| Manual Aperture | -15 (stops down) to 0 (opens up) |
| 100% REC 709 | Yes |
| Colour Bit Depth | 12 bit |
| ISFccc Certification | Yes |
HDR |
|
| Standards | HDR10, HDR10+ |
| Features | Frame Adapt HDR, Theater Optimizer, HLG, Auto Tone Mapping, Mastering Info Display, MaxCLL and MaxFALL mastering data |
| HDR Picture Modes | BT.709 / BT.2020 / DCI / HDR |
HDMI |
|
| Data Rate | 48 Gbps |
| HDCP Version | 2.3 |
| UHD Compatibility | 8K60P, 4K120p, 4K60P |
| Input Level Adjustment | Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255) |
| Colour Space Range | Auto/ YCbCr4444 / YCbCr422 / RGB |
| EDID Modes | A and B (older hardware may need to use B settings) |
Additional Connections |
|
| Trigger out | Mini-Jack (3.5mm) |
| Power | DC 12V / 100mA |
| 3D Synchro | Mini DIN 3-pin |
| LAN | RJ45 |
| Service | USB (Type A) for firmware update. |
3D |
|
| 3D Capability | Yes |
| 3D Versions | Frame Packing, Side-by-Side, Top & Bottom |
| Frame Packing Resolutions | 720p 60/50, 1080p 24 |
| Side-by-Side Resolutions | 720p 60/50, 1080p 60/50/24, 1080i 60/50 |
| Top & Bottom Resolution | 720p 60/50, 1080p/24 |
| 3D Emitter (Optional) | Yes, PK-EM2 |
| 3D Glasses (Optional) | Yes, PK-AG3 |
Picture Settings |
|
| Picture Modes | Natural, Cinema, HDR10+, Frame Adapt HDR, HDR10, HLG, Pan_PQ, 6 User modes |
| Color Temperatures | 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2 |
| Gamma Processing Depth | 12 bit |
| Gamma Adjust | HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Pana_PQ, 3 Custom modes |
| Color Management | 6-Axis adjustable CMS |
| MPC | Yes |
| Modes | Filmmaker Mode, Low Latency Mode, Clear Motion Drive, Motion Enhance, Auto Calibration, Optional Probe needed, Installation Mode |
| Included settings | Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, Pincushion, and Aspect |
| Anamorphic Modes | 4 Modes (A, B, C, D) |
| Control4 SDDP | Yes |
Ivojo Multimedia are approved JVC dealers and supply only UK products with full UK warranties.
JVC DLA-RS2100E Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case 25 Hard case for projectors weighing 10-25kg | £167.00 | £200.40 |
JVC DLA-RS2100E Alternatives
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| JVC DLA-NZ7 | D-ILA | 2200 | 22.5 | £7324 | £8788.80 |
