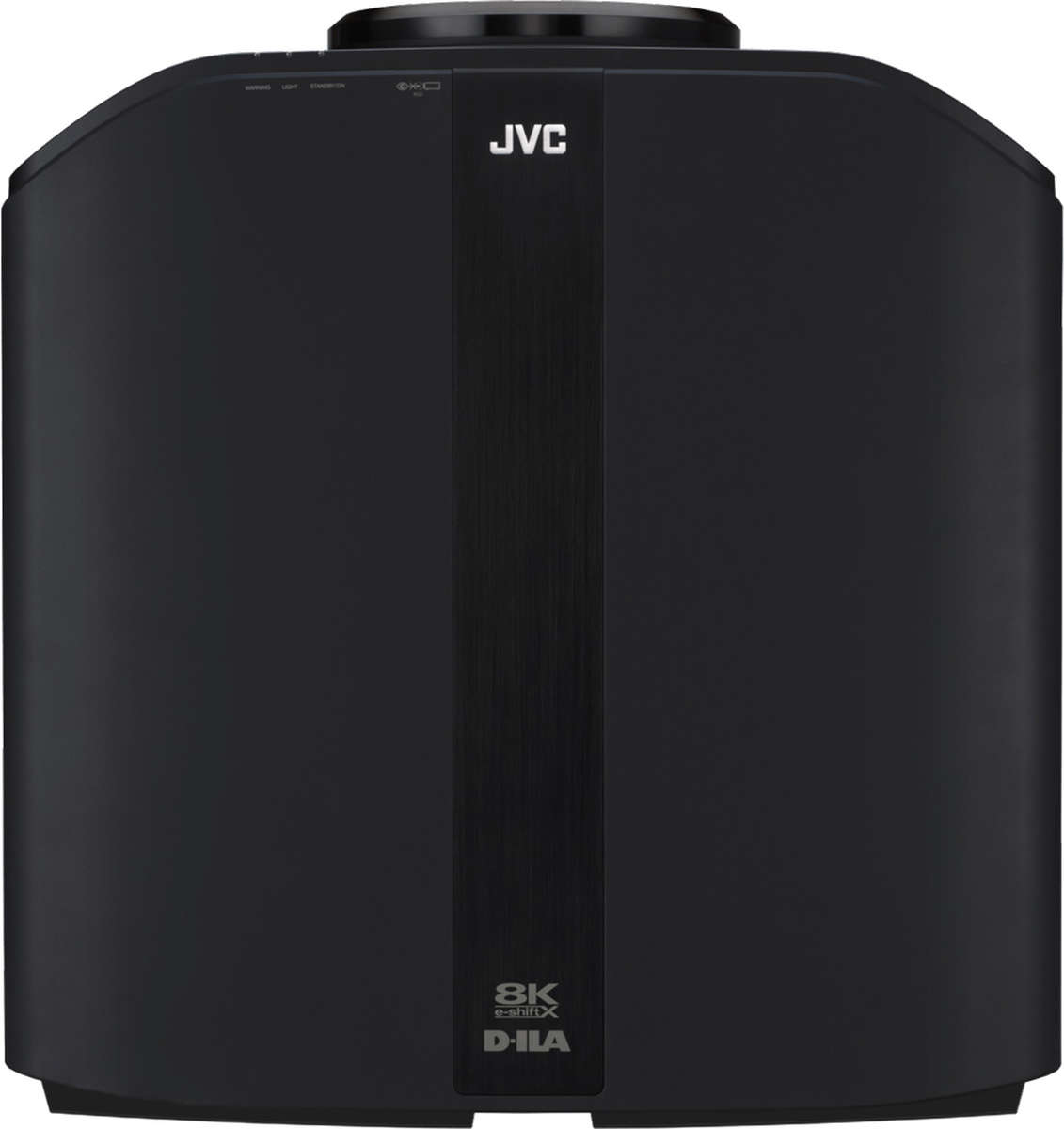

JVC DLA-NZ9 Projector
£21139 (£25366.80 inc. VAT)
Availability: Please Call
Availability: Please Call
JVC DLA-NZ9 Key Features
- FREE Delivery on this item
- D-ILA Display Technology
- 3000 Lumens Colour Light Output
- 4K 4096*2160 Native Resolution
- 20,000 hour lamp life (typical)
- 100,000:1 Contrast Ratio
- 25.3kg (55.8lb.)
- 100mm lens
- 8K E-Shift Technology for 8192*4320 resolution
- Lens Aperture can be set manually
- 100% REC 709
- ISFccc Certified
- 17-element, 15-group all-glass 65mm diameter high-quality lens
- High brightness of 2,200 lm provides vibrant and dynamic images
- Native Contrast Ratio of 40,000:1 translates to a spectacular Dynamic 2x HDMI (48 Gbps, HDCP 2.3) inputs, supporting 8K60P and 4K120P input signals
- HDR10+ contains the metadata of the producer's intentions for each scene, and with such data, the projector is able to automatically reproduce images as the creator intended.
- Frame Adapt HDR* dynamically tone maps any HDR10 content frame-by-frame or scene-by-scene and automatically performs adjustment to achieve optimal images close to reality as seen by human eyes. As a part the Frame Adapt HDR, the projector offers improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation
- New Theater Optimizer** function, which works in Frame Adapt HDR mode, offers optimum HDR images by analyzing usage environments using the screen size and gain information and intelligently adjusts tone mapping.
- Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality
- For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received
- Nine settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, Pincushion, and Aspect; stored installation modes for various environments can be called up.
- Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
- Wide zoom range for flexible placement
- Home Cinema
- Native Widescreen
- Lens Shift
- 12v Trigger
- Lens-centred Design
- High Dynamic Range (HDR) Ready
- 3D Projection Ready
- Motorised Zoom and Focus
- Network Control
JVC DLA-NZ9 Throw Chart (Click for details)
JVC DLA-NZ9 Specifications
| Categories | 3D Ready Home Cinema / Video Lens Shift Installation HD LED/Laser HD |
| Manufacturer | JVC (Click for rest of range) |
JVC DLA-NZ9 Optical Features |
|
| System | 3 * 0.69" 4K D-ILA |
| Resolution | 4K (4096*2160) |
| Aspect Ratio | Digital Cinema |
| Lumens | 3,000 |
| Colour Light Output | 3000 Lumens |
| Contrast | 100,000:1 |
| Lamp | BLU-Escent Laser |
| Lamp Life | 20,000hrs. |
| Lens | 2x Motorised Zoom and Focus |
| Interchangeable | No |
| Zoom Range | 2x |
| Throw Ratio | 1.35 - 2.75:1 |
| Image Size | 60"-300" diagonal |
| Throw Distance | 1.88-12.95m |
| Throw distance for 100" image | 3.03 - 6.18m |
| Lens Shift | Vertical: ±100% Horizontal: ±43% |
JVC DLA-NZ9 Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WSXGA+ |
| Video Resolutions | 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24 |
JVC DLA-NZ9 Terminals |
|
| HDMI | 2 |
| RGBHV (15-pin HD) | 1 |
| USB | 1 |
| RS-232 | 1 |
| 12v Trigger | Yes |
| Network Ready | Yes |
JVC DLA-NZ9 General |
|
| Speakers | No |
| Remote Control | JVC DLA-NZ9 only |
| Noise | 24db |
| Dimensions | 500*234*528mm (W*H*D) |
| Weight | 25.30kg |
| Power Supply | 100-240V AC; 50-60Hz |
| Power Consumption | 420Watts |
| Manufacturers Warranty | 3 year return to base (1 year professional use) |
| Light Source Warranty | 3 year return to base (1 year professional use) |
JVC DLA-NZ9 Package Contents |
|
| Accessories | Remote Control (RM-MH27) User Manual Power Cord 2 × AAA-size batteries |
3D |
|
| 3D Capability | Yes |
| 3D Versions | Frame Packing, Side-by-Side, Top & Bottom |
| Frame Packing Resolutions | 720p 60/50, 1080p 24 |
| Side-by-Side Resolutions | 720p 60/50, 1080p 60/50/24, 1080i 60/50 |
| Top & Bottom Resolution | 720p 60/50, 1080p/24 |
| 3D Emitter (Optional) | Yes, PK-EM2 |
| 3D Glasses (Optional) | Yes, PK-AG3 |
Picture Settings |
|
| Picture Modes | Natural, Cinema, HDR10+, Frame Adapt HDR, HDR10, HLG, Pan_PQ, 6 User modes |
| Color Temperatures | 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2 |
| Gamma Processing Depth | 12 bit |
| Gamma Adjust | HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Pana_PQ, 3 Custom modes |
| Colour Management | 6-Axis adjustable CMS |
| MPC | Yes |
| Low Latency Mode | Yes |
| Clear Motion Drive | Yes |
| Motion Enhance | Yes |
| Auto Calibration | Yes with optional probe |
| Installation Mode | Yes |
| Number of presets | 10 |
| Included settings | Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, Pincushion, and Aspect |
| Anamorphic Modes | 4 Modes (A, B, C, D) |
| Control4 SDDP | Yes |
Ivojo Multimedia are approved JVC dealers and supply only UK products with full UK warranties.
JVC DLA-NZ9 Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case XL Hard case with castors for projectors weighing over 25kg | £247.00 | £296.40 |
JVC DLA-NZ9 Alternatives
| Product | Type | ANSI Lumens | Weight | Price | Inc. VAT |
| JVC DLA-RS4100E | D-ILA | 3000 | 25.3 | £20625 | £24750.00 |
