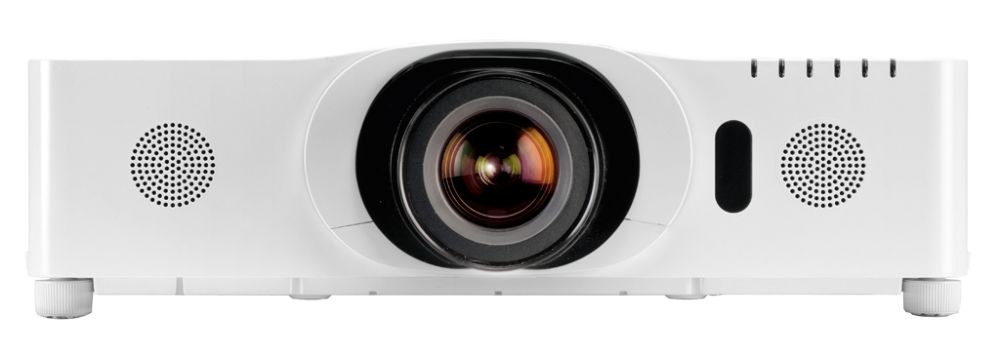

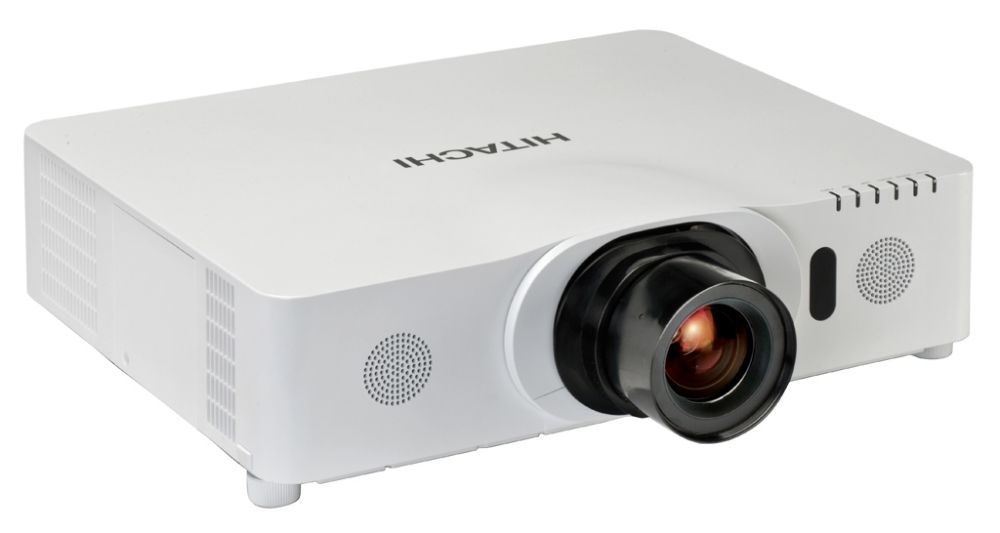

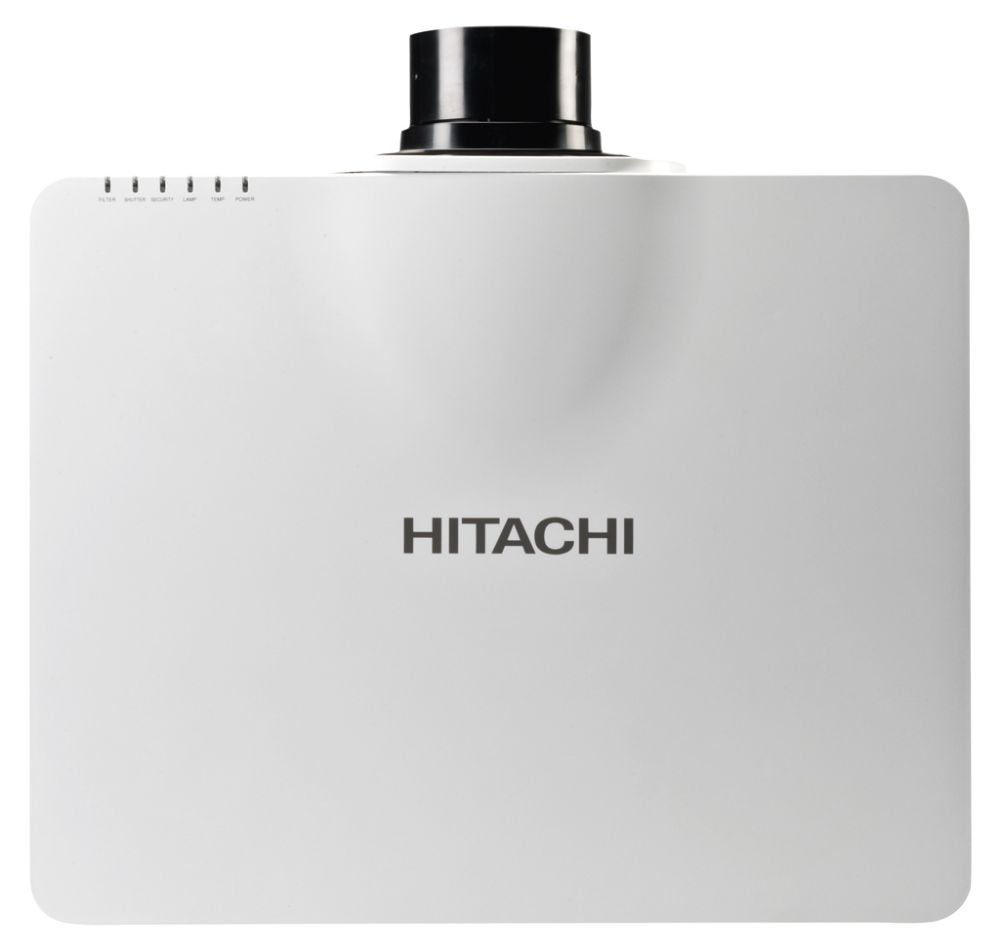

Hitachi CP-X8170 Projector
Hitachi CP-X8170 Key Features
- LCD Display Technology
- 7000 Lumens Colour Light Output
- 0 Optional Lenses (Click Here)
- XGA 1024*768 Native Resolution
- 2,500 hour lamp life (typical)
- 3,000:1 Contrast Ratio
- 8.6kg (19.0lb.)
- Wide zoom range for flexible placement
- Native Widescreen
- Curved Surface Projection
- Direct Power On
- PC Free Presentations
- Interchangeable Lens System
- Can Be Installed Vertically
- Lens-centred Design
- Logo capture and display
- PIN Code Security
- Quick Power On
- Quick Power Off
- Motorised Zoom and Focus
- Stacking Function
- Monitor Out
- Network Control
Hitachi CP-X8170 Downloads
- Conference rooms (50 - 150 people)
- Exhibitions and large venues
- Horizontal Surface Projection
- PC Free Presentations
- School Halls
Hitachi CP-X8170 Specifications
| Categories | Conference / Large Venue Interchangeable Lens PC Free Short Throw Zoom |
| Manufacturer | Hitachi (Click for rest of range) |
Hitachi CP-X8170 Optical Features |
|
| System | 3 * 0.63" LCD |
| Resolution | XGA (1024*768) |
| Aspect Ratio | 4:3 |
| Lumens | 7,000 |
| ECO Mode Lumens | 5,600 |
| Colour Light Output | 7000 Lumens |
| Eco Mode CLO | 5600 Lumens |
| Contrast | 3,000:1 |
| Lamp | 330W UHP |
| Lamp Life | 2,500hrs. (3,000hrs. ECO mode) |
| Interchangeable | Yes |
| Throw Ratio | 1.22 - 2.43:1 |
| Image Size | 30"-600" diagonal |
| Throw Distance | 0.90-36.80m |
| Throw distance for 100" image | 2.49 - 4.93m |
| Lens Shift | No |
| Keystone |
±35° (Vertical) |
Hitachi CP-X8170 Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA, WUXGA, MAC 16 |
| Video Resolutions | PAL, SECAM, NTSC, 1080p, 1080i, 720p |

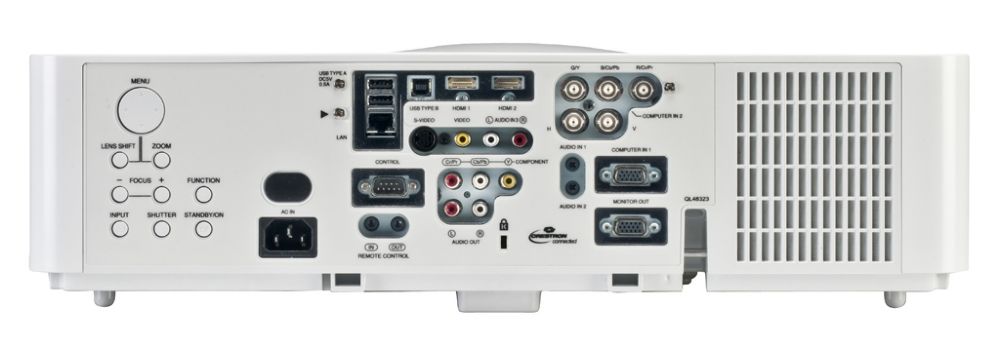

Hitachi CP-X8170 Terminals |
|
| HDMI | 2 |
| RGBHV (15-pin HD) | 1 |
| RGBHV (BNC/RCA) | 1 |
| Component | 1 |
| S-Video | 1 |
| Composite | 1 |
| Monitor Out | Yes |
| Audio In | 3 |
| Audio Out | 1 |
| USB | 3 |
| RS-232 | 1 |
| Network Ready | Yes |
Hitachi CP-X8170 General |
|
| Speakers | 2*8W stereo |

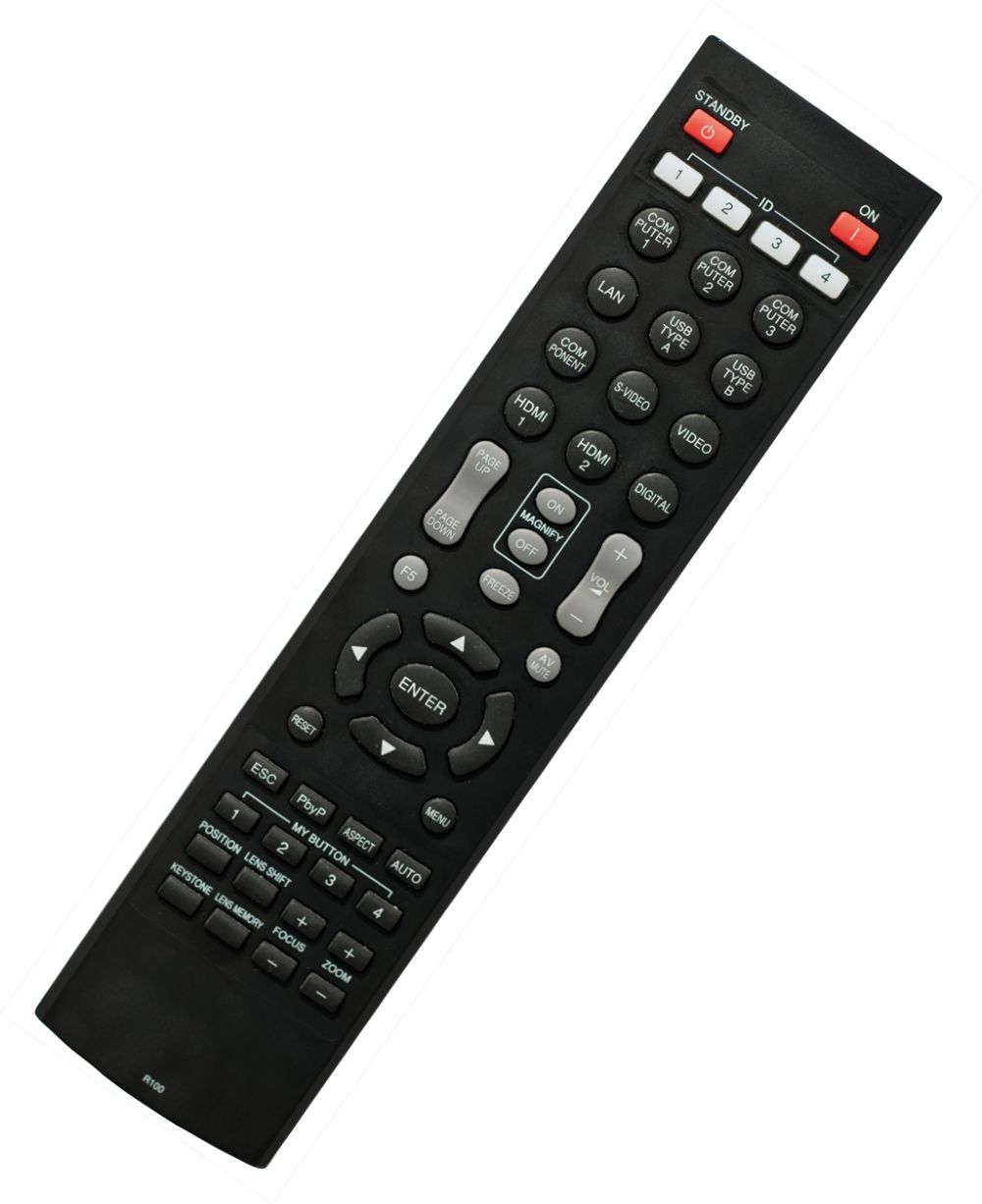

| Remote Control | Hitachi CP-X8170 only |
| Noise | 35db (29db ECO mode) |
| Dimensions | 498*135*396mm (W*H*D) |
| Weight | 8.60kg |
| Power Supply | AC100-120V/AC220-240V |
| Power Consumption | 355Watts |
| Manufacturers Warranty | 3 year loan support |
| Light Source Warranty | 6 months/1000 hours (whichever first) |
Hitachi CP-X8170 Package Contents |
|
| Accessories | Remote control with batteries RGB cable power cord lens cover security label user manual (detail & concise) Application CD Adaptor cover |
Ivojo Multimedia are approved Hitachi dealers and supply only UK products with full UK warranties.
Hitachi CP-X8170 Optional Lenses
| Description | Price | Inc. VAT |
| Hitachi FL-701 Short Throw Fixed Lens | Discontinued | |
| Hitachi SL-702 Short Throw Zoom Lens | Discontinued | |
| Hitachi ML-703 Mid Range Zoom Lens | Discontinued | |
| Hitachi LL-704 Long Throw Zoom Lens | Discontinued | |
| Hitachi UL-705 Ultra Long Throw Zoom Lens | Discontinued | |
Hitachi CP-X8170 Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case 10 Hard case for projectors weighing 5-10kg | £153.00 | £183.60 |
| Hitachi DT01471 Replacement lamp | £332 | £398.40 |
