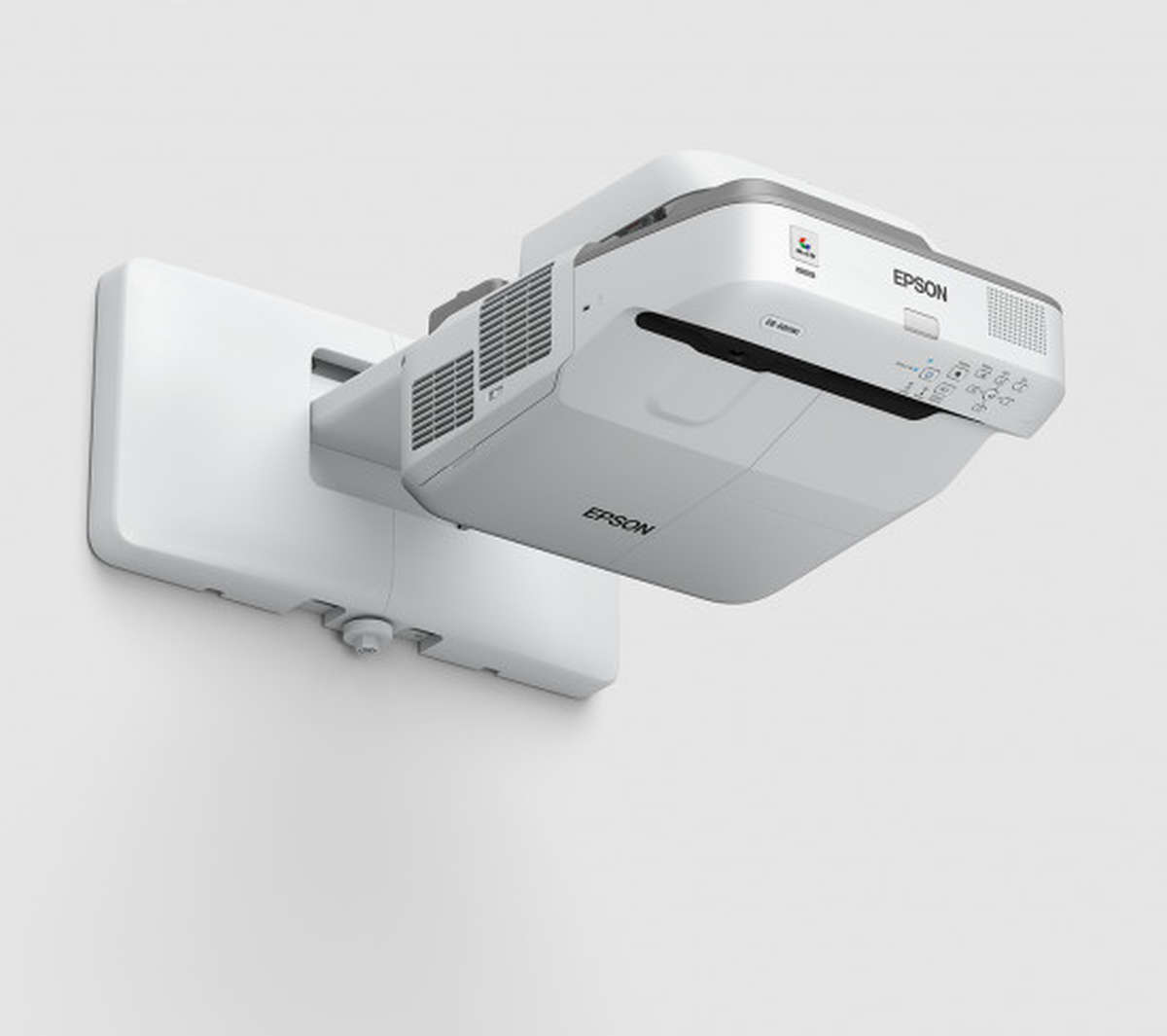

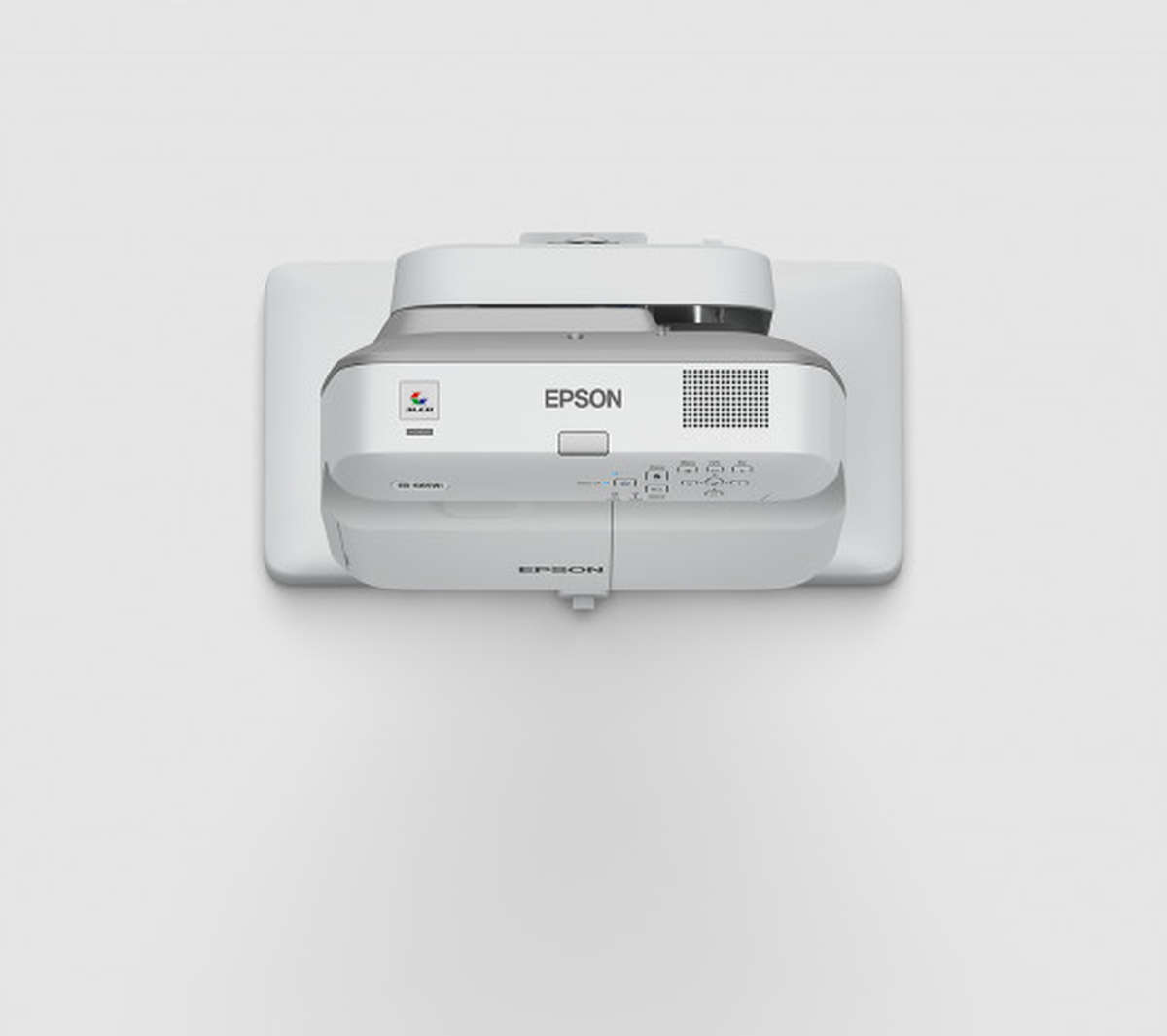

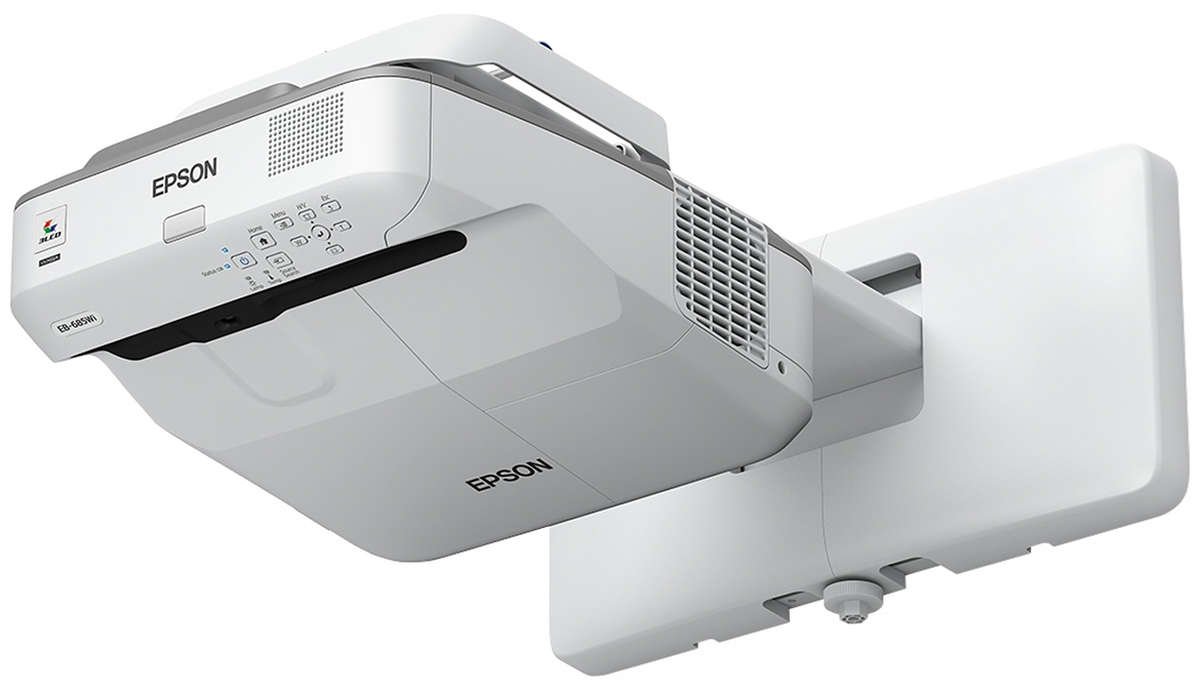

Epson EB-680 Projector

Epson EB-680 3500 ANSI Lumens XGA projector product image
Epson EB-680 3500 ANSI Lumens XGA projector product image Epson EB-680 3500 ANSI Lumens XGA projector product image Epson EB-680 3500 ANSI Lumens XGA projector product image Epson EB-680 3500 ANSI Lumens XGA projector remote control product image
£1221 (£1465.20 inc. VAT)
Availability: 3-5 days

Epson EB-680 Key Features

  • FREE Delivery on this item
  • LCD Display Technology
  • 3500 Lumens Colour Light Output
  • XGA 1024*768 Native Resolution
  • 5000 hour lamp life (typical)
  • 14000:1 Contrast Ratio
  • 3 year/8,000 (whichever first) on-site warranty
  • 5.7kg (12.6lb.)
  • Ultra Short Throw (0.32:1)
  • Direct Power On
  • Horizontal & Vertical Keystone Correction
  • Direct Power Off
  • Display Via USB to PC Connection
  • MHL
  • Includes Wall Bracket
  • Logo capture and display
  • PIN Code Security
  • Digital (HDMI/DVI/DisplayPort) Input
  • sRGB Colour Mode
  • Monitor Out
  • Network Control


Epson EB-680 Throw Chart (Click for details)

Epson EB-680 throw distance chart

Epson EB-680 Specifications

Categories Ultra Short Throw
Wireless
Manufacturer Epson (Click for rest of range)

Epson EB-680 Optical Features
System 3 * 0.55" D9 LCD
Resolution XGA (1024*768)
Aspect Ratio 4:3
ANSI Lumens 3500
ECO Mode Lumens 2900
Colour Light Output 3500 Lumens
Eco Mode CLO 2900 Lumens
Contrast 14000:1
Lamp 250W
Lamp Life 5000hrs. (10000hrs. ECO mode)
Lens F1.6, f=3.76mm ultra short throw fixed
Interchageable No
Zoom Range 1.3x
Throw Ratio 0.32 - 0.43:1
Image Size 55"-93" diagonal
Throw Distance 0.40-0.60m
Throw distance for 100" image 0.65 - 0.87m
Lens Shift No

Epson EB-680 Compatibility
Computer Resolutions VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA
Video Resolutions PAL, SECAM, NTSC, 1080p, 1080i, 720p
Horizontal Freq. kHz
Vertical Freq. 50-85Hz

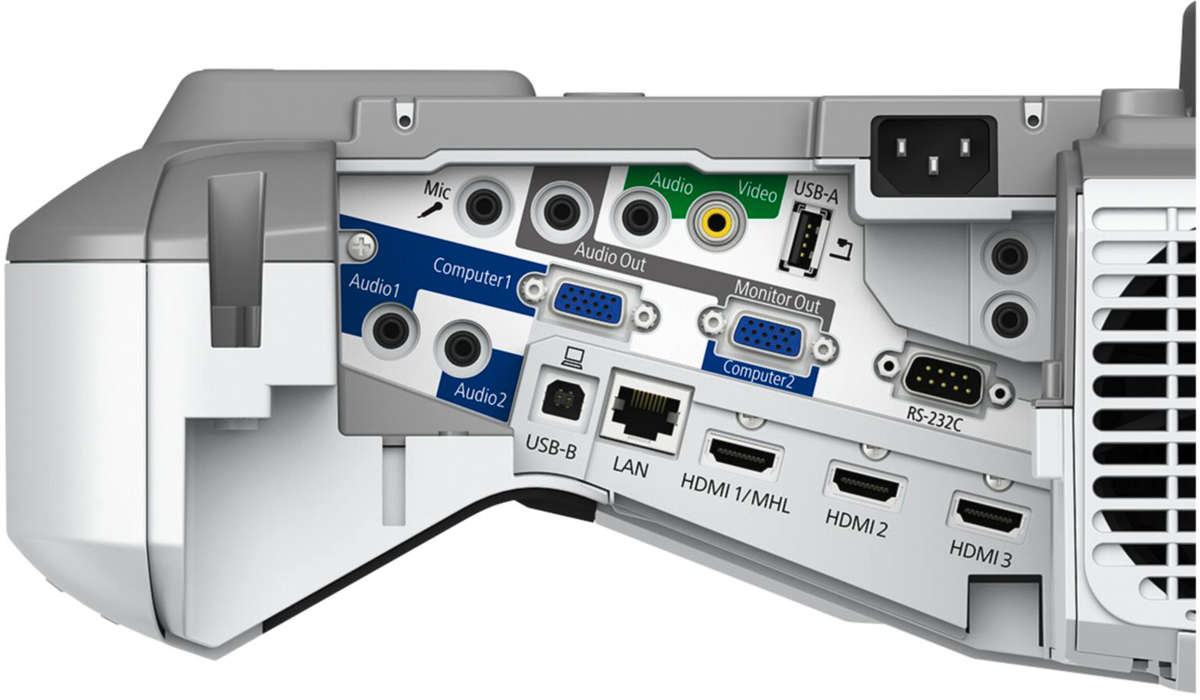

Epson EB-680 Terminals
HDMI 3
RGBHV (15-pin HD) 2
Composite 1
Monitor Out Yes
Audio In 4
Audio Out 1
USB 2
RS-232 1
Network Ready Yes

Epson EB-680 General
Speakers 16w mono
Remote Control Epson EB-680 only
Noise 35db (30db ECO mode)
Dimensions 367*149*400mm (W*H*D)
Weight 5.70kg
Power Supply 100-240V AC; 50-60Hz
Power Consumption 354Watts
Manufacturers Warranty 3 year/8,000 (whichever first) on-site
Light Source Warranty 12 months/1000 hours (whichever first)

Epson EB-680 Package Contents
Accessories CD Manual
Main unit
Power cable
Quick Start Guide

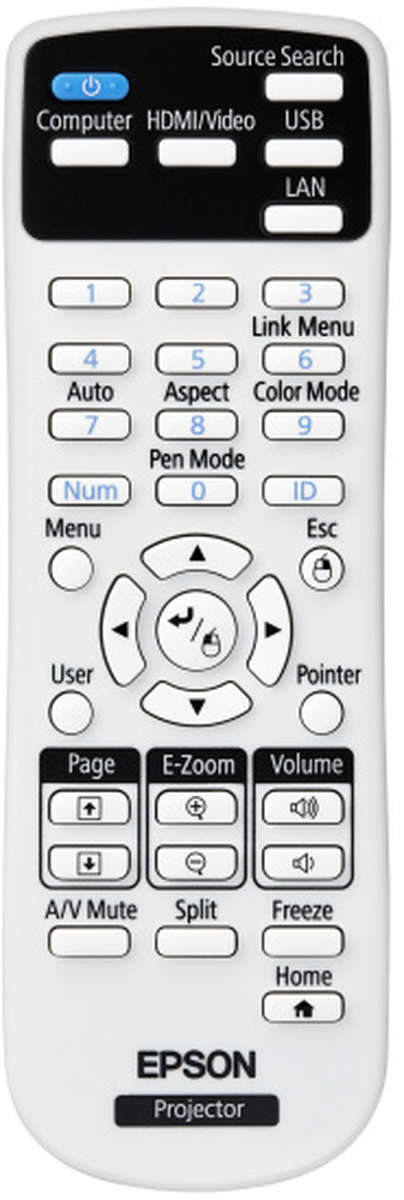

Remote control incl. batteries
USB cable
Wall hanging bracket
Warranty card

Ivojo Multimedia are approved Epson dealers and supply only UK products with full UK warranties.
