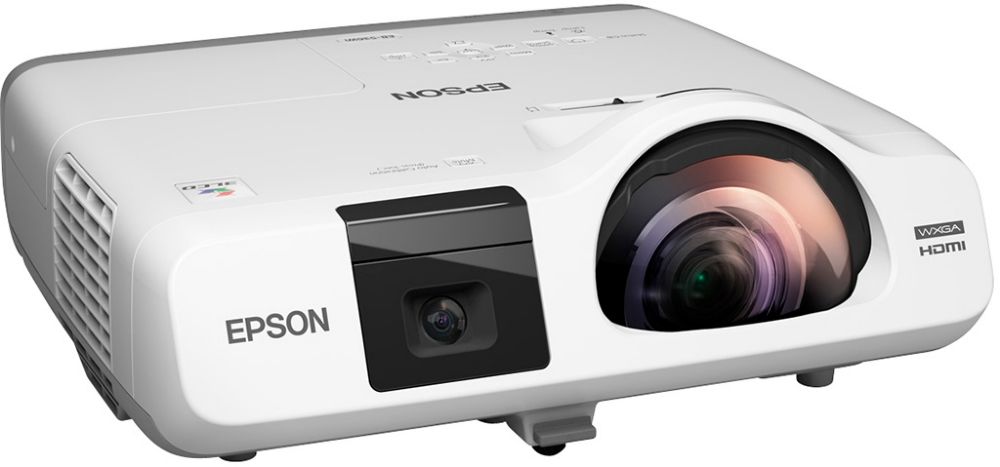

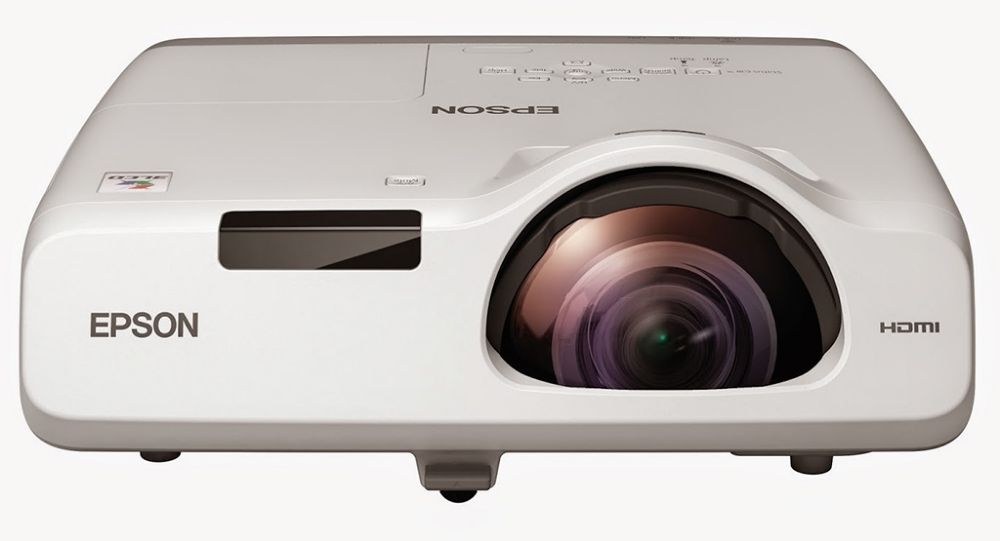

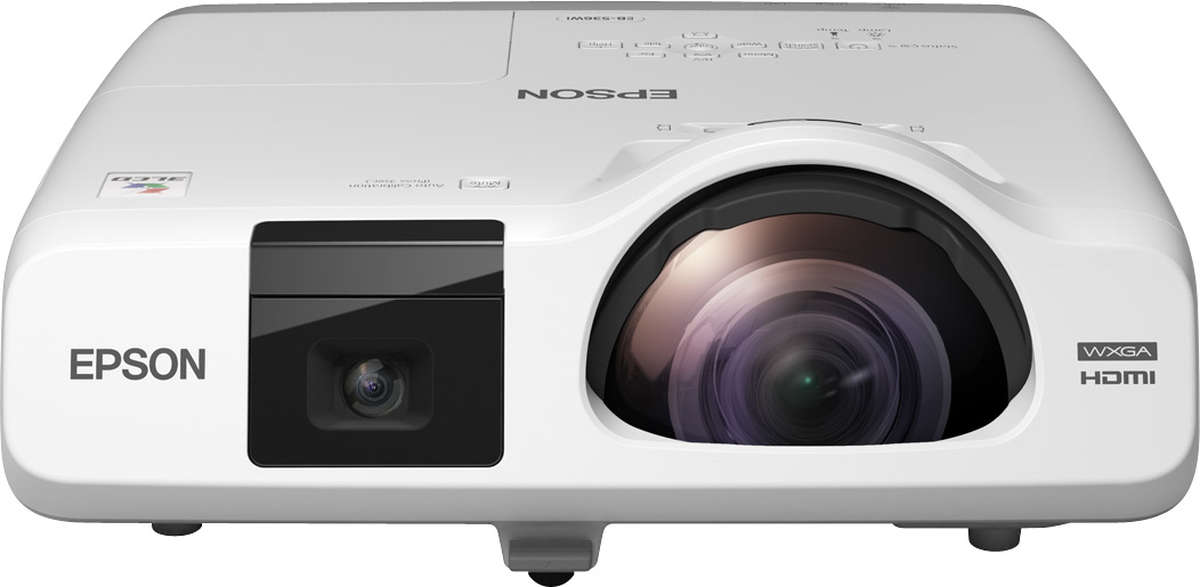

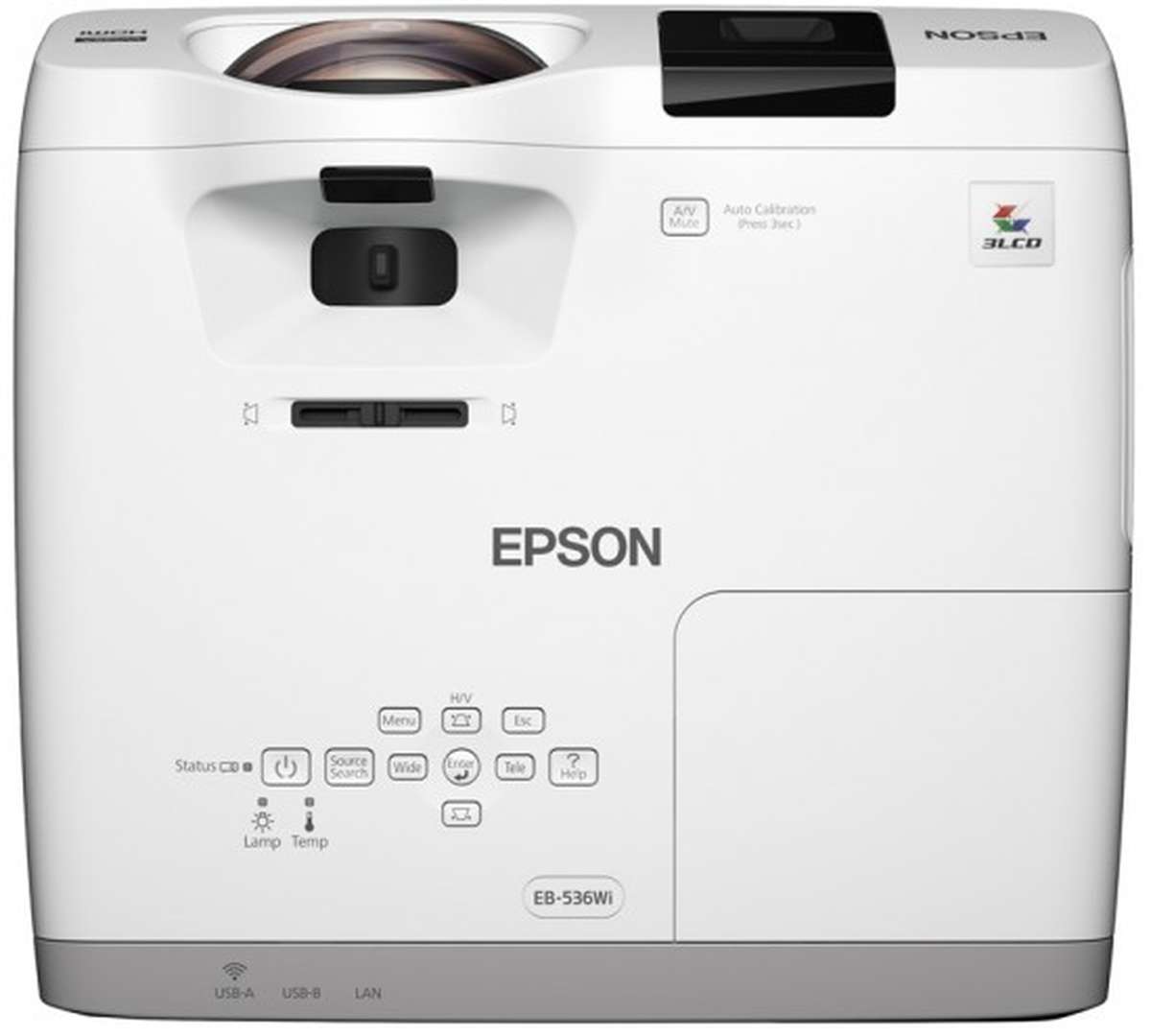

Epson EB-536Wi Projector

Epson EB-536Wi Key Features

  • LCD Display Technology
  • 3400 Lumens Colour Light Output
  • Wide XGA Resolution
  • 5000 hour lamp life (typical)
  • 16000:1 Contrast Ratio
  • 5 year return to base warranty
  • 3.9kg (8.6lb.)
  • Ultra Short Throw (0.48:1)
  • Native Widescreen
  • Horizontal & Vertical Keystone Correction
  • Interactive (Pen)
  • Display Via USB to PC Connection
  • Mouse Emulation Remote
  • Micro Lens Array
  • Logo capture and display
  • PIN Code Security
  • Digital (HDMI/DVI/DisplayPort) Input
  • sRGB Colour Mode
  • Monitor Out
  • Network Control

Epson EB-536Wi Throw Chart (Click for details)

Epson EB-536Wi Specifications

Categories Portable Widescreen
Ultra Short Throw
Manufacturer Epson (Click for rest of range)

Epson EB-536Wi Optical Features

System 1 * 0.59" LCD with MLA
Resolution WXGA (1280*800)
Aspect Ratio 16:10
ANSI Lumens 3400
ECO Mode Lumens 1900
Colour Light Output 3400 Lumens
Eco Mode CLO 1900 Lumens
Contrast 16000:1
Lamp 215W
Lamp Life 5000hrs. (10000hrs. ECO mode)
Lens F1.6, f=6.4mm ultra short throw
Interchageable No
Zoom Range Fixed
Throw Ratio 0.48 - 0.48:1
Image Size 53"-116" diagonal
Throw Distance 0.50-1.20m
Throw distance for 100" image 1.03 - 1.03m
Lens Shift No
Keystone Correction 7° (Vertical)
5° (Horizontal)

Epson EB-536Wi Compatibility

Computer Resolutions WXGA, HD, XGA, SVGA, VGA, Mac
Video Resolutions

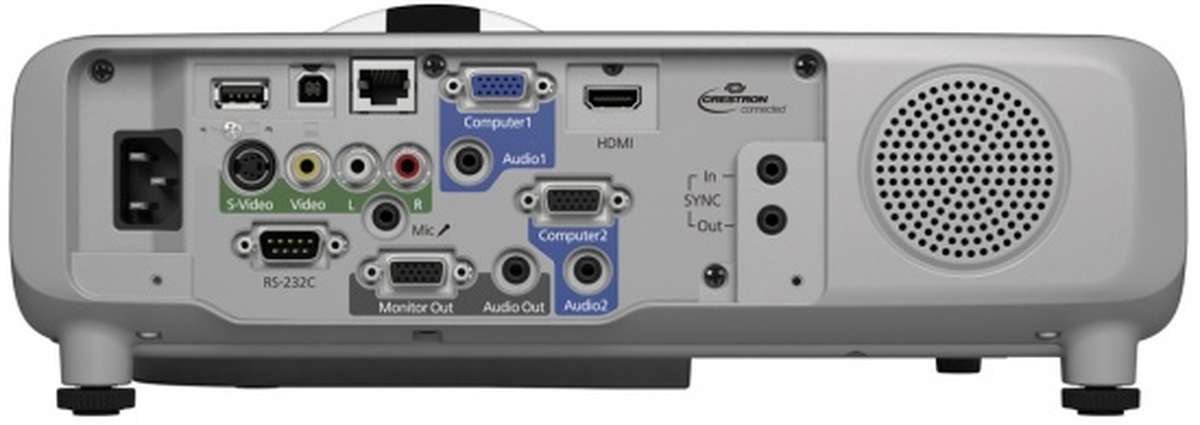

Epson EB-536Wi Terminals

RGBHV (15-pin HD) 2
S-Video 1
Composite 1
Monitor Out Yes
Audio In 3
Audio Out 1
RS-232 1
Network Ready Yes

Epson EB-536Wi General

Speakers 16w mono
Remote Control Epson EB-536Wi + Mouse Emulation
Noise 37db (29db ECO mode)
Dimensions 344*94*315mm (W*H*D)
Weight 3.90kg
Power Supply 100-240V AC; 50-60Hz
Power Consumption 298Watts
Manufacturers Warranty 5 year return to base
Light Source Warranty 5 year/1000 hours (whichever first)

Epson EB-536Wi Package Contents

Accessories Interactive pen
Main unit
Power cable
Remote control incl. batteries
Setup guide
Software (CD)
USB cable
User manual (CD)


Security Kensington lock, Security bar, Wireless LAN unit lock, Wireless LAN security, Password protection
Other features Digital zoom, Dynamic lamp control, Horizontal and vertical keystone correction, Interactive, Long lamp life, Microphone input, Wireless LAN capable
Video Colour Modes Blackboard, Dynamic, Presentation, sRGB, Theatre

Ivojo Multimedia are approved Epson dealers and supply only UK products with full UK warranties.

Epson EB-536Wi Accessories

Description Price Inc. VAT
Seddon Flight Case 05 Hard case for projectors weighing 3-5kg £113 £135.60
Epson ELPLP87 / V13H010L87 Replacement lamp £81 £97.20
Epson ELPMB23 Epson projector ceiling bracket £138 £165.60
Epson ELPSP02 15w Active speakers £118 £141.60
