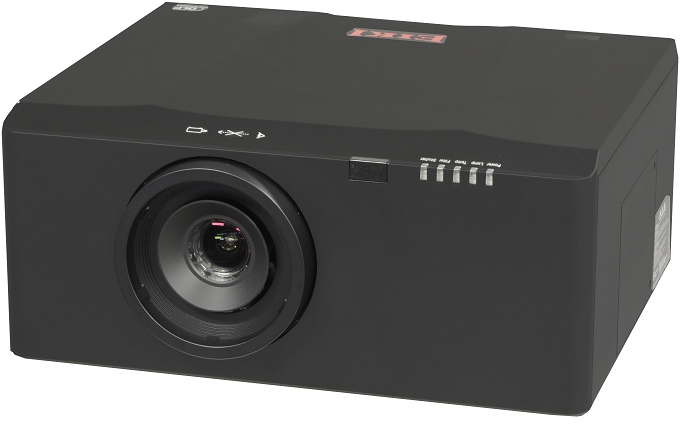

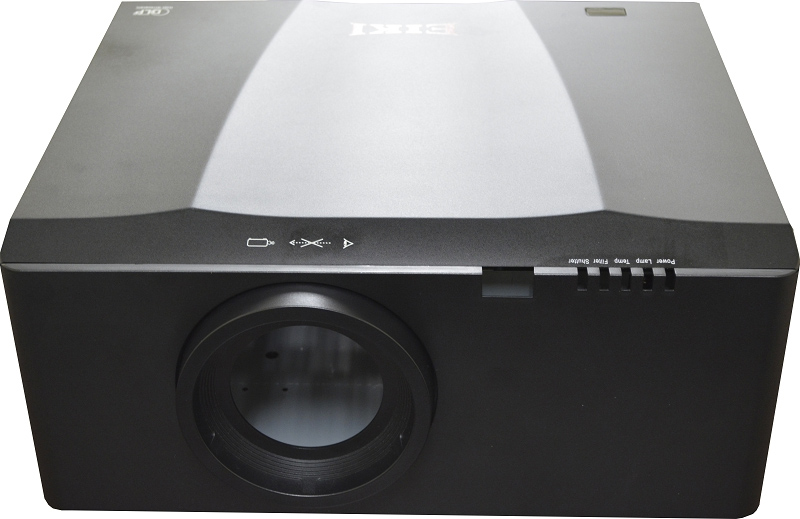

Eiki EK-610U Projector

No Longer Available

Click for Current Eiki range

Eiki EK-610U Key Features

• FREE Delivery on this item
• DLP Display Technology
• 6,500 Lumens
• 0 Optional Lenses (Click Here)
• WUXGA 1920*1200 Native Resolution
• 1,500 hour lamp life (typical)
• 4,400:1 Contrast Ratio
• 14kg (30.9lb.)
• Native Widescreen
• HDCP Compliant DVI
• Lens Shift
• Horizontal & Vertical Keystone Correction
• HDBaseT
• Interchangeable Lens System
• Can Be Installed Vertically
• Mechanical Shutter
• Network Control

• CAD, engineering and precision presentations
• Conference rooms (50 - 150 people)
• Exhibitions and large venues
• Horizontal Surface Projection
• Museums
• School Halls
• Theatres

Eiki EK-610U Specifications

Categories	HDBaseT Interchangeable Lens Lens Shift Installation HD
Manufacturer	Eiki (Click for rest of range)
Eiki EK-610U Optical Features
System	1 * 0.67" DMD
Resolution	WUXGA (1920*1200)
Aspect Ratio	16:10
Lumens	6,500
Contrast	4,400:1
Lamp	465W UHP
Lamp Life	1,500hrs. (2,000hrs. ECO mode)
Interchangeable	Yes
Image Size	50"-300" diagonal
Lens Shift	Horizontal: 15% Vertical: 50%
KeystoneCorrection	20° (Vertical)
	20° (Horizontal)
Eiki EK-610U Compatibility
Computer Resolutions	VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA
Video Resolutions	PAL, SECAM, NTSC, 1080p, 1080i, 720p

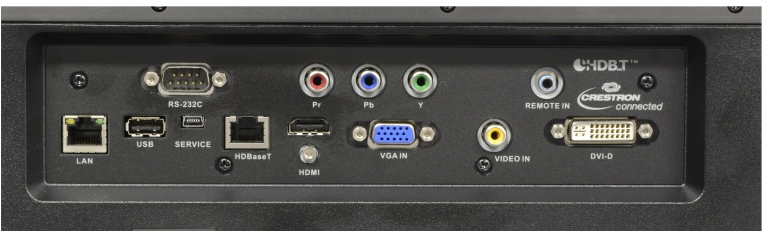

Eiki EK-610U Terminals
DVI	1 (HDCP Compliant)
HDMI	1
RGBHV (15-pin HD)	1
Component	1
Composite	1
USB	2
RS-232	1
HDBaseT	1
Network Ready	Yes
Eiki EK-610U General
Speakers	No

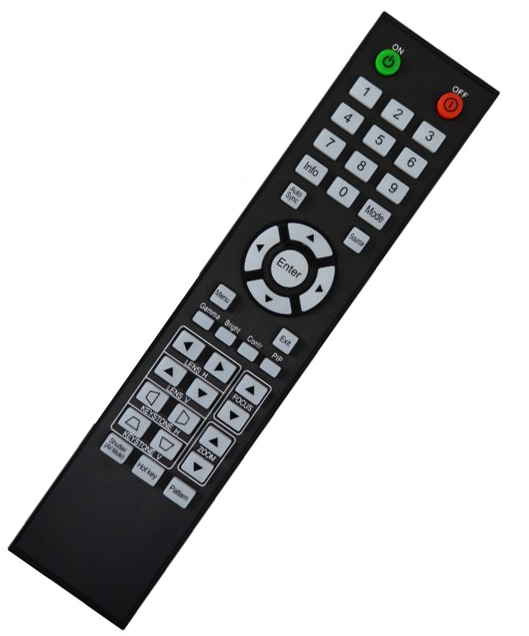

Remote Control	Eiki EK-610U only
Noise	37db (34db ECO mode)
Dimensions	205*452*388mm (W*H*D)
Weight	14.00kg
Power Supply	100-240V AC; 50-60Hz
Power Consumption	580Watts
Manufacturers Warranty	5 years/6000 hours (whichever first)
Light Source Warranty	4 years/2000 hours (whichever first)
Eiki EK-610U Package Contents
Accessories	Quick Start Guide VGA Computer Input Cable (Dsub15 to Dsub15) 6.0 ft (1.8 m) Detachable Power Cord Remote Control (with 2 AAA Batteries)

Ivojo Multimedia are approved Eiki dealers and supply only UK products with full UK warranties.

Eiki EK-610U Optional Lenses

Description	Price	Inc. VAT
Eiki AH-A22010 Short Throw Zoom Lens	Discontinued
Eiki AH-A22020 Short Throw Lens	Discontinued
Eiki AH-A22030 Standard Zoom Lens	Discontinued
Eiki AH-A21010 Semi-long Zoom Lens	Discontinued
