Canon LX-MH502Z Projector

No Longer Available

Click for Current Projector range

Canon LX-MH502Z Key Features

• DLP Display Technology
• 5,000 Lumens
• 1080P 1920*1080 Native Resolution
• 20,000 hour lamp life (typical)
• 50,000:1 Contrast Ratio
• 9.3kg (20.5lb.)
• 4K pixel shift function
• Wide zoom range for flexible placement
• Native Widescreen
• Lens Shift
• HDBaseT
• DICOM Simulation Mode
• sRGB Colour Mode
• Monitor Out
• Network Control

Canon LX-MH502Z
Brochure

Instruction Manual

• Boardroom Projectors
• Conference rooms (20 - 50 people)
• Home cinema and business dual use
• LED/Laser
• Medical Imaging
• Museums

Canon LX-MH502Z Specifications

Categories	HDBaseT Lens Shift Installation HD LED/Laser HD
Manufacturer	Canon (Click for rest of range)
Canon LX-MH502Z Optical Features
System	1 * 0.47" DMD
Resolution	1080P (1920*1080)
Aspect Ratio	16:9
Lumens	5,000
ECO Mode Lumens	3,750
Contrast	50,000:1
Lamp	Blue Lazer Diode
Lamp Life	20,000hrs. (20,000hrs. ECO mode)
Interchangeable	No
Zoom Range	1.6x
Throw Ratio	1.36 - 2.18:1
Image Size	60"-300" diagonal
Throw Distance	1.80-9.58m
Throw distance for 100" image	3.01 - 4.83m
Lens Shift	Vertical: 60% Horizontal: 23%
KeystoneCorrection	±30° (Vertical)
Canon LX-MH502Z Compatibility
Computer Resolutions	VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA, UHD
Video Resolutions	PAL, SECAM, NTSC, 4K, 2160p, 1080p, 1080i, 720p

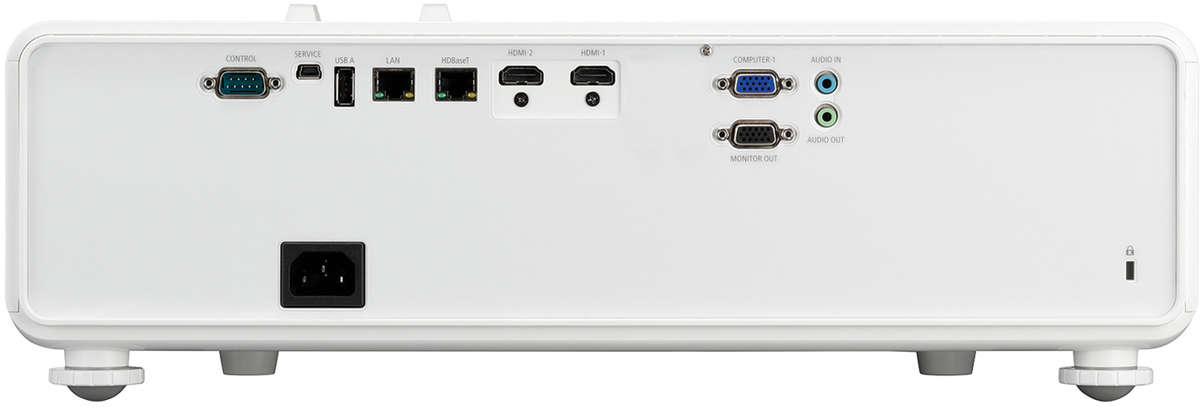

Canon LX-MH502Z Terminals
HDMI	2
RGBHV (15-pin HD)	1
Monitor Out	Yes
Audio In	1
Audio Out	1
USB	2
RS-232	1
HDBaseT	1
Network Ready	Yes
Canon LX-MH502Z General
Speakers	10w Mono
Remote Control	Canon LX-MH502Z only
Noise	37db (35db ECO mode)
Dimensions	450*154*379mm (W*H*D)
Weight	9.30kg
Power Supply	100-240V AC; 50-60Hz
Power Consumption	510Watts
Manufacturers Warranty	5 years/12000 hours (whichever first)
Light Source Warranty	5 years/12000 hours (whichever first)

Ivojo Multimedia are approved Canon dealers and supply only UK products with full UK warranties.

Canon LX-MH502Z Accessories

Projector ceiling mounts and brackets

Projection Screens

Twisted pair extenders, distribution and switching

HDMI, DVI, DisplayPort, SDI, Twisted Pair and analogue AV cables

Scalers, EDID emulators, multi-windows processors and capture hardware
