Vivitek DU7099Z-BK Projector &
Vivitek D86-1113 Projector Lens

Vivitek DU7099Z-BK

  • 7600 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 20000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 20.6kg (45.4lb.)
  • 5 years/10,000 hours (whichever first) RTB warranty
  • Vivitek DU7099Z-BK
Vivitek DU7099Z-BK & Vivitek D86-1113
£5677 (£6812.40 inc. VAT)
Availability: Please Call
Vivitek D86-1113 Lens Only
£1705 (£2046.00 inc. VAT)
Availability: Please Call

Select a Screen

Min. Throw Max Throw Foot Lamberts
2.20m 2.60m 282.43

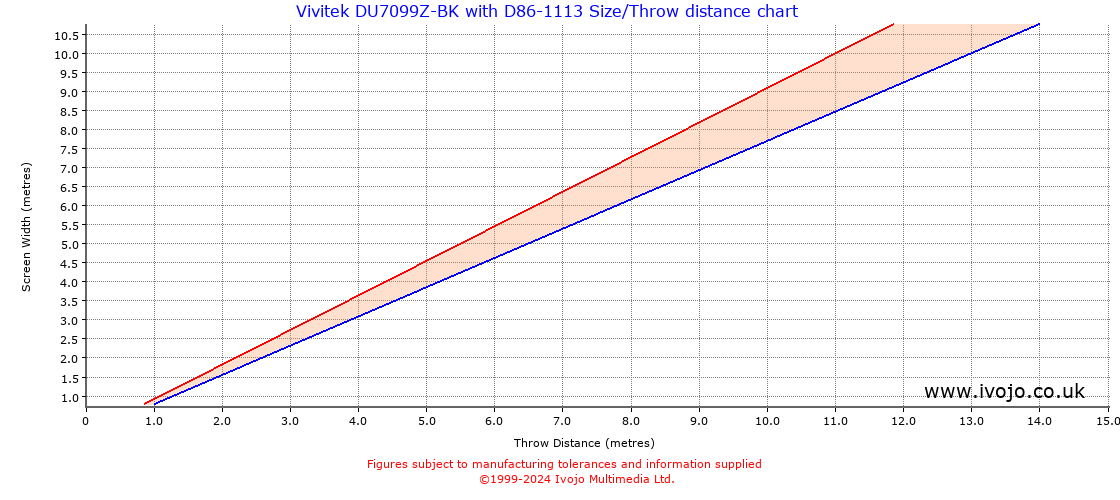

Throw Chard for Vivitek DU7099Z-BK fitted with Vivitek D86-1113

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.55 0.65 0.14 sq.m. 5020.89
1.00 0.56 1.15 1.10 1.30 0.56 sq.m. 1255.22
1.50 0.84 1.72 1.65 1.95 1.27 sq.m. 557.88
2.00 1.12 2.29 2.20 2.60 2.25 sq.m. 313.81
2.50 1.41 2.87 2.75 3.25 3.52 sq.m. 200.84
3.00 1.69 3.44 3.30 3.90 5.06 sq.m. 139.47
4.00 2.25 4.59 4.40 5.20 9.00 sq.m. 78.45
5.00 2.81 5.74 5.50 6.50 14.06 sq.m. 50.21

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.77 0.91
2 1.54 1.82
3 2.31 2.73
4 3.08 3.64
5 3.85 4.55
6 4.62 5.45
7 5.38 6.36
8 6.15 7.27

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
