Sony VPL-FW65 Projector &
Sony VPLL-Z3024 Projector Lens

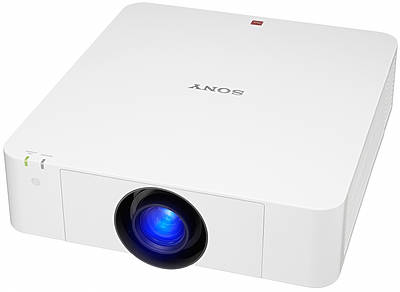

Sony VPL-FW65
- 6300 ANSI Lumens
- WXGA 1280*800 Native Resolution
- 2000:1 Contrast Ratio
- 3000 hour lamp life (typical)
- Lens Shift function
- 13kg (28.7lb.)
- 3 year/12,000hrs. Collect and Return warranty
- Sony VPL-FW65
Sony VPL-FW65 & Sony VPLL-Z3024
Sony VPLL-Z3024
Suitable For
Sony VPLL-Z3024 Lens Only
£1408 (£1689.60 inc. VAT)
Availability: In stock
Availability: In stock
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
4.68m | 6.38m | 234.12 |
Screen Size Table (Figures in metres)
Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
0.50 | 0.28 | 0.57 | 1.17 | 1.59 | 0.14 sq.m. | 4162.06 |
1.00 | 0.56 | 1.15 | 2.34 | 3.19 | 0.56 sq.m. | 1040.51 |
1.50 | 0.84 | 1.72 | 3.51 | 4.79 | 1.27 sq.m. | 462.45 |
2.00 | 1.12 | 2.29 | 4.68 | 6.38 | 2.25 sq.m. | 260.13 |
2.50 | 1.41 | 2.87 | 5.85 | 7.97 | 3.52 sq.m. | 166.48 |
3.00 | 1.69 | 3.44 | 7.02 | 9.57 | 5.06 sq.m. | 115.61 |
4.00 | 2.25 | 4.59 | 9.36 | 12.76 | 9.00 sq.m. | 65.03 |
5.00 | 2.81 | 5.74 | 11.70 | 15.95 | 14.06 sq.m. | 41.62 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.
Throw Distance Table (Figures in metres)
Distance | Minimum Width | Maximum Width |
1 | 0.31 | 0.43 |
2 | 0.63 | 0.85 |
3 | 0.94 | 1.28 |
4 | 1.25 | 1.71 |
5 | 1.57 | 2.14 |
6 | 1.88 | 2.56 |
7 | 2.19 | 2.99 |
8 | 2.51 | 3.42 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
