Optoma ZU1700 Projector &
Optoma BX-CTA22 Projector Lens

Optoma ZU1700

  • 14500 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 2000000:1 Contrast Ratio
  • 30000 hour lamp life (typical)
  • Lens Shift function
  • 50kg (110.2lb.)
  • 3 year Return To Base warranty
  • Optoma ZU1700
Optoma ZU1700 & Optoma BX-CTA22
£27131 (£32557.20 inc. VAT)
Availability: Please Call
Optoma BX-CTA22 Lens Only
£4685 (£5622.00 inc. VAT)
Availability: In stock

Select a Screen

Min. Throw Max Throw Foot Lamberts
4.00m 8.00m 538.84

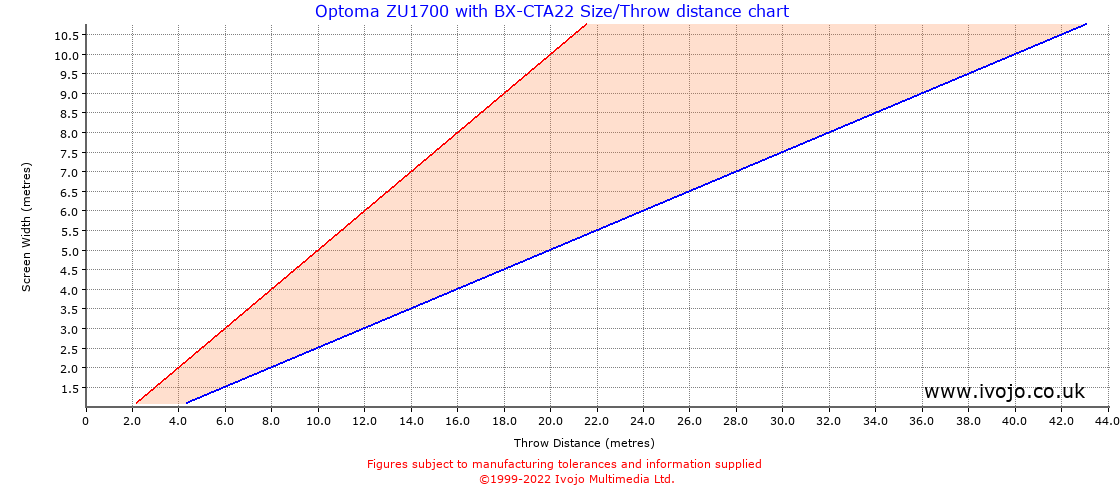

Throw Chard for Optoma ZU1700 fitted with Optoma BX-CTA22

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 1.00 2.00 0.14 sq.m. 9579.34
1.00 0.56 1.15 2.00 4.00 0.56 sq.m. 2394.83
1.50 0.84 1.72 3.00 6.00 1.27 sq.m. 1064.37
2.00 1.12 2.29 4.00 8.00 2.25 sq.m. 598.71
2.50 1.41 2.87 5.00 10.00 3.52 sq.m. 383.17
3.00 1.69 3.44 6.00 12.00 5.06 sq.m. 266.09
4.00 2.25 4.59 8.00 16.00 9.00 sq.m. 149.68
5.00 2.81 5.74 10.00 20.00 14.06 sq.m. 95.79

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.25 0.50
2 0.50 1.00
3 0.75 1.50
4 1.00 2.00
5 1.25 2.50
6 1.50 3.00
7 1.75 3.50
8 2.00 4.00

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
