Vivitek DU7098Z-WH Projector &
Vivitek VL907G Projector Lens
Vivitek DU7098Z-WH
- 7000 ANSI Lumens
- WUXGA 1920*1200 Native Resolution
- 20000:1 Contrast Ratio
- 20000 hour lamp life (typical)
- Lens Shift function
- 25kg (55.1lb.)
- 5 years warranty
- Vivitek DU7098Z-WH
Vivitek DU7098Z-WH & Vivitek VL907G
Vivitek VL907G
Suitable For
Vivitek VL907G Lens Only
£848 (£1017.60 inc. VAT)
Availability: In stock
Availability: In stock
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
2.20m | 2.60m | 260.13 |

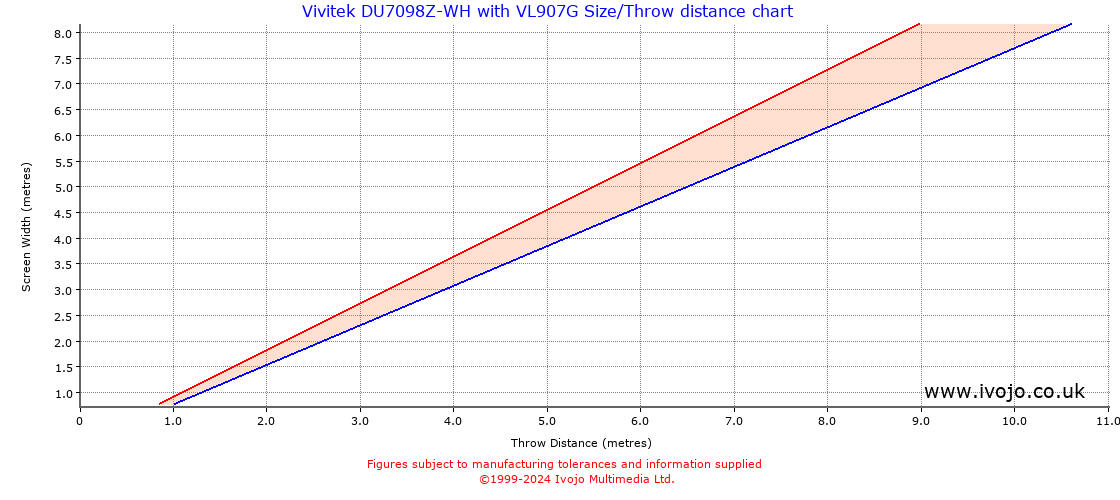

![Throw Chard for Vivitek DU7098Z-WH fitted with Vivitek VL907G](images/throw-chart/large/vivitek/vivitek-du7098z-wh-vl907g.jpg)
Screen Size Table (Figures in metres)
Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
0.50 | 0.28 | 0.57 | 0.55 | 0.65 | 0.14 sq.m. | 4624.51 |
1.00 | 0.56 | 1.15 | 1.10 | 1.30 | 0.56 sq.m. | 1156.13 |
1.50 | 0.84 | 1.72 | 1.65 | 1.95 | 1.27 sq.m. | 513.83 |
2.00 | 1.12 | 2.29 | 2.20 | 2.60 | 2.25 sq.m. | 289.03 |
2.50 | 1.41 | 2.87 | 2.75 | 3.25 | 3.52 sq.m. | 184.98 |
3.00 | 1.69 | 3.44 | 3.30 | 3.90 | 5.06 sq.m. | 128.46 |
4.00 | 2.25 | 4.59 | 4.40 | 5.20 | 9.00 sq.m. | 72.26 |
5.00 | 2.81 | 5.74 | 5.50 | 6.50 | 14.06 sq.m. | 46.25 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.
Throw Distance Table (Figures in metres)
Distance | Minimum Width | Maximum Width |
1 | 0.77 | 0.91 |
2 | 1.54 | 1.82 |
3 | 2.31 | 2.73 |
4 | 3.08 | 3.64 |
5 | 3.85 | 4.55 |
6 | 4.62 | 5.45 |
7 | 5.38 | 6.36 |
8 | 6.15 | 7.27 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
