Vivitek DU9800Z Projector &
Vivitek D98-1215 Projector Lens
Vivitek DU9800Z
- 18000 ANSI Lumens
- WUXGA 1920*1200 Native Resolution
- 10000:1 Contrast Ratio
- 20000 hour lamp life (typical)
- Lens Shift function
- 48kg (105.8lb.)
- 5 year Return to base warranty
- Vivitek DU9800Z
Vivitek DU9800Z & Vivitek D98-1215
£16961 (£20353.20 inc. VAT)
Availability: Please Call
Availability: Please Call
Vivitek D98-1215
Suitable For
Vivitek D98-1215 Lens Only
£2939 (£3526.80 inc. VAT)
Availability: Please Call
Availability: Please Call
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
|
2.50m | 3.12m | 668.90 |
Screen Size Table (Figures in metres)
| Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
| 0.50 | 0.28 | 0.57 | 0.62 | 0.78 | 0.14 sq.m. | 11891.59 |
| 1.00 | 0.56 | 1.15 | 1.25 | 1.56 | 0.56 sq.m. | 2972.90 |
| 1.50 | 0.84 | 1.72 | 1.88 | 2.34 | 1.27 sq.m. | 1321.29 |
| 2.00 | 1.12 | 2.29 | 2.50 | 3.12 | 2.25 sq.m. | 743.22 |
| 2.50 | 1.41 | 2.87 | 3.12 | 3.90 | 3.52 sq.m. | 475.66 |
| 3.00 | 1.69 | 3.44 | 3.75 | 4.68 | 5.06 sq.m. | 330.32 |
| 4.00 | 2.25 | 4.59 | 5.00 | 6.24 | 9.00 sq.m. | 185.81 |
| 5.00 | 2.81 | 5.74 | 6.25 | 7.80 | 14.06 sq.m. | 118.92 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

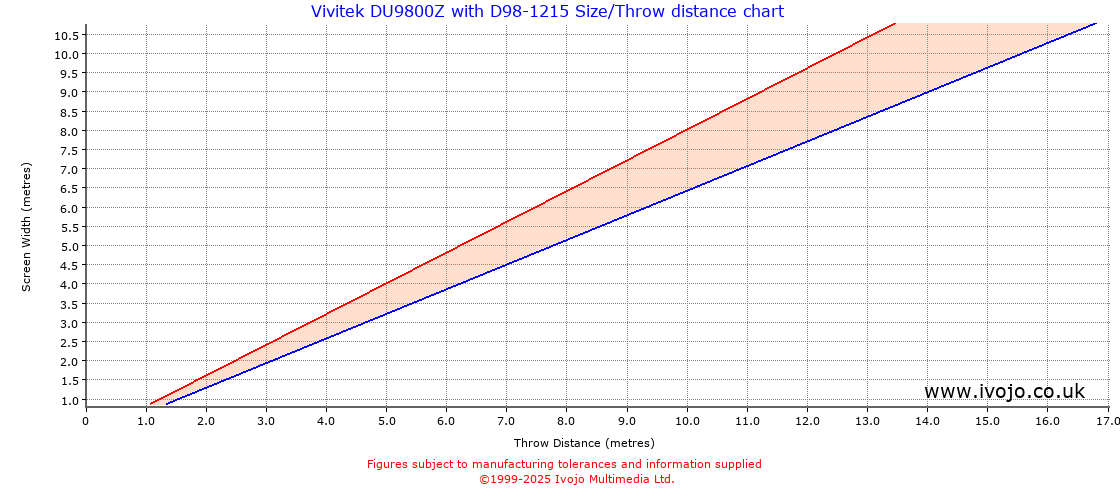

Throw Distance Table (Figures in metres)
| Distance | Minimum Width | Maximum Width |
| 1 | 0.64 | 0.80 |
| 2 | 1.28 | 1.60 |
| 3 | 1.92 | 2.40 |
| 4 | 2.56 | 3.20 |
| 5 | 3.21 | 4.00 |
| 6 | 3.85 | 4.80 |
| 7 | 4.49 | 5.60 |
| 8 | 5.13 | 6.40 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
