Vivitek DU8190Z Projector &
Vivitek D88-WF18501 Projector Lens

Vivitek DU8190Z projector lens image

Vivitek DU8190Z

  • 10000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 10000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 28kg (61.7lb.)
  • 5 year Return to base warranty
  • Vivitek DU8190Z
Vivitek DU8190Z & Vivitek D88-WF18501
£9054 (£10864.80 inc. VAT)
Availability: Please Call
Vivitek D88-WF18501 projector lens image

Vivitek D88-WF18501
Suitable For

Vivitek D88-WF18501 Lens Only
£1833 (£2199.60 inc. VAT)
Availability: Please Call

Select a Screen

 Min. Throw Max Throw Foot Lamberts
1.52m 1.52m 371.61

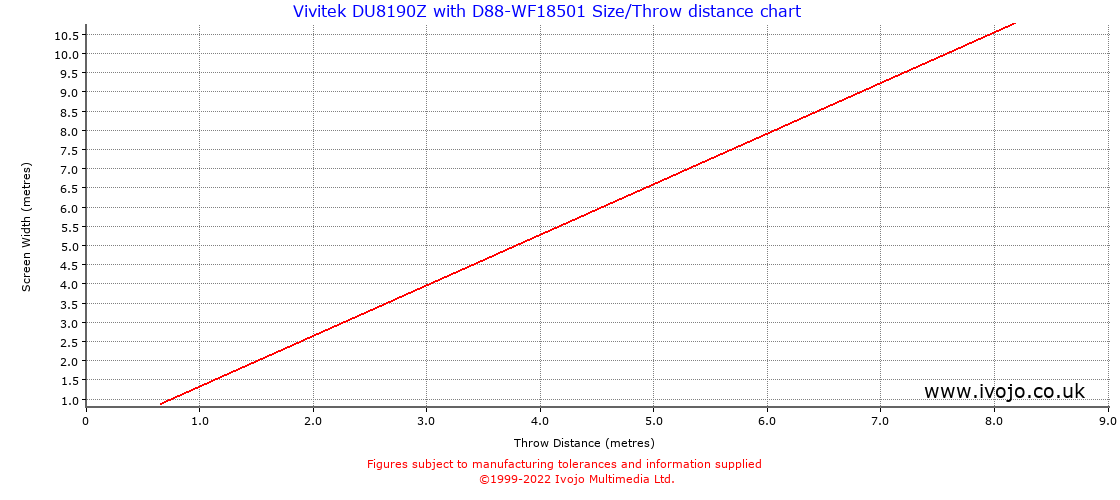

Throw Chard for Vivitek DU8190Z fitted with Vivitek D88-WF18501

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.38 0.38 0.14 sq.m. 6606.44
1.00 0.56 1.15 0.76 0.76 0.56 sq.m. 1651.61
1.50 0.84 1.72 1.14 1.14 1.27 sq.m. 734.05
2.00 1.12 2.29 1.52 1.52 2.25 sq.m. 412.90
2.50 1.41 2.87 1.90 1.90 3.52 sq.m. 264.26
3.00 1.69 3.44 2.28 2.28 5.06 sq.m. 183.51
4.00 2.25 4.59 3.04 3.04 9.00 sq.m. 103.23
5.00 2.81 5.74 3.80 3.80 14.06 sq.m. 66.06

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 1.32 1.32
2 2.63 2.63
3 3.95 3.95
4 5.26 5.26
5 6.58 6.58
6 7.89 7.89
7 9.21 9.21
8 10.53 10.53

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
