Vivitek DK10000Z-BK Projector &
Vivitek D88-UWZ01 Projector Lens

Vivitek DK10000Z-BK projector lens image

Vivitek DK10000Z-BK

  • 10000 ANSI Lumens
  • UHD 3840*2160 Native Resolution
  • 1000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 30kg (66.1lb.)
  • 5 years/12,000 hours (whichever first) RTB warranty
  • Vivitek DK10000Z-BK
Vivitek DK10000Z-BK & Vivitek D88-UWZ01
£14827 (£17792.40 inc. VAT)
Availability: Please Call
Vivitek D88-UWZ01 projector lens image

Vivitek D88-UWZ01
Suitable For

Vivitek D88-UWZ01 Lens Only
£2208 (£2649.60 inc. VAT)
Availability: Please Call

Select a Screen

 Min. Throw Max Throw Foot Lamberts
1.50m 1.88m 412.95
Throw Chard for Vivitek DK10000Z-BK fitted with Vivitek D88-UWZ01

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.38 0.47 0.14 sq.m. 6606.44
1.00 0.56 1.15 0.75 0.94 0.56 sq.m. 1651.61
1.50 0.84 1.72 1.12 1.41 1.27 sq.m. 734.05
2.00 1.12 2.29 1.50 1.88 2.25 sq.m. 412.90
2.50 1.41 2.87 1.88 2.35 3.52 sq.m. 264.26
3.00 1.69 3.44 2.25 2.82 5.06 sq.m. 183.51
4.00 2.25 4.59 3.00 3.76 9.00 sq.m. 103.23
5.00 2.81 5.74 3.75 4.70 14.06 sq.m. 66.06

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

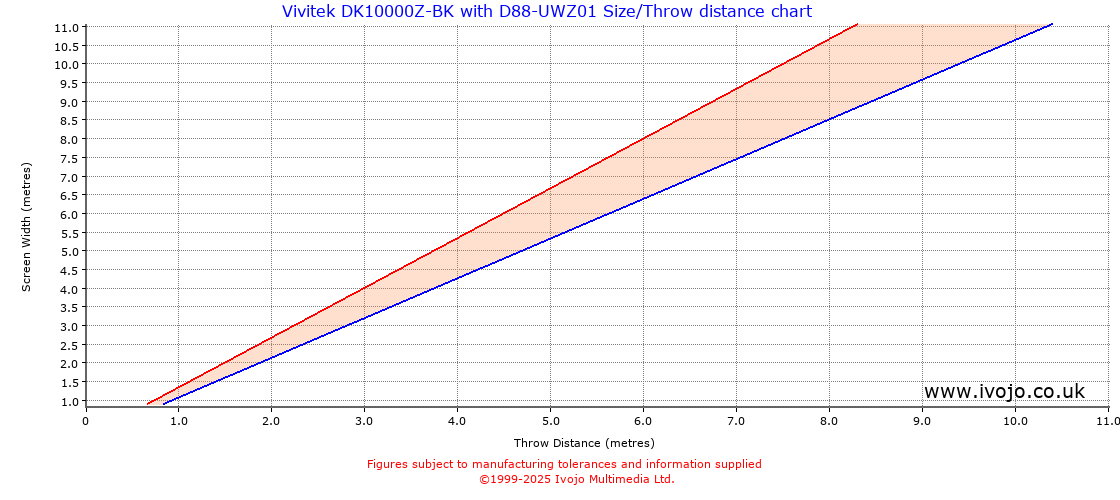

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 1.06 1.33
2 2.13 2.67
3 3.19 4.00
4 4.26 5.33
5 5.32 6.67
6 6.38 8.00
7 7.45 9.33
8 8.51 10.67

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
