Vivitek DU8190Z Projector &
Vivitek D88-SMLZ01 Projector Lens

Vivitek DU8190Z projector lens image

Vivitek DU8190Z

  • 10000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 10000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 28kg (61.7lb.)
  • 5 year Return to base warranty
  • Vivitek DU8190Z
Vivitek DU8190Z & Vivitek D88-SMLZ01
£9054 (£10864.80 inc. VAT)
Availability: Please Call
Vivitek D88-SMLZ01 projector lens image

Vivitek D88-SMLZ01
Suitable For

Vivitek D88-SMLZ01 Lens Only
£1833 (£2199.60 inc. VAT)
Availability: Please Call

Select a Screen

 Min. Throw Max Throw Foot Lamberts
4.44m 7.34m 371.61

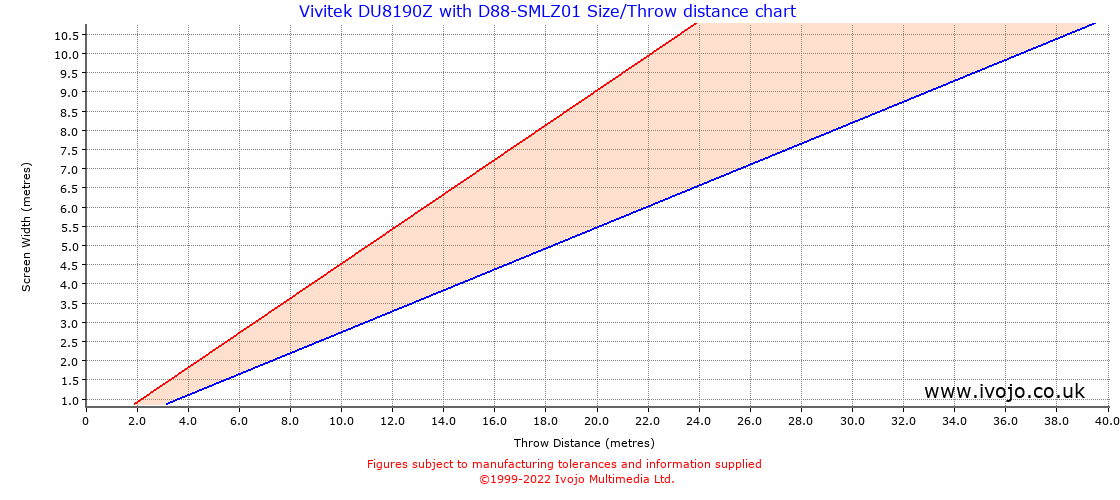

Throw Chard for Vivitek DU8190Z fitted with Vivitek D88-SMLZ01

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 1.11 1.83 0.14 sq.m. 6606.44
1.00 0.56 1.15 2.22 3.67 0.56 sq.m. 1651.61
1.50 0.84 1.72 3.33 5.50 1.27 sq.m. 734.05
2.00 1.12 2.29 4.44 7.34 2.25 sq.m. 412.90
2.50 1.41 2.87 5.55 9.18 3.52 sq.m. 264.26
3.00 1.69 3.44 6.66 11.01 5.06 sq.m. 183.51
4.00 2.25 4.59 8.88 14.68 9.00 sq.m. 103.23
5.00 2.81 5.74 11.10 18.35 14.06 sq.m. 66.06

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.27 0.45
2 0.54 0.90
3 0.82 1.35
4 1.09 1.80
5 1.36 2.25
6 1.63 2.70
7 1.91 3.15
8 2.18 3.60

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
