Vivitek DU8190Z Projector &
Vivitek D88-LOZ201 Projector Lens

Vivitek DU8190Z projector lens image

Vivitek DU8190Z

  • 10000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 10000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 28kg (61.7lb.)
  • 5 year Return to base warranty
  • Vivitek DU8190Z
Vivitek DU8190Z & Vivitek D88-LOZ201
£9664 (£11596.80 inc. VAT)
Availability: Please Call
Vivitek D88-LOZ201 projector lens image

Vivitek D88-LOZ201
Suitable For

Vivitek D88-LOZ201 Lens Only
£2443 (£2931.60 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
10.62m 16.52m 371.61

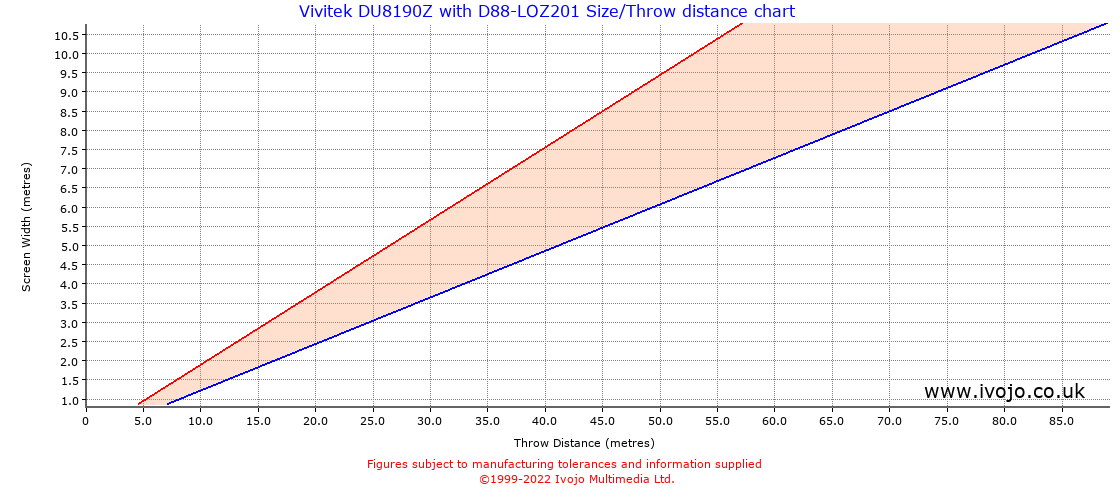

Throw Chard for Vivitek DU8190Z fitted with Vivitek D88-LOZ201

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 2.65 4.13 0.14 sq.m. 6606.44
1.00 0.56 1.15 5.31 8.26 0.56 sq.m. 1651.61
1.50 0.84 1.72 7.96 12.39 1.27 sq.m. 734.05
2.00 1.12 2.29 10.62 16.52 2.25 sq.m. 412.90
2.50 1.41 2.87 13.27 20.65 3.52 sq.m. 264.26
3.00 1.69 3.44 15.93 24.78 5.06 sq.m. 183.51
4.00 2.25 4.59 21.24 33.04 9.00 sq.m. 103.23
5.00 2.81 5.74 26.55 41.30 14.06 sq.m. 66.06

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.12 0.19
2 0.24 0.38
3 0.36 0.56
4 0.48 0.75
5 0.61 0.94
6 0.73 1.13
7 0.85 1.32
8 0.97 1.51

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
