Vivitek DU7099Z-WH Projector &
Vivitek D88-LOZ201 Projector Lens

Vivitek DU7099Z-WH projector lens image

Vivitek DU7099Z-WH

  • 7600 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 20000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 20.6kg (45.4lb.)
  • 5 years/10,000 hours (whichever first) RTB warranty
  • Vivitek DU7099Z-WH
Vivitek DU7099Z-WH & Vivitek D88-LOZ201
Vivitek D88-LOZ201 projector lens image

Vivitek D88-LOZ201
Suitable For

Vivitek D88-LOZ201 Lens Only
£2443 (£2931.60 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
10.62m 16.52m 282.43

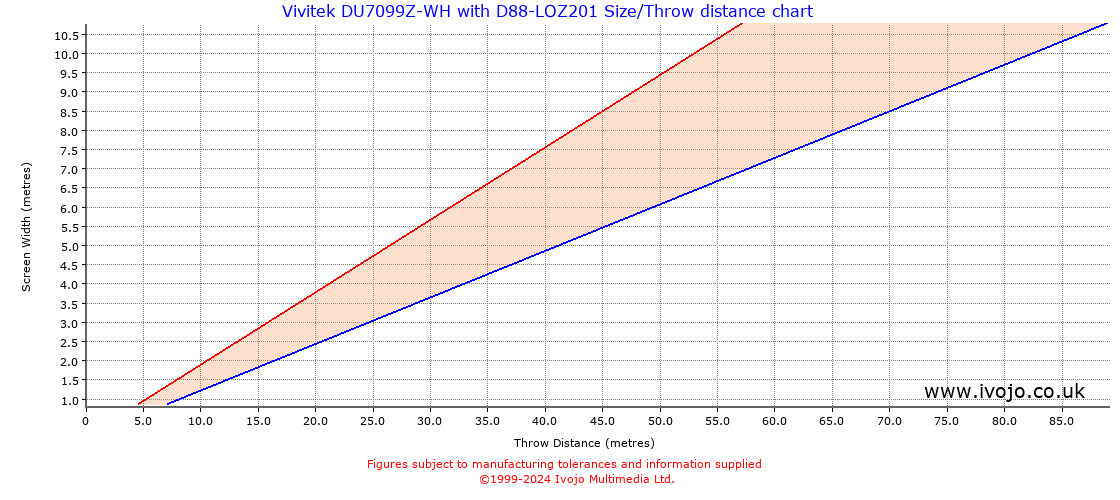

Throw Chard for Vivitek DU7099Z-WH fitted with Vivitek D88-LOZ201

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 2.65 4.13 0.14 sq.m. 5020.89
1.00 0.56 1.15 5.31 8.26 0.56 sq.m. 1255.22
1.50 0.84 1.72 7.96 12.39 1.27 sq.m. 557.88
2.00 1.12 2.29 10.62 16.52 2.25 sq.m. 313.81
2.50 1.41 2.87 13.27 20.65 3.52 sq.m. 200.84
3.00 1.69 3.44 15.93 24.78 5.06 sq.m. 139.47
4.00 2.25 4.59 21.24 33.04 9.00 sq.m. 78.45
5.00 2.81 5.74 26.55 41.30 14.06 sq.m. 50.21

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.12 0.19
2 0.24 0.38
3 0.36 0.56
4 0.48 0.75
5 0.61 0.94
6 0.73 1.13
7 0.85 1.32
8 0.97 1.51

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
