Vivitek DU7099Z-WH Projector &
Vivitek D86-1929 Projector Lens

Vivitek DU7099Z-WH projector lens image

Vivitek DU7099Z-WH

  • 7600 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 20000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 20.6kg (45.4lb.)
  • 5 years/10,000 hours (whichever first) RTB warranty
  • Vivitek DU7099Z-WH
Vivitek DU7099Z-WH & Vivitek D86-1929
Vivitek D86-1929 projector lens image

Vivitek D86-1929
Suitable For

Vivitek D86-1929 Lens Only
£1616 (£1939.20 inc. VAT)
Availability: Please Call

Select a Screen

 Min. Throw Max Throw Foot Lamberts
3.86m 5.80m 282.43

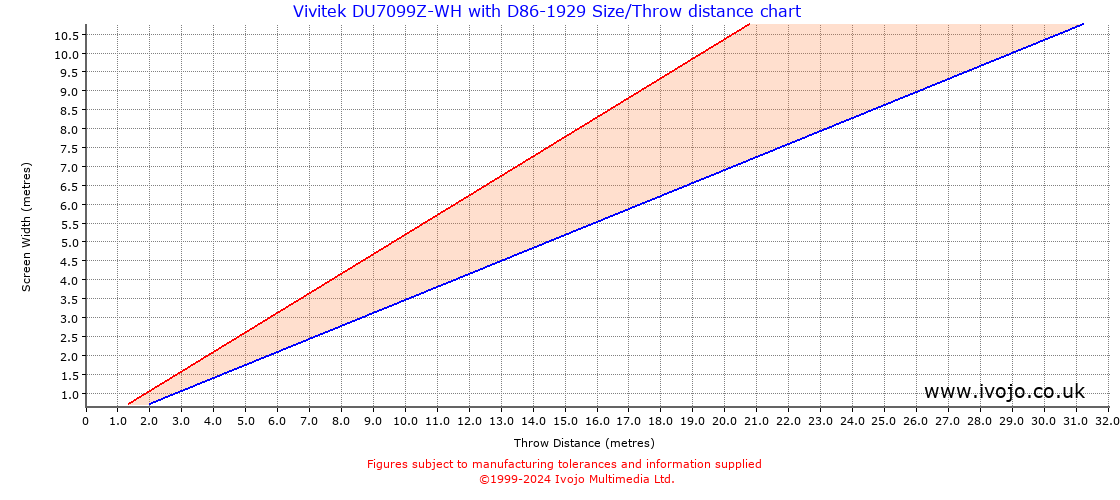

Throw Chard for Vivitek DU7099Z-WH fitted with Vivitek D86-1929

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.96 1.45 0.14 sq.m. 5020.89
1.00 0.56 1.15 1.93 2.90 0.56 sq.m. 1255.22
1.50 0.84 1.72 2.90 4.35 1.27 sq.m. 557.88
2.00 1.12 2.29 3.86 5.80 2.25 sq.m. 313.81
2.50 1.41 2.87 4.83 7.25 3.52 sq.m. 200.84
3.00 1.69 3.44 5.79 8.70 5.06 sq.m. 139.47
4.00 2.25 4.59 7.72 11.60 9.00 sq.m. 78.45
5.00 2.81 5.74 9.65 14.50 14.06 sq.m. 50.21

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.34 0.52
2 0.69 1.04
3 1.03 1.55
4 1.38 2.07
5 1.72 2.59
6 2.07 3.11
7 2.41 3.63
8 2.76 4.15

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
