Vivitek DU6298Z Projector &
Vivitek D86-1216 Projector Lens

Vivitek DU6298Z projector lens image

Vivitek DU6298Z

  • 10000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 3000000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 26kg (57.3lb.)
  • 5 year RTB warranty
  • Vivitek DU6298Z
Vivitek DU6298Z & Vivitek D86-1216
£10446 (£12535.20 inc. VAT)
Availability: Please Call
Vivitek D86-1216 projector lens image

Vivitek D86-1216
Suitable For

Vivitek D86-1216 Lens Only
£1616 (£1939.20 inc. VAT)
Availability: Please Call

Select a Screen

 Min. Throw Max Throw Foot Lamberts
2.52m 3.20m 371.61

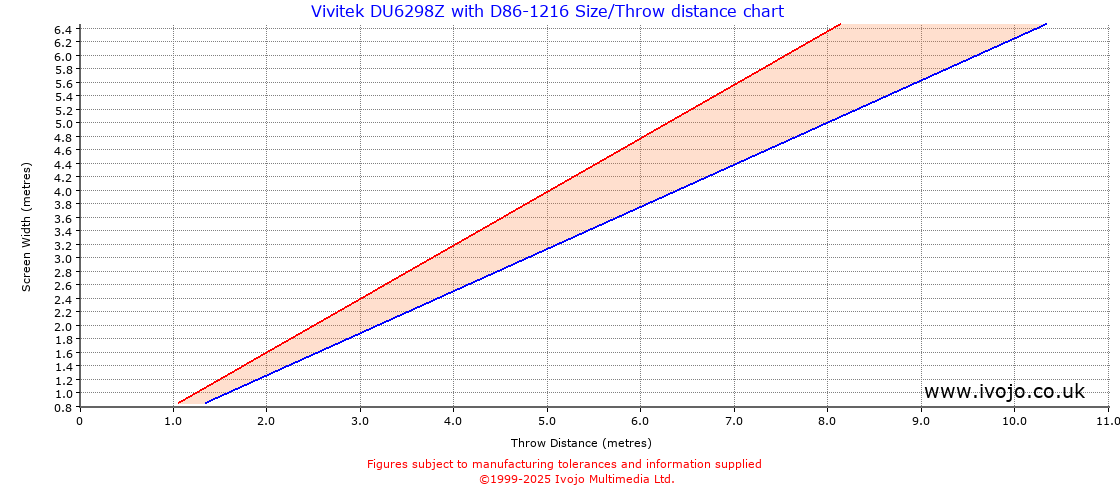

Throw Chard for Vivitek DU6298Z fitted with Vivitek D86-1216

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.63 0.80 0.14 sq.m. 6606.44
1.00 0.56 1.15 1.26 1.60 0.56 sq.m. 1651.61
1.50 0.84 1.72 1.89 2.40 1.27 sq.m. 734.05
2.00 1.12 2.29 2.52 3.20 2.25 sq.m. 412.90
2.50 1.41 2.87 3.15 4.00 3.52 sq.m. 264.26
3.00 1.69 3.44 3.78 4.80 5.06 sq.m. 183.51
4.00 2.25 4.59 5.04 6.40 9.00 sq.m. 103.23
5.00 2.81 5.74 6.30 8.00 14.06 sq.m. 66.06

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.62 0.79
2 1.25 1.59
3 1.88 2.38
4 2.50 3.17
5 3.12 3.97
6 3.75 4.76
7 4.38 5.56
8 5.00 6.35

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
