Vivitek DU7099Z-BK Projector &
Vivitek D86-0711 Projector Lens

Vivitek DU7099Z-BK projector lens image

Vivitek DU7099Z-BK

  • 7600 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 20000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 20.6kg (45.4lb.)
  • 5 years/10,000 hours (whichever first) RTB warranty
  • Vivitek DU7099Z-BK
Vivitek DU7099Z-BK & Vivitek D86-0711
£5588 (£6705.60 inc. VAT)
Availability: Please Call
Vivitek D86-0711 projector lens image

Vivitek D86-0711
Suitable For

Vivitek D86-0711 Lens Only
£1616 (£1939.20 inc. VAT)
Availability: Please Call

Select a Screen

 Min. Throw Max Throw Foot Lamberts
1.54m 2.20m 282.43

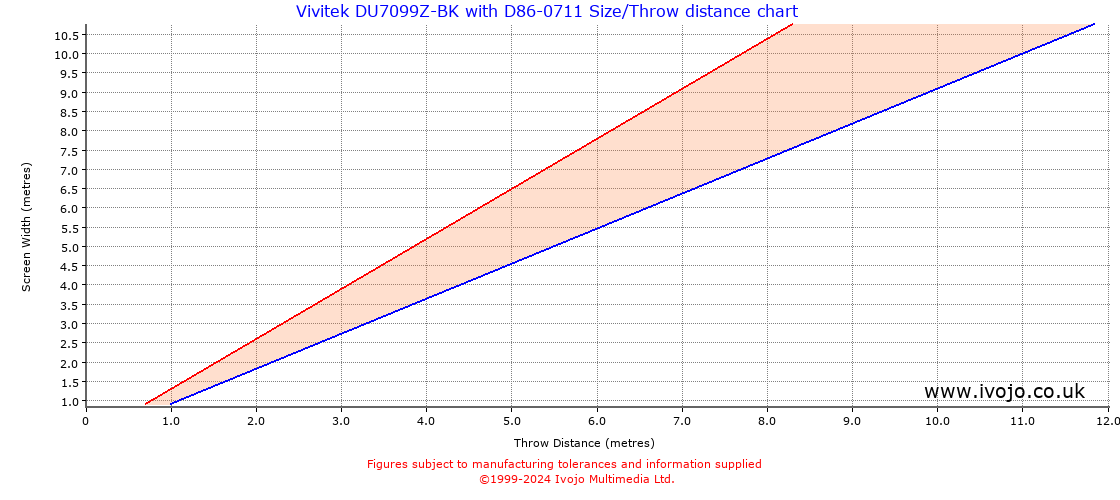

Throw Chard for Vivitek DU7099Z-BK fitted with Vivitek D86-0711

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.39 0.55 0.14 sq.m. 5020.89
1.00 0.56 1.15 0.77 1.10 0.56 sq.m. 1255.22
1.50 0.84 1.72 1.16 1.65 1.27 sq.m. 557.88
2.00 1.12 2.29 1.54 2.20 2.25 sq.m. 313.81
2.50 1.41 2.87 1.93 2.75 3.52 sq.m. 200.84
3.00 1.69 3.44 2.31 3.30 5.06 sq.m. 139.47
4.00 2.25 4.59 3.08 4.40 9.00 sq.m. 78.45
5.00 2.81 5.74 3.85 5.50 14.06 sq.m. 50.21

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.91 1.30
2 1.82 2.60
3 2.73 3.90
4 3.64 5.19
5 4.55 6.49
6 5.45 7.79
7 6.36 9.09
8 7.27 10.39

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
