Sony VPL-FHZ120 Projector &
Sony VPLL-Z4045 Projector Lens
Sony VPL-FHZ120
- 12000 ANSI Lumens
- WUXGA 1920*1200 Native Resolution
- 1000000:1 Contrast Ratio
- hour lamp life (typical)
- Lens Shift function
- 27kg (59.5lb.)
- 5 Year Return to Base warranty
- Sony VPL-FHZ120
Sony VPL-FHZ120 & Sony VPLL-Z4045
Sony VPLL-Z4045
Suitable For
Sony VPLL-Z4045 Lens Only
£3108 (£3729.60 inc. VAT)
Availability: 3-5 days
Availability: 3-5 days
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
11.12m | 15.00m | 445.93 |

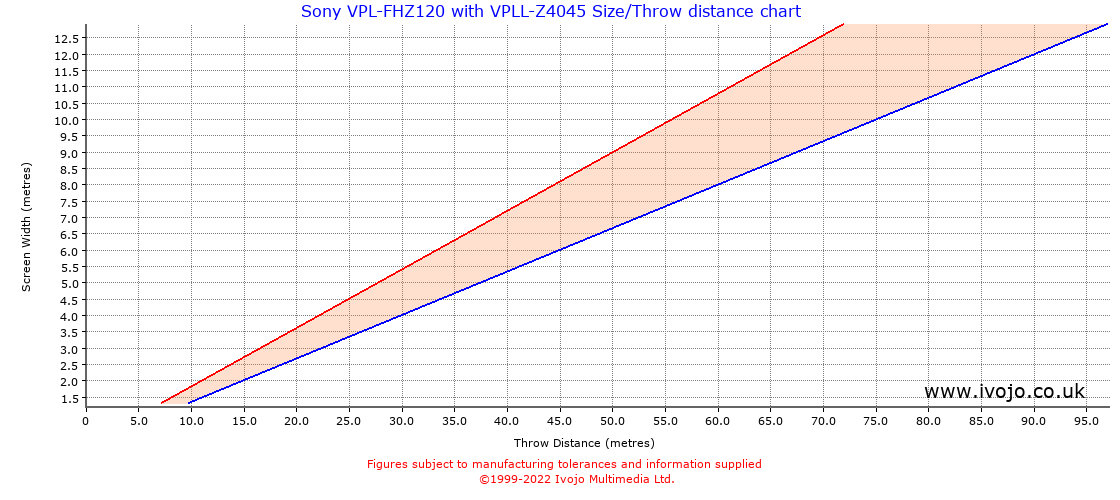

![Throw Chard for Sony VPL-FHZ120 fitted with Sony VPLL-Z4045](images/throw-chart/large/sony/sony-vpl-fhz120-vpll-z4045.jpg)
Screen Size Table (Figures in metres)
Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
0.50 | 0.28 | 0.57 | 2.78 | 3.75 | 0.14 sq.m. | 7927.73 |
1.00 | 0.56 | 1.15 | 5.56 | 7.50 | 0.56 sq.m. | 1981.93 |
1.50 | 0.84 | 1.72 | 8.34 | 11.25 | 1.27 sq.m. | 880.86 |
2.00 | 1.12 | 2.29 | 11.12 | 15.00 | 2.25 sq.m. | 495.48 |
2.50 | 1.41 | 2.87 | 13.90 | 18.75 | 3.52 sq.m. | 317.11 |
3.00 | 1.69 | 3.44 | 16.68 | 22.50 | 5.06 sq.m. | 220.21 |
4.00 | 2.25 | 4.59 | 22.24 | 30.00 | 9.00 sq.m. | 123.87 |
5.00 | 2.81 | 5.74 | 27.80 | 37.50 | 14.06 sq.m. | 79.28 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.
Throw Distance Table (Figures in metres)
Distance | Minimum Width | Maximum Width |
1 | 0.13 | 0.18 |
2 | 0.27 | 0.36 |
3 | 0.40 | 0.54 |
4 | 0.53 | 0.72 |
5 | 0.67 | 0.90 |
6 | 0.80 | 1.08 |
7 | 0.93 | 1.26 |
8 | 1.07 | 1.44 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
