Sony VPL-FHZ120LB Projector &
Sony VPLL-Z4025 Projector Lens

Sony VPL-FHZ120LB

  • 12000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 1000000:1 Contrast Ratio
  • hour lamp life (typical)
  • Lens Shift function
  • 27kg (59.5lb.)
  • 5 Year Return to Base warranty
  • Sony VPL-FHZ120LB
Sony VPL-FHZ120LB & Sony VPLL-Z4025

Sony VPLL-Z4025
Suitable For

Sony VPLL-Z4025 Lens Only
£3124 (£3748.80 inc. VAT)
Availability: Please Call

Select a Screen

Min. Throw Max Throw Foot Lamberts
6.04m 11.16m 445.93

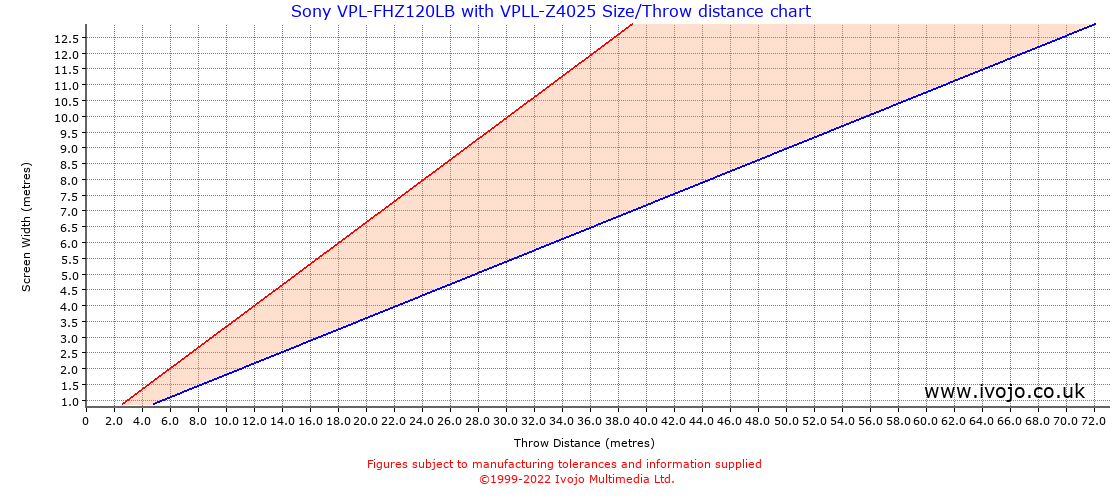

Throw Chard for Sony VPL-FHZ120LB fitted with Sony VPLL-Z4025

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 1.51 2.79 0.14 sq.m. 7927.73
1.00 0.56 1.15 3.02 5.58 0.56 sq.m. 1981.93
1.50 0.84 1.72 4.53 8.37 1.27 sq.m. 880.86
2.00 1.12 2.29 6.04 11.16 2.25 sq.m. 495.48
2.50 1.41 2.87 7.55 13.95 3.52 sq.m. 317.11
3.00 1.69 3.44 9.06 16.74 5.06 sq.m. 220.21
4.00 2.25 4.59 12.08 22.32 9.00 sq.m. 123.87
5.00 2.81 5.74 15.10 27.90 14.06 sq.m. 79.28

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.18 0.33
2 0.36 0.66
3 0.54 0.99
4 0.72 1.32
5 0.90 1.66
6 1.08 1.99
7 1.25 2.32
8 1.43 2.65

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
