Sony VPL-FHZ120LB Projector &
Sony VPLL-Z4015 Projector Lens

Sony VPL-FHZ120LB

  • 12000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 1000000:1 Contrast Ratio
  • hour lamp life (typical)
  • Lens Shift function
  • 27kg (59.5lb.)
  • 5 Year Return to Base warranty
  • Sony VPL-FHZ120LB
Sony VPL-FHZ120LB & Sony VPLL-Z4015

Sony VPLL-Z4015
Suitable For

Sony VPLL-Z4015 Lens Only
£3124 (£3748.80 inc. VAT)
Availability: 3-5 days

Select a Screen

Min. Throw Max Throw Foot Lamberts
3.70m 4.88m 445.93

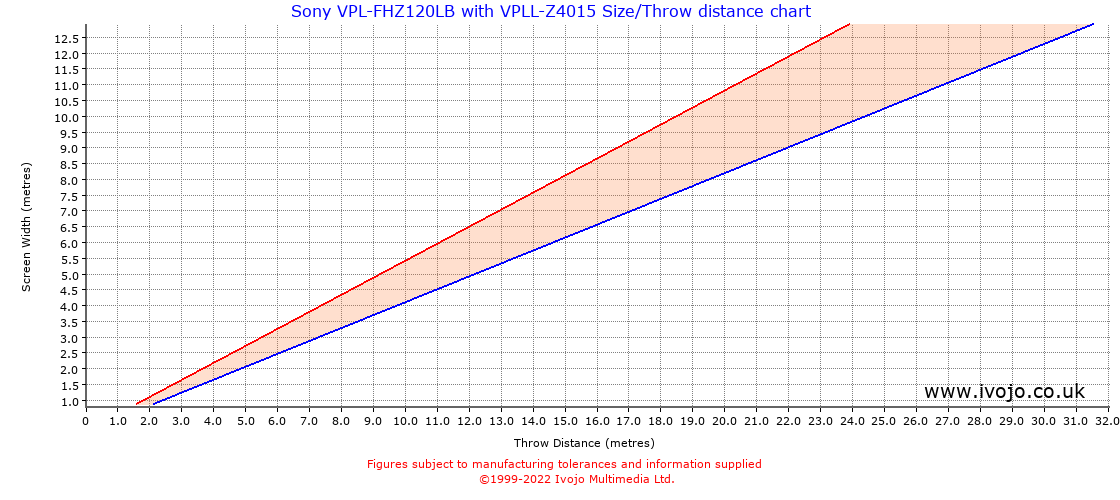

Throw Chard for Sony VPL-FHZ120LB fitted with Sony VPLL-Z4015

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.93 1.22 0.14 sq.m. 7927.73
1.00 0.56 1.15 1.85 2.44 0.56 sq.m. 1981.93
1.50 0.84 1.72 2.78 3.66 1.27 sq.m. 880.86
2.00 1.12 2.29 3.70 4.88 2.25 sq.m. 495.48
2.50 1.41 2.87 4.62 6.10 3.52 sq.m. 317.11
3.00 1.69 3.44 5.55 7.32 5.06 sq.m. 220.21
4.00 2.25 4.59 7.40 9.76 9.00 sq.m. 123.87
5.00 2.81 5.74 9.25 12.20 14.06 sq.m. 79.28

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.41 0.54
2 0.82 1.08
3 1.23 1.62
4 1.64 2.16
5 2.05 2.70
6 2.46 3.24
7 2.87 3.78
8 3.28 4.32

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
