Sony VPL-FHZ120LB Projector &
Sony VPLL-4008 Projector Lens

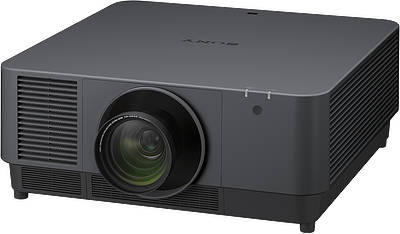

Sony VPL-FHZ120LB
- 12000 ANSI Lumens
- WUXGA 1920*1200 Native Resolution
- 1000000:1 Contrast Ratio
- hour lamp life (typical)
- Lens Shift function
- 27kg (59.5lb.)
- 5 Year Return to Base warranty
- Sony VPL-FHZ120LB
Sony VPL-FHZ120LB & Sony VPLL-4008
Sony VPLL-4008
Suitable For
Sony VPLL-4008 Lens Only
£4543 (£5451.60 inc. VAT)
Availability: 3-5 days
Availability: 3-5 days
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
|
2.00m | 2.00m | 445.93 |
Screen Size Table (Figures in metres)
| Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
| 0.50 | 0.28 | 0.57 | 0.50 | 0.50 | 0.14 sq.m. | 7927.73 |
| 1.00 | 0.56 | 1.15 | 1.00 | 1.00 | 0.56 sq.m. | 1981.93 |
| 1.50 | 0.84 | 1.72 | 1.50 | 1.50 | 1.27 sq.m. | 880.86 |
| 2.00 | 1.12 | 2.29 | 2.00 | 2.00 | 2.25 sq.m. | 495.48 |
| 2.50 | 1.41 | 2.87 | 2.50 | 2.50 | 3.52 sq.m. | 317.11 |
| 3.00 | 1.69 | 3.44 | 3.00 | 3.00 | 5.06 sq.m. | 220.21 |
| 4.00 | 2.25 | 4.59 | 4.00 | 4.00 | 9.00 sq.m. | 123.87 |
| 5.00 | 2.81 | 5.74 | 5.00 | 5.00 | 14.06 sq.m. | 79.28 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

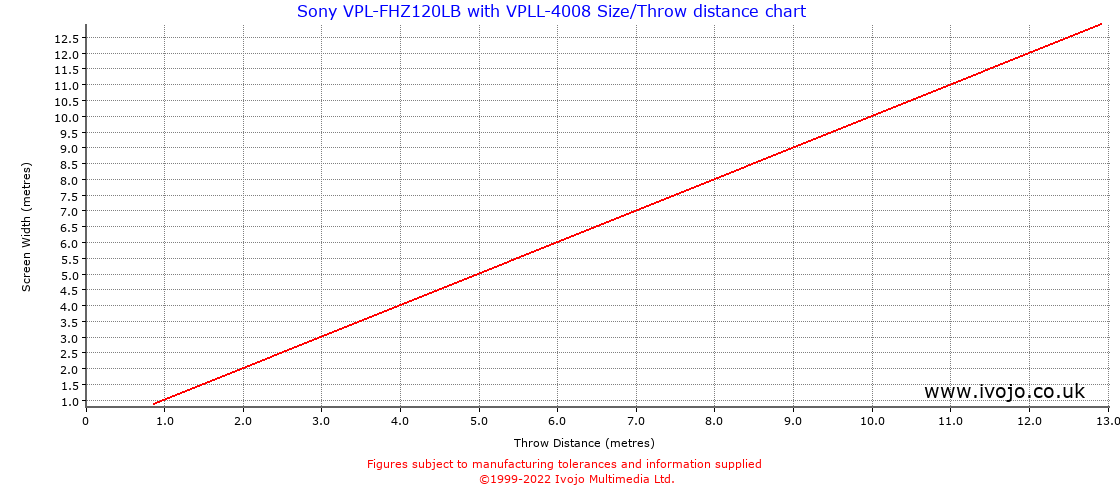

Throw Distance Table (Figures in metres)
| Distance | Minimum Width | Maximum Width |
| 1 | 1.00 | 1.00 |
| 2 | 2.00 | 2.00 |
| 3 | 3.00 | 3.00 |
| 4 | 4.00 | 4.00 |
| 5 | 5.00 | 5.00 |
| 6 | 6.00 | 6.00 |
| 7 | 7.00 | 7.00 |
| 8 | 8.00 | 8.00 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
