Sony VPL-FHZ120 Projector &
Sony VPLL-4008 Projector Lens
Sony VPL-FHZ120
- 12000 ANSI Lumens
- WUXGA 1920*1200 Native Resolution
- 1000000:1 Contrast Ratio
- hour lamp life (typical)
- Lens Shift function
- 27kg (59.5lb.)
- 5 Year Return to Base warranty
- Sony VPL-FHZ120
Sony VPL-FHZ120 & Sony VPLL-4008
Sony VPLL-4008
Suitable For
Sony VPLL-4008 Lens Only
£4543 (£5451.60 inc. VAT)
Availability: 3-5 days
Availability: 3-5 days
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
2.00m | 2.00m | 445.93 |

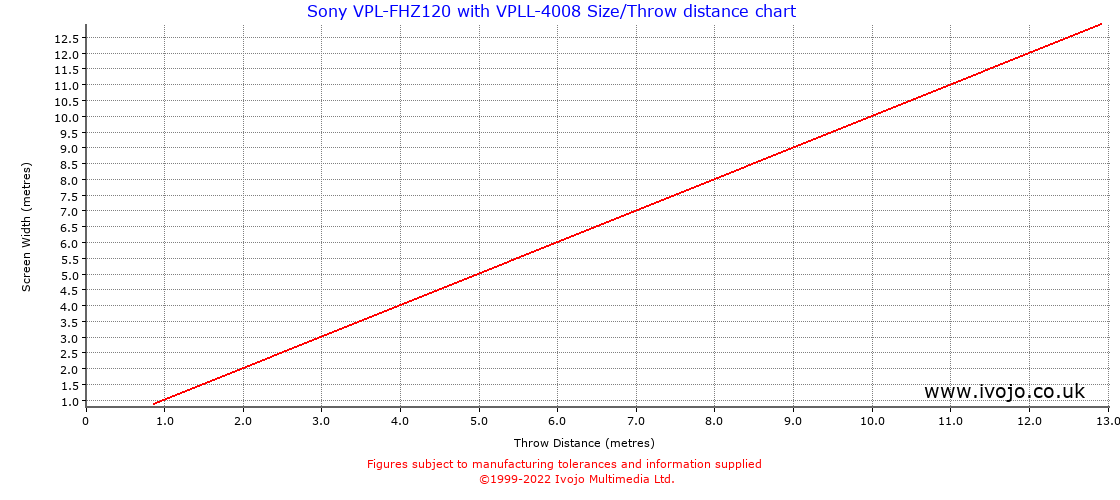

![Throw Chard for Sony VPL-FHZ120 fitted with Sony VPLL-4008](images/throw-chart/large/sony/sony-vpl-fhz120-vpll-4008.jpg)
Screen Size Table (Figures in metres)
Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
0.50 | 0.28 | 0.57 | 0.50 | 0.50 | 0.14 sq.m. | 7927.73 |
1.00 | 0.56 | 1.15 | 1.00 | 1.00 | 0.56 sq.m. | 1981.93 |
1.50 | 0.84 | 1.72 | 1.50 | 1.50 | 1.27 sq.m. | 880.86 |
2.00 | 1.12 | 2.29 | 2.00 | 2.00 | 2.25 sq.m. | 495.48 |
2.50 | 1.41 | 2.87 | 2.50 | 2.50 | 3.52 sq.m. | 317.11 |
3.00 | 1.69 | 3.44 | 3.00 | 3.00 | 5.06 sq.m. | 220.21 |
4.00 | 2.25 | 4.59 | 4.00 | 4.00 | 9.00 sq.m. | 123.87 |
5.00 | 2.81 | 5.74 | 5.00 | 5.00 | 14.06 sq.m. | 79.28 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.
Throw Distance Table (Figures in metres)
Distance | Minimum Width | Maximum Width |
1 | 1.00 | 1.00 |
2 | 2.00 | 2.00 |
3 | 3.00 | 3.00 |
4 | 4.00 | 4.00 |
5 | 5.00 | 5.00 |
6 | 6.00 | 6.00 |
7 | 7.00 | 7.00 |
8 | 8.00 | 8.00 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
