Sharp V801U B Projector &
Sharp XP-50ZL Projector Lens

Sharp V801U B projector lens image

Sharp V801U B

  • 8000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 3000000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 11.2kg (24.7lb.)
  • 3 year collect/repair/return warranty
  • Sharp V801U B
Sharp V801U B & Sharp XP-50ZL
£5085 (£6102.00 inc. VAT)
Availability:
Sharp XP-50ZL projector lens image

Sharp XP-50ZL
Suitable For

Sharp XP-50ZL Lens Only
£1705 (£2046.00 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
1.20m 1.50m 297.29

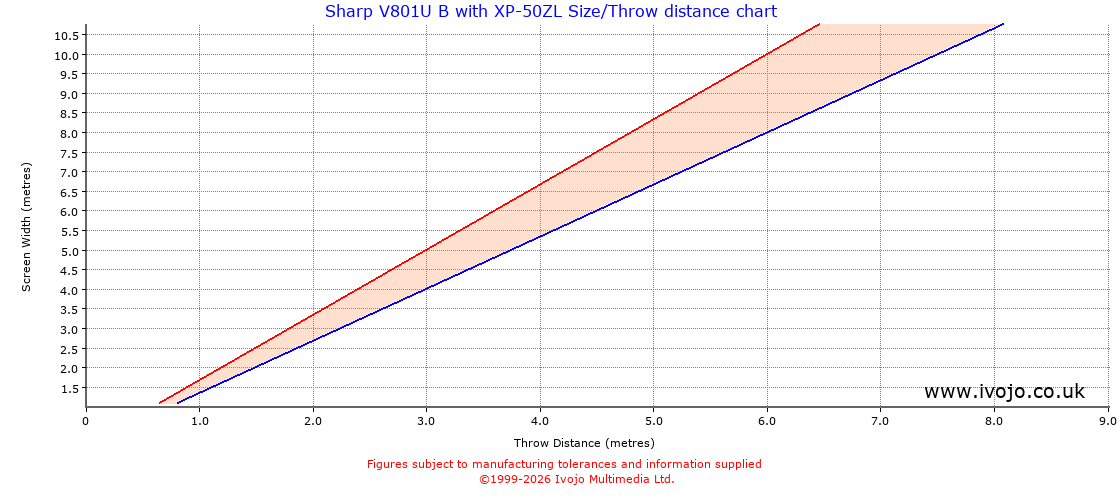

Throw Chard for Sharp V801U B fitted with Sharp XP-50ZL

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.30 0.38 0.14 sq.m. 5285.15
1.00 0.56 1.15 0.60 0.75 0.56 sq.m. 1321.29
1.50 0.84 1.72 0.90 1.12 1.27 sq.m. 587.24
2.00 1.12 2.29 1.20 1.50 2.25 sq.m. 330.32
2.50 1.41 2.87 1.50 1.88 3.52 sq.m. 211.41
3.00 1.69 3.44 1.80 2.25 5.06 sq.m. 146.81
4.00 2.25 4.59 2.40 3.00 9.00 sq.m. 82.58
5.00 2.81 5.74 3.00 3.75 14.06 sq.m. 52.85

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 1.33 1.67
2 2.67 3.33
3 4.00 5.00
4 5.33 6.67
5 6.67 8.33
6 8.00 10.00
7 9.33 11.67
8 10.67 13.33

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
