Sharp V801U B Projector &
Sharp XP-43ZL Projector Lens

Sharp V801U B projector lens image

Sharp V801U B

  • 8000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 3000000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 11.2kg (24.7lb.)
  • 3 year collect/repair/return warranty
  • Sharp V801U B
Sharp V801U B & Sharp XP-43ZL
£4123 (£4947.60 inc. VAT)
Availability: 7-10 Days
Sharp XP-43ZL projector lens image

Sharp XP-43ZL
Suitable For

Sharp XP-43ZL Lens Only
£743 (£891.60 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
5.98m 11.86m 297.29

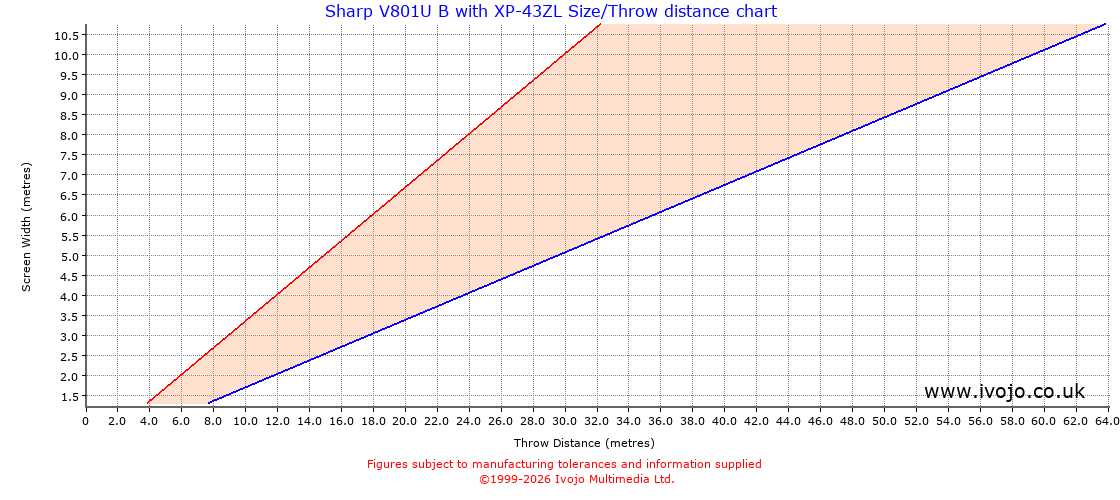

Throw Chard for Sharp V801U B fitted with Sharp XP-43ZL

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 1.50 2.96 0.14 sq.m. 5285.15
1.00 0.56 1.15 2.99 5.93 0.56 sq.m. 1321.29
1.50 0.84 1.72 4.49 8.89 1.27 sq.m. 587.24
2.00 1.12 2.29 5.98 11.86 2.25 sq.m. 330.32
2.50 1.41 2.87 7.48 14.82 3.52 sq.m. 211.41
3.00 1.69 3.44 8.97 17.79 5.06 sq.m. 146.81
4.00 2.25 4.59 11.96 23.72 9.00 sq.m. 82.58
5.00 2.81 5.74 14.95 29.65 14.06 sq.m. 52.85

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.17 0.33
2 0.34 0.67
3 0.51 1.00
4 0.67 1.34
5 0.84 1.67
6 1.01 2.01
7 1.18 2.34
8 1.35 2.68

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
