Panasonic PT-EZ590EJ Projector &
Panasonic ET-ELW31 Projector Lens

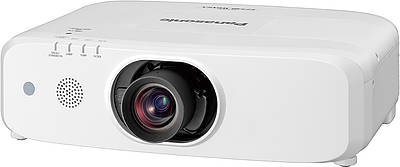

Panasonic PT-EZ590EJ projector lens image

Panasonic PT-EZ590EJ

  • 5400 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 10000:1 Contrast Ratio
  • 4000 hour lamp life (typical)
  • Lens Shift function
  • 8.4kg (18.5lb.)
  • 3 year collect/return with loan if available warranty
  • Panasonic PT-EZ590EJ
Panasonic PT-EZ590EJ & Panasonic ET-ELW31
Panasonic ET-ELW31 projector lens image

Panasonic ET-ELW31
Suitable For

Panasonic ET-ELW31 Lens Only
£2316 (£2779.20 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
1.48m 1.94m 200.67

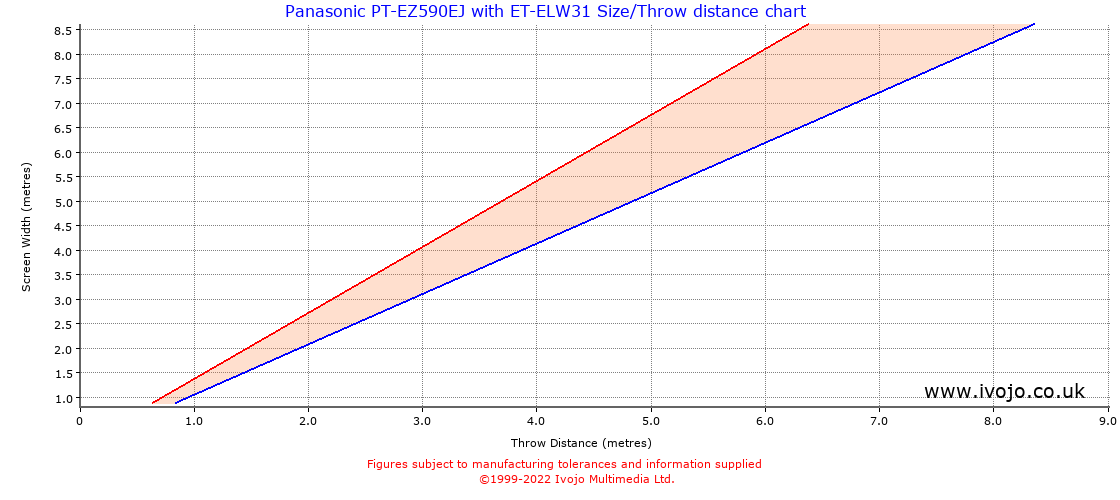

Throw Chard for Panasonic PT-EZ590EJ fitted with Panasonic ET-ELW31

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.37 0.48 0.14 sq.m. 3567.48
1.00 0.56 1.15 0.74 0.97 0.56 sq.m. 891.87
1.50 0.84 1.72 1.11 1.46 1.27 sq.m. 396.39
2.00 1.12 2.29 1.48 1.94 2.25 sq.m. 222.97
2.50 1.41 2.87 1.85 2.42 3.52 sq.m. 142.70
3.00 1.69 3.44 2.22 2.91 5.06 sq.m. 99.10
4.00 2.25 4.59 2.96 3.88 9.00 sq.m. 55.74
5.00 2.81 5.74 3.70 4.85 14.06 sq.m. 35.67

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 1.03 1.35
2 2.06 2.70
3 3.09 4.05
4 4.12 5.41
5 5.15 6.76
6 6.19 8.11
7 7.22 9.46
8 8.25 10.81

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
