Panasonic PT-EZ770ZE Projector &
Panasonic ET-ELW21 Projector Lens

Panasonic PT-EZ770ZE projector lens image

Panasonic PT-EZ770ZE

  • 6500 ANSI Lumens
  • WXGA 1280*800 Native Resolution
  • 5000:1 Contrast Ratio
  • 3000 hour lamp life (typical)
  • Lens Shift function
  • 10.6kg (23.4lb.)
  • 3 year collect/return with loan if available warranty
  • Panasonic PT-EZ770ZE
Panasonic PT-EZ770ZE & Panasonic ET-ELW21
Panasonic ET-ELW21 projector lens image

Panasonic ET-ELW21
Suitable For

Panasonic ET-ELW21 Lens Only
£1065 (£1278.00 inc. VAT)
Availability: 3-5 days


Select a Screen

 Min. Throw Max Throw Foot Lamberts
1.56m 1.56m 241.55

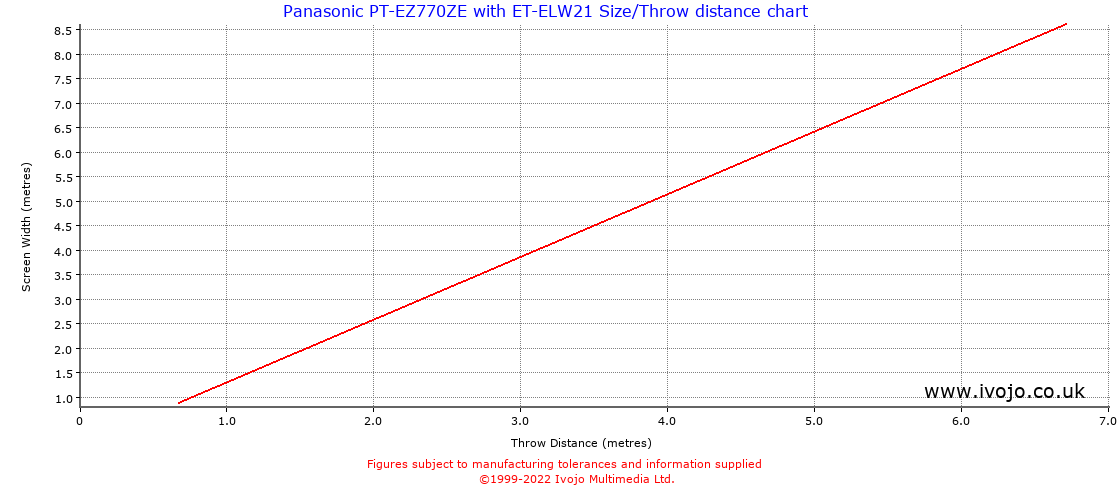

Throw Chard for Panasonic PT-EZ770ZE fitted with Panasonic ET-ELW21

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.39 0.39 0.14 sq.m. 4294.18
1.00 0.56 1.15 0.78 0.78 0.56 sq.m. 1073.55
1.50 0.84 1.72 1.17 1.17 1.27 sq.m. 477.13
2.00 1.12 2.29 1.56 1.56 2.25 sq.m. 268.39
2.50 1.41 2.87 1.95 1.95 3.52 sq.m. 171.77
3.00 1.69 3.44 2.34 2.34 5.06 sq.m. 119.28
4.00 2.25 4.59 3.12 3.12 9.00 sq.m. 67.10
5.00 2.81 5.74 3.90 3.90 14.06 sq.m. 42.94

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 1.28 1.28
2 2.56 2.56
3 3.85 3.85
4 5.13 5.13
5 6.41 6.41
6 7.69 7.69
7 8.97 8.97
8 10.26 10.26

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
