Panasonic PT-EX800ZLE Projector &
Panasonic ET-ELW20 Projector Lens

Panasonic PT-EX800ZLE projector lens image

Panasonic PT-EX800ZLE

  • 7500 ANSI Lumens
  • XGA 1024*768 Native Resolution
  • 5000:1 Contrast Ratio
  • 3000 hour lamp life (typical)
  • Lens Shift function
  • 10.6kg (23.4lb.)
  • 3 year collect/return with loan if available warranty
  • Panasonic PT-EX800ZLE
Panasonic PT-EX800ZLE & Panasonic ET-ELW20
Panasonic ET-ELW20 projector lens image

Panasonic ET-ELW20
Suitable For

Panasonic ET-ELW20 Lens Only
£1286 (£1543.20 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
2.50m 3.42m 232.20

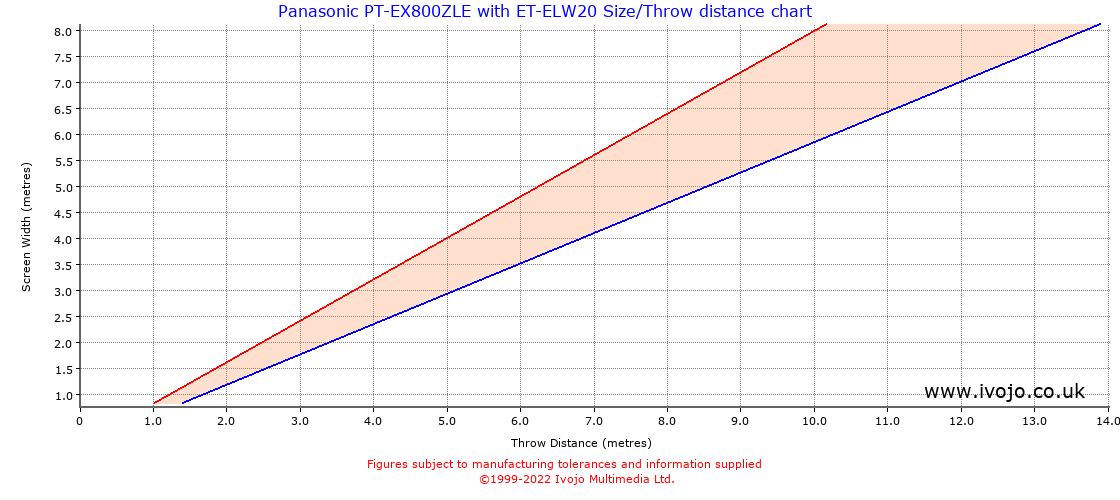

Throw Chard for Panasonic PT-EX800ZLE fitted with Panasonic ET-ELW20

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.38 0.62 0.62 0.85 0.19 sq.m. 3716.12
1.00 0.75 1.25 1.25 1.71 0.75 sq.m. 929.03
1.50 1.12 1.88 1.88 2.56 1.69 sq.m. 412.90
2.00 1.50 2.50 2.50 3.42 3.00 sq.m. 232.26
2.50 1.88 3.12 3.12 4.28 4.69 sq.m. 148.64
3.00 2.25 3.75 3.75 5.13 6.75 sq.m. 103.23
4.00 3.00 5.00 5.00 6.84 12.00 sq.m. 58.06
5.00 3.75 6.25 6.25 8.55 18.75 sq.m. 37.16

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.58 0.80
2 1.17 1.60
3 1.75 2.40
4 2.34 3.20
5 2.92 4.00
6 3.51 4.80
7 4.09 5.60
8 4.68 6.40

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
