Panasonic PT-MZ780WEJ Projector &
Panasonic ET-ELU20 Projector Lens

Panasonic PT-MZ780WEJ projector lens image

Panasonic PT-MZ780WEJ

  • 7000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 3000000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 17.6kg (38.8lb.)
  • 3 year return to base warranty
  • Panasonic PT-MZ780WEJ
Panasonic PT-MZ780WEJ & Panasonic ET-ELU20
£10867 (£13040.40 inc. VAT)
Availability: In Stock
Panasonic ET-ELU20 projector lens image

Panasonic ET-ELU20
Suitable For

Panasonic ET-ELU20 Lens Only
£7424 (£8908.80 inc. VAT)
Availability: In stock

Select a Screen

 Min. Throw Max Throw Foot Lamberts
0.66m 0.70m 260.13

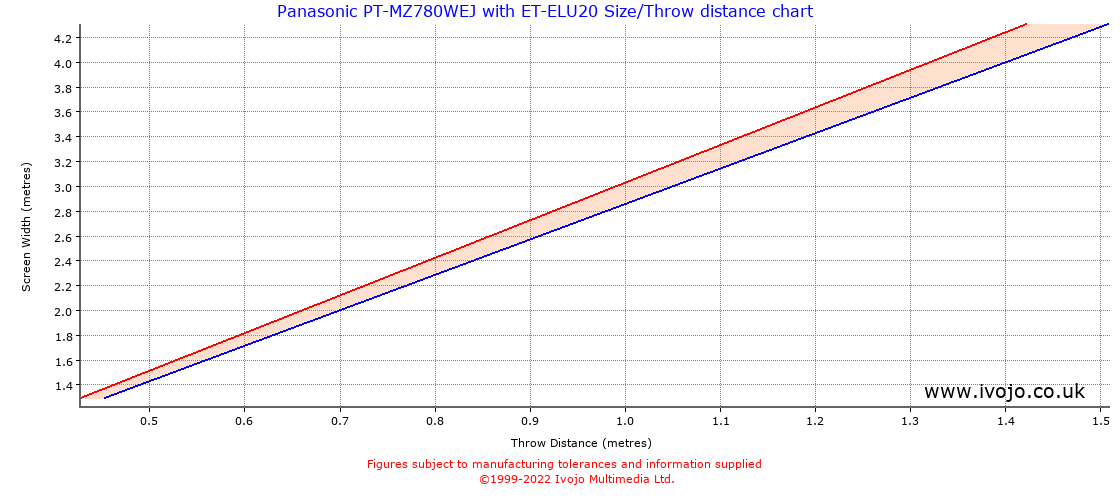

Throw Chard for Panasonic PT-MZ780WEJ fitted with Panasonic ET-ELU20

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.17 0.17 0.14 sq.m. 4624.51
1.00 0.56 1.15 0.33 0.35 0.56 sq.m. 1156.13
1.50 0.84 1.72 0.49 0.52 1.27 sq.m. 513.83
2.00 1.12 2.29 0.66 0.70 2.25 sq.m. 289.03
2.50 1.41 2.87 0.83 0.88 3.52 sq.m. 184.98
3.00 1.69 3.44 0.99 1.05 5.06 sq.m. 128.46
4.00 2.25 4.59 1.32 1.40 9.00 sq.m. 72.26
5.00 2.81 5.74 1.65 1.75 14.06 sq.m. 46.25

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 2.86 3.03
2 5.71 6.06
3 8.57 9.09
4 11.43 12.12
5 14.29 15.15
6 17.14 18.18
7 20.00 21.21
8 22.86 24.24

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
