Panasonic PT-EX520EJ Projector &
Panasonic ET-ELT31 Projector Lens

Panasonic PT-EX520EJ projector lens image

Panasonic PT-EX520EJ

  • 5300 ANSI Lumens
  • XGA 1024*768 Native Resolution
  • 2000:1 Contrast Ratio
  • 4000 hour lamp life (typical)
  • Lens Shift function
  • 8.4kg (18.5lb.)
  • 3 year collect/return with loan if available warranty
  • Panasonic PT-EX520EJ
Panasonic PT-EX520EJ & Panasonic ET-ELT31
Panasonic ET-ELT31 projector lens image

Panasonic ET-ELT31
Suitable For

Panasonic ET-ELT31 Lens Only
£1342 (£1610.40 inc. VAT)
Availability: In stock

Select a Screen

 Min. Throw Max Throw Foot Lamberts
8.64m 15.70m 164.09

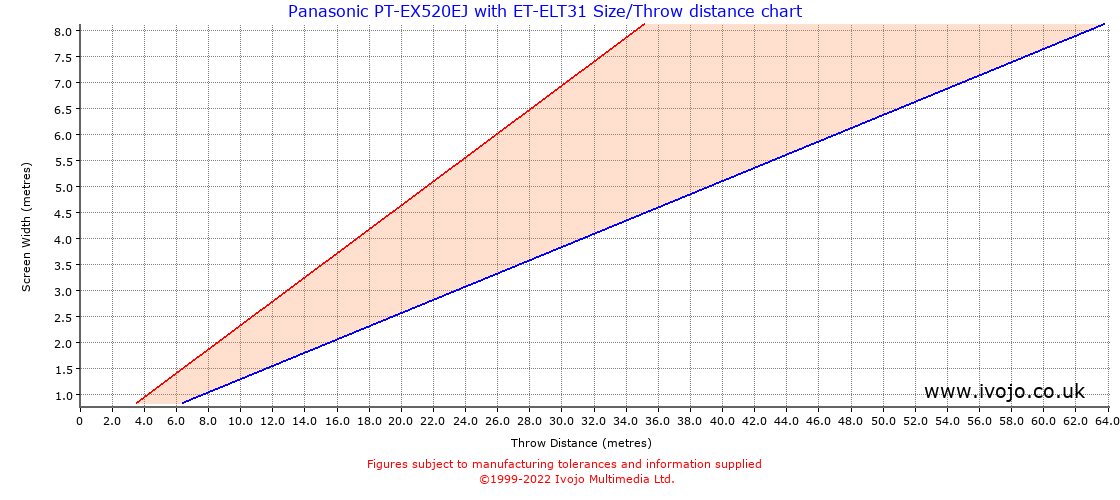

Throw Chard for Panasonic PT-EX520EJ fitted with Panasonic ET-ELT31

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.38 0.62 2.16 3.92 0.19 sq.m. 2626.06
1.00 0.75 1.25 4.32 7.85 0.75 sq.m. 656.51
1.50 1.12 1.88 6.48 11.77 1.69 sq.m. 291.78
2.00 1.50 2.50 8.64 15.70 3.00 sq.m. 164.13
2.50 1.88 3.12 10.80 19.62 4.69 sq.m. 105.04
3.00 2.25 3.75 12.96 23.55 6.75 sq.m. 72.95
4.00 3.00 5.00 17.28 31.40 12.00 sq.m. 41.03
5.00 3.75 6.25 21.60 39.25 18.75 sq.m. 26.26

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.13 0.23
2 0.25 0.46
3 0.38 0.69
4 0.51 0.93
5 0.64 1.16
6 0.76 1.39
7 0.89 1.62
8 1.02 1.85

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
