Panasonic PT-EZ590EJ Projector &
Panasonic ET-ELT30 Projector Lens

Panasonic PT-EZ590EJ projector lens image

Panasonic PT-EZ590EJ

  • 5400 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 10000:1 Contrast Ratio
  • 4000 hour lamp life (typical)
  • Lens Shift function
  • 8.4kg (18.5lb.)
  • 3 year collect/return with loan if available warranty
  • Panasonic PT-EZ590EJ
Panasonic PT-EZ590EJ & Panasonic ET-ELT30
Panasonic ET-ELT30 projector lens image

Panasonic ET-ELT30
Suitable For

Panasonic ET-ELT30 Lens Only
£1342 (£1610.40 inc. VAT)
Availability: In stock


Select a Screen

 Min. Throw Max Throw Foot Lamberts
4.50m 8.12m 200.67

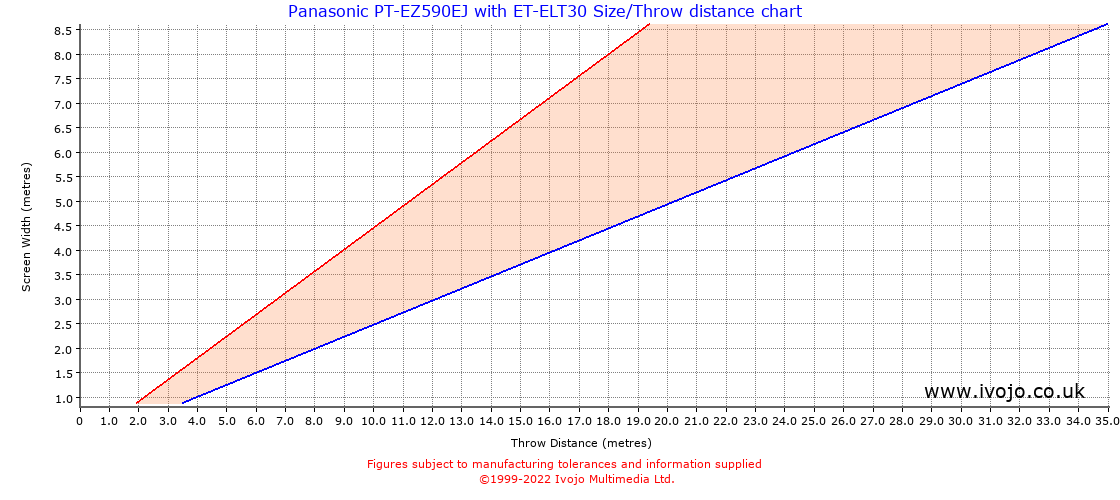

Throw Chard for Panasonic PT-EZ590EJ fitted with Panasonic ET-ELT30

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 1.12 2.03 0.14 sq.m. 3567.48
1.00 0.56 1.15 2.25 4.06 0.56 sq.m. 891.87
1.50 0.84 1.72 3.38 6.09 1.27 sq.m. 396.39
2.00 1.12 2.29 4.50 8.12 2.25 sq.m. 222.97
2.50 1.41 2.87 5.62 10.15 3.52 sq.m. 142.70
3.00 1.69 3.44 6.75 12.18 5.06 sq.m. 99.10
4.00 2.25 4.59 9.00 16.24 9.00 sq.m. 55.74
5.00 2.81 5.74 11.25 20.30 14.06 sq.m. 35.67

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.25 0.44
2 0.49 0.89
3 0.74 1.33
4 0.99 1.78
5 1.23 2.22
6 1.48 2.67
7 1.72 3.11
8 1.97 3.56

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
