Panasonic PT-DX100EK Projector &
Panasonic ET-DLE450 Projector Lens

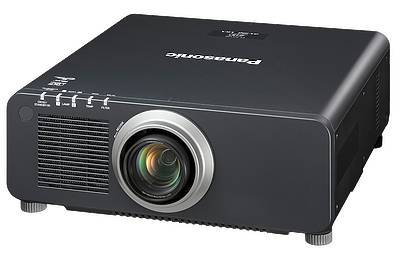

Panasonic PT-DX100EK projector lens image

Panasonic PT-DX100EK

  • 10000 ANSI Lumens
  • XGA 1024*768 Native Resolution
  • 10000:1 Contrast Ratio
  • 4000 hour lamp life (typical)
  • Lens Shift function
  • 18.3kg (40.3lb.)
  • 3 year with loan support (if available) warranty
  • Panasonic PT-DX100EK
Panasonic PT-DX100EK & Panasonic ET-DLE450
Panasonic ET-DLE450 projector lens image

Panasonic ET-DLE450
Suitable For

Panasonic ET-DLE450 Lens Only
£2499 (£2998.80 inc. VAT)
Availability: In stock

Select a Screen

 Min. Throw Max Throw Foot Lamberts
11.00m 17.80m 309.60
images/throw-chart/large/panasonic/panasonic-pt-dx100ek-et-dle450

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.38 0.62 2.75 4.45 0.19 sq.m. 4954.83
1.00 0.75 1.25 5.50 8.90 0.75 sq.m. 1238.71
1.50 1.12 1.88 8.25 13.35 1.69 sq.m. 550.54
2.00 1.50 2.50 11.00 17.80 3.00 sq.m. 309.68
2.50 1.88 3.12 13.75 22.25 4.69 sq.m. 198.19
3.00 2.25 3.75 16.50 26.70 6.75 sq.m. 137.63
4.00 3.00 5.00 22.00 35.60 12.00 sq.m. 77.42
5.00 3.75 6.25 27.50 44.50 18.75 sq.m. 49.55

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.11 0.18
2 0.22 0.36
3 0.34 0.55
4 0.45 0.73
5 0.56 0.91
6 0.67 1.09
7 0.79 1.27
8 0.90 1.45

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
