Panasonic PT-RZ690WEJ Projector &
Panasonic ET-DLE150 Projector Lens

Panasonic PT-RZ690WEJ projector lens image

Panasonic PT-RZ690WEJ

  • 6000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 10000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 21.3kg (47.0lb.)
  • 3 Year/20,000 Hours (Whichever first) warranty
  • Panasonic PT-RZ690WEJ
Panasonic PT-RZ690WEJ & Panasonic ET-DLE150
£10392 (£12470.40 inc. VAT)
Availability: In Stock
Panasonic ET-DLE150 projector lens image

Panasonic ET-DLE150
Suitable For

Panasonic ET-DLE150 Lens Only
£2390 (£2868.00 inc. VAT)
Availability: In stock

Select a Screen

 Min. Throw Max Throw Foot Lamberts
2.60m 0.38m 222.97

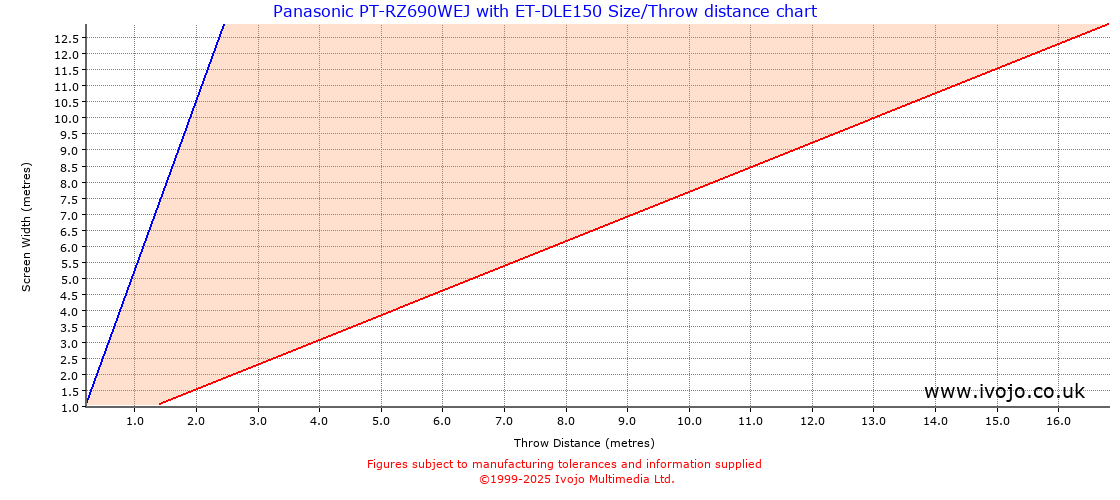

Throw Chard for Panasonic PT-RZ690WEJ fitted with Panasonic ET-DLE150

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.65 0.10 0.14 sq.m. 3963.86
1.00 0.56 1.15 1.30 0.19 0.56 sq.m. 990.97
1.50 0.84 1.72 1.95 0.29 1.27 sq.m. 440.43
2.00 1.12 2.29 2.60 0.38 2.25 sq.m. 247.74
2.50 1.41 2.87 3.25 0.47 3.52 sq.m. 158.55
3.00 1.69 3.44 3.90 0.57 5.06 sq.m. 110.11
4.00 2.25 4.59 5.20 0.76 9.00 sq.m. 61.94
5.00 2.81 5.74 6.50 0.95 14.06 sq.m. 39.64

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 5.26 0.77
2 10.53 1.54
3 15.79 2.31
4 21.05 3.08
5 26.32 3.85
6 31.58 4.62
7 36.84 5.38
8 42.11 6.15

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
