Panasonic PT-RZ690WEJ Projector &
Panasonic ET-DLE055 Projector Lens

Panasonic PT-RZ690WEJ projector lens image

Panasonic PT-RZ690WEJ

  • 6000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 10000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 21.3kg (47.0lb.)
  • 3 Year/20,000 Hours (Whichever first) warranty
  • Panasonic PT-RZ690WEJ
Panasonic PT-RZ690WEJ & Panasonic ET-DLE055
£11021 (£13225.20 inc. VAT)
Availability: Please Call
Panasonic ET-DLE055 projector lens image

Panasonic ET-DLE055
Suitable For

Panasonic ET-DLE055 Lens Only
£3019 (£3622.80 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
1.58m 1.58m 222.97

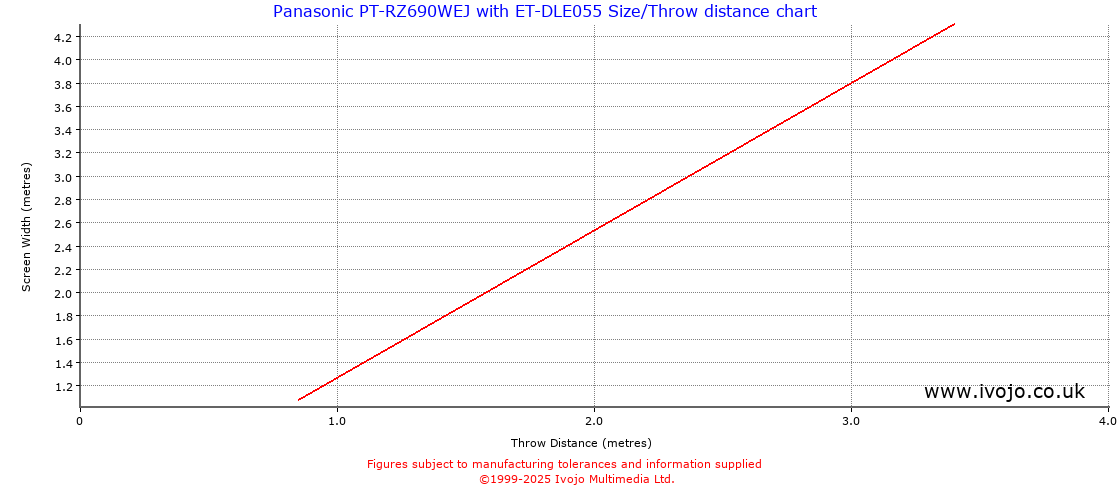

Throw Chard for Panasonic PT-RZ690WEJ fitted with Panasonic ET-DLE055

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.40 0.40 0.14 sq.m. 3963.86
1.00 0.56 1.15 0.79 0.79 0.56 sq.m. 990.97
1.50 0.84 1.72 1.19 1.19 1.27 sq.m. 440.43
2.00 1.12 2.29 1.58 1.58 2.25 sq.m. 247.74
2.50 1.41 2.87 1.98 1.98 3.52 sq.m. 158.55
3.00 1.69 3.44 2.37 2.37 5.06 sq.m. 110.11
4.00 2.25 4.59 3.16 3.16 9.00 sq.m. 61.94
5.00 2.81 5.74 3.95 3.95 14.06 sq.m. 39.64

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 1.27 1.27
2 2.53 2.53
3 3.80 3.80
4 5.06 5.06
5 6.33 6.33
6 7.59 7.59
7 8.86 8.86
8 10.13 10.13

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
