Panasonic PT-RZ24KEJ Projector &
Panasonic ET-D3LEW200 Projector Lens

Panasonic PT-RZ24KEJ projector lens image

Panasonic PT-RZ24KEJ

  • 20000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 25000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 35kg (77.2lb.)
  • 3 Year/20,000 Hours (Whichever first) warranty
  • Panasonic PT-RZ24KEJ
Panasonic PT-RZ24KEJ & Panasonic ET-D3LEW200
£79732 (£95678.40 inc. VAT)
Availability: Please Call
Panasonic ET-D3LEW200 projector lens image

Panasonic ET-D3LEW200
Suitable For

Panasonic ET-D3LEW200 Lens Only
£25975 (£31170.00 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
1.56m 2.04m 743.22

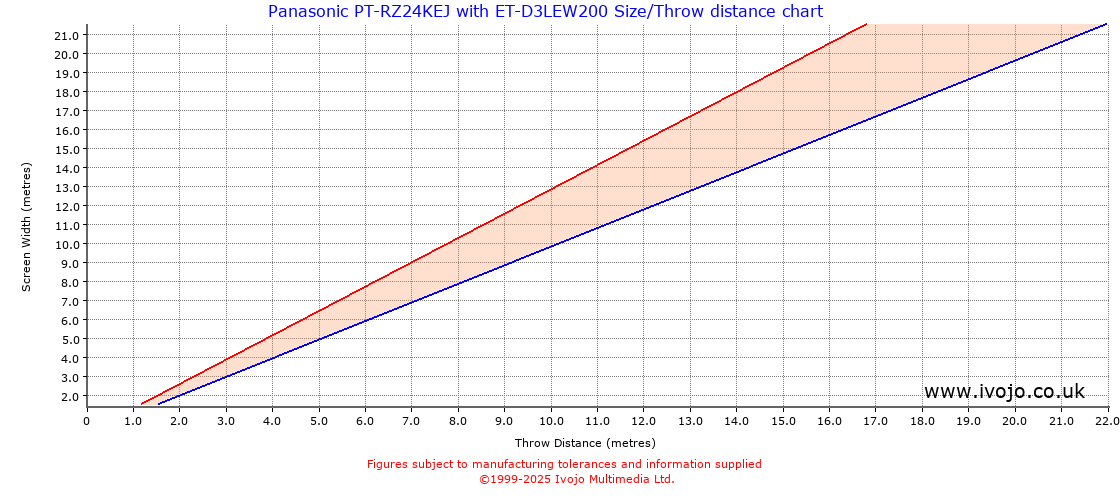

Throw Chard for Panasonic PT-RZ24KEJ fitted with Panasonic ET-D3LEW200

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.39 0.51 0.14 sq.m. 13212.88
1.00 0.56 1.15 0.78 1.02 0.56 sq.m. 3303.22
1.50 0.84 1.72 1.17 1.53 1.27 sq.m. 1468.10
2.00 1.12 2.29 1.56 2.04 2.25 sq.m. 825.80
2.50 1.41 2.87 1.95 2.55 3.52 sq.m. 528.52
3.00 1.69 3.44 2.34 3.06 5.06 sq.m. 367.02
4.00 2.25 4.59 3.12 4.08 9.00 sq.m. 206.45
5.00 2.81 5.74 3.90 5.10 14.06 sq.m. 132.13

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.98 1.28
2 1.96 2.56
3 2.94 3.85
4 3.92 5.13
5 4.90 6.41
6 5.88 7.69
7 6.86 8.97
8 7.84 10.26

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
