Panasonic PT-RZ24KEJ Projector &
Panasonic ET-D3LET40 Projector Lens

Panasonic PT-RZ24KEJ projector lens image

Panasonic PT-RZ24KEJ

  • 20000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 25000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 35kg (77.2lb.)
  • 3 Year/20,000 Hours (Whichever first) warranty
  • Panasonic PT-RZ24KEJ
Panasonic PT-RZ24KEJ & Panasonic ET-D3LET40
£61259 (£73510.80 inc. VAT)
Availability: Please Call
Panasonic ET-D3LET40 projector lens image

Panasonic ET-D3LET40
Suitable For

Panasonic ET-D3LET40 Lens Only
£7502 (£9002.40 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
11.08m 17.80m 743.22

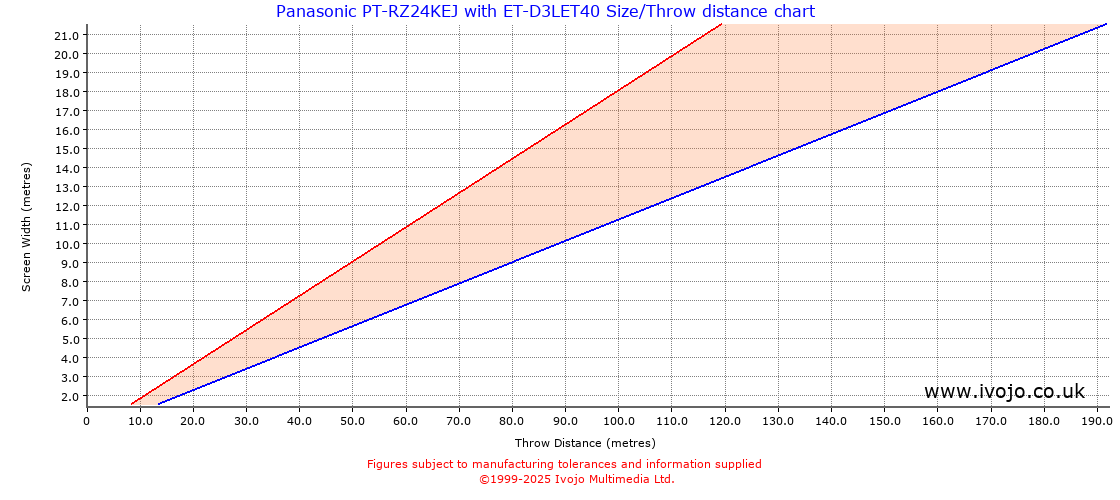

Throw Chard for Panasonic PT-RZ24KEJ fitted with Panasonic ET-D3LET40

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 2.77 4.45 0.14 sq.m. 13212.88
1.00 0.56 1.15 5.54 8.90 0.56 sq.m. 3303.22
1.50 0.84 1.72 8.31 13.35 1.27 sq.m. 1468.10
2.00 1.12 2.29 11.08 17.80 2.25 sq.m. 825.80
2.50 1.41 2.87 13.85 22.25 3.52 sq.m. 528.52
3.00 1.69 3.44 16.62 26.70 5.06 sq.m. 367.02
4.00 2.25 4.59 22.16 35.60 9.00 sq.m. 206.45
5.00 2.81 5.74 27.70 44.50 14.06 sq.m. 132.13

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.11 0.18
2 0.22 0.36
3 0.34 0.54
4 0.45 0.72
5 0.56 0.90
6 0.67 1.08
7 0.79 1.26
8 0.90 1.44

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
