Panasonic PT-RQ18KEJ Projector &
Panasonic ET-D3LES20 Projector Lens

Panasonic PT-RQ18KEJ projector lens image

Panasonic PT-RQ18KEJ

  • 16000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 25000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 35kg (77.2lb.)
  • 3 Year/20,000 Hours (Whichever first) warranty
  • Panasonic PT-RQ18KEJ
Panasonic PT-RQ18KEJ & Panasonic ET-D3LES20
£56035 (£67242.00 inc. VAT)
Availability: Please Call
Panasonic ET-D3LES20 projector lens image

Panasonic ET-D3LES20
Suitable For

Panasonic ET-D3LES20 Lens Only
£3907 (£4688.40 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
4.00m 5.80m 594.58

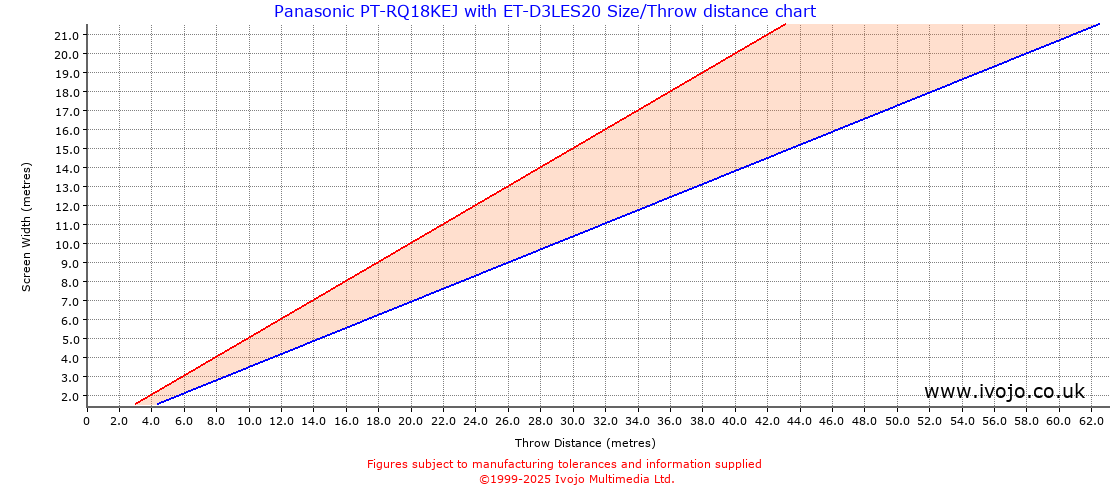

Throw Chard for Panasonic PT-RQ18KEJ fitted with Panasonic ET-D3LES20

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 1.00 1.45 0.14 sq.m. 10570.30
1.00 0.56 1.15 2.00 2.90 0.56 sq.m. 2642.58
1.50 0.84 1.72 3.00 4.35 1.27 sq.m. 1174.48
2.00 1.12 2.29 4.00 5.80 2.25 sq.m. 660.64
2.50 1.41 2.87 5.00 7.25 3.52 sq.m. 422.81
3.00 1.69 3.44 6.00 8.70 5.06 sq.m. 293.62
4.00 2.25 4.59 8.00 11.60 9.00 sq.m. 165.16
5.00 2.81 5.74 10.00 14.50 14.06 sq.m. 105.70

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.34 0.50
2 0.69 1.00
3 1.03 1.50
4 1.38 2.00
5 1.72 2.50
6 2.07 3.00
7 2.41 3.50
8 2.76 4.00

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
