NEC PA804UL WH Projector &
NEC NP44ML-PA4 Projector Lens
NEC PA804UL WH
- 8200 ANSI Lumens
- WUXGA 1920*1200 Native Resolution
- 3000000:1 Contrast Ratio
- 20000 hour lamp life (typical)
- Lens Shift function
- 24.1kg (53.1lb.)
- 3 year pan European warranty
- NEC PA804UL WH
NEC PA804UL WH & NEC NP44ML-PA4
£9439 (£11326.80 inc. VAT)
Availability: 7-10 Days
Availability: 7-10 Days
NEC NP44ML-PA4
Suitable For
NEC NP44ML-PA4 Lens Only
£4033 (£4839.60 inc. VAT)
Availability: 3-5 days
Availability: 3-5 days
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
|
0.64m | 0.64m | 304.72 |
Screen Size Table (Figures in metres)
| Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
| 0.50 | 0.28 | 0.57 | 0.16 | 0.16 | 0.14 sq.m. | 5417.28 |
| 1.00 | 0.56 | 1.15 | 0.32 | 0.32 | 0.56 sq.m. | 1354.32 |
| 1.50 | 0.84 | 1.72 | 0.48 | 0.48 | 1.27 sq.m. | 601.92 |
| 2.00 | 1.12 | 2.29 | 0.64 | 0.64 | 2.25 sq.m. | 338.58 |
| 2.50 | 1.41 | 2.87 | 0.80 | 0.80 | 3.52 sq.m. | 216.69 |
| 3.00 | 1.69 | 3.44 | 0.96 | 0.96 | 5.06 sq.m. | 150.48 |
| 4.00 | 2.25 | 4.59 | 1.28 | 1.28 | 9.00 sq.m. | 84.64 |
| 5.00 | 2.81 | 5.74 | 1.60 | 1.60 | 14.06 sq.m. | 54.17 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

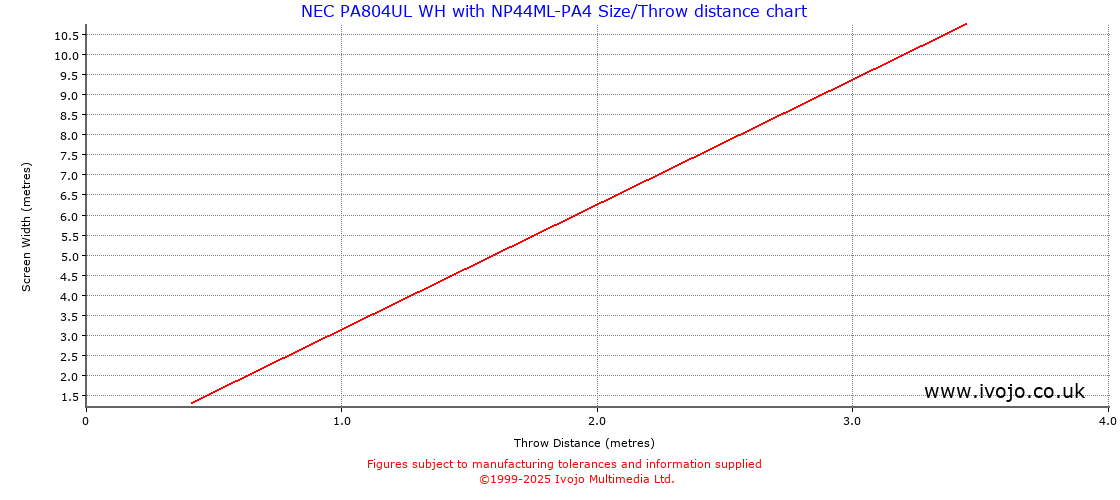

Throw Distance Table (Figures in metres)
| Distance | Minimum Width | Maximum Width |
| 1 | 3.12 | 3.12 |
| 2 | 6.25 | 6.25 |
| 3 | 9.38 | 9.38 |
| 4 | 12.50 | 12.50 |
| 5 | 15.62 | 15.62 |
| 6 | 18.75 | 18.75 |
| 7 | 21.88 | 21.88 |
| 8 | 25.00 | 25.00 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
